  2. 30/40/50 MVA, Pri 138000x69000D, Sec 13800Yx7965, GE PROLEC,

30/40/50 MVA, Pri 138000x69000D, Sec 13800Yx7965, GE PROLEC,

https://belyeapower.redstormlabs.com/web/image/product.template/33690/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 525,000.00 525000.0 USD $ 525,000.00

$ 525,000.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 044085
    Request Quote

    Full Product Description

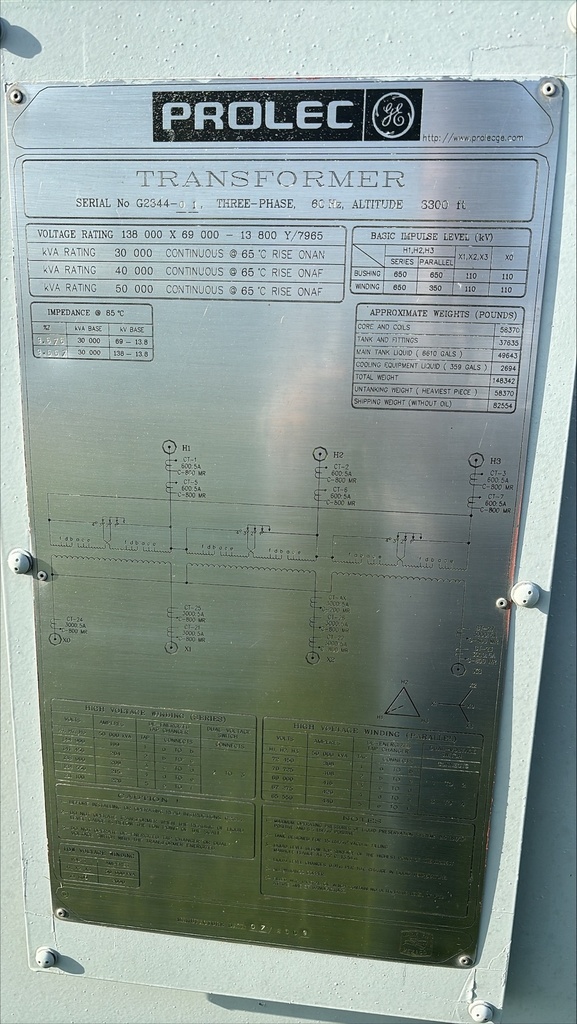

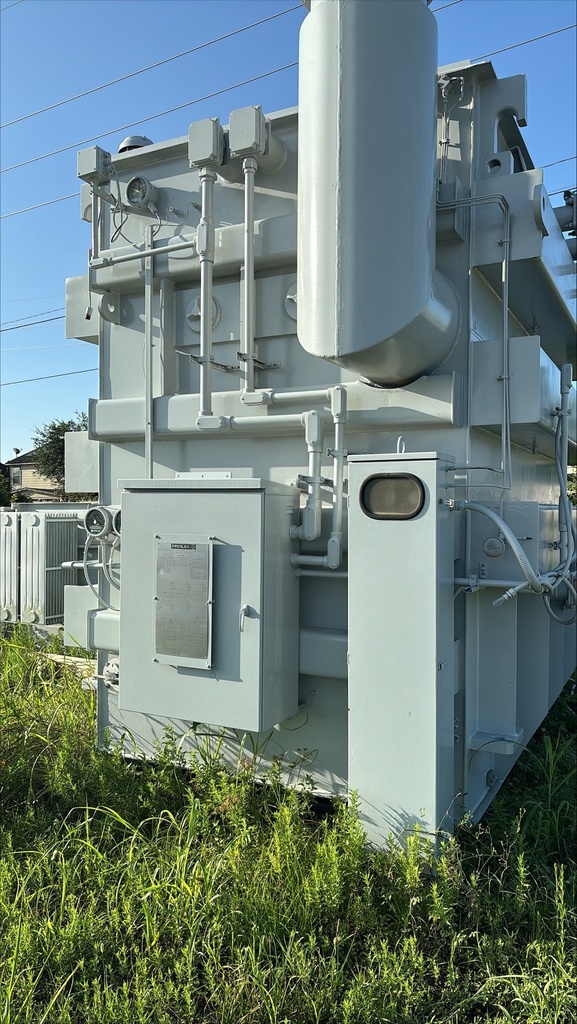

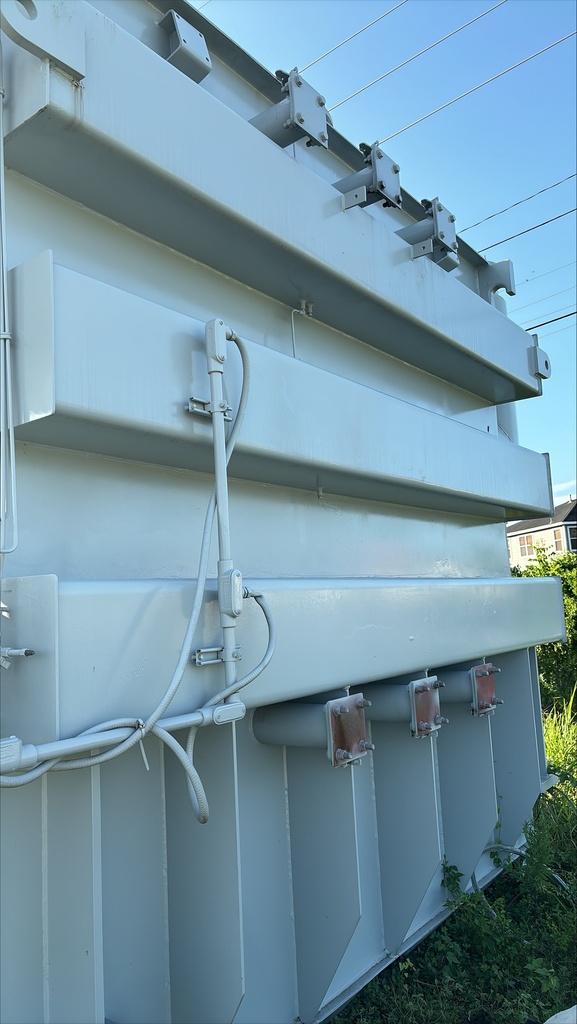

    ONE (1) 30/40/50 MVA GE PROLEC SUBSTATION TRANSFORMER
    TOP / TOP BUSHINGS, 3-PHASE, 60 HERTZ,
    9.676 IMP., 65 DEG. C RISE, COPPER WINDINGS
    C-800 MRCT'S, LV 3000:5A, HV SIDE 600:5A

    HV 138000D/69000 BIL: 650KV
    LV 13800Y/7965 BIL: 110KV

    HV TAPS (SERIES) 144900/141450/138000/134550/131100
    HV TAPS (PARALLEL) 72450/70725/69000/67275/65550

    CORE AND COILS: 58370 LBS.
    TANK AND FITTINGS: 37635 LBS.
    MAIN TANK LIQUID: 49643 LBS. (6610 GALS)
    COOLING EQUIP LIQID: 2694 LBS. (359 GALS)
    TOTAL WEIGHT: 148342 LBS.
    SHIPPING WEIGHT: 82554 LBS. (WITHOUT OIL)
