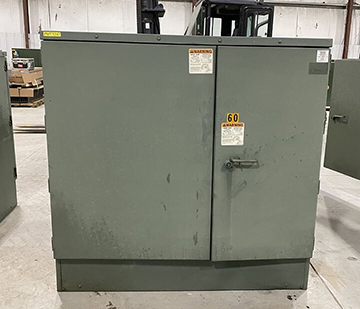

750 KVA, Pri 22860GRDY/13200, Sec 208Y/120, 2007, HOWARD, DEAD FRONT, LOOP FEED
PADMOUNT TRANSFORMER
Product Number:
044070
Full Product Description
JVT-3839:

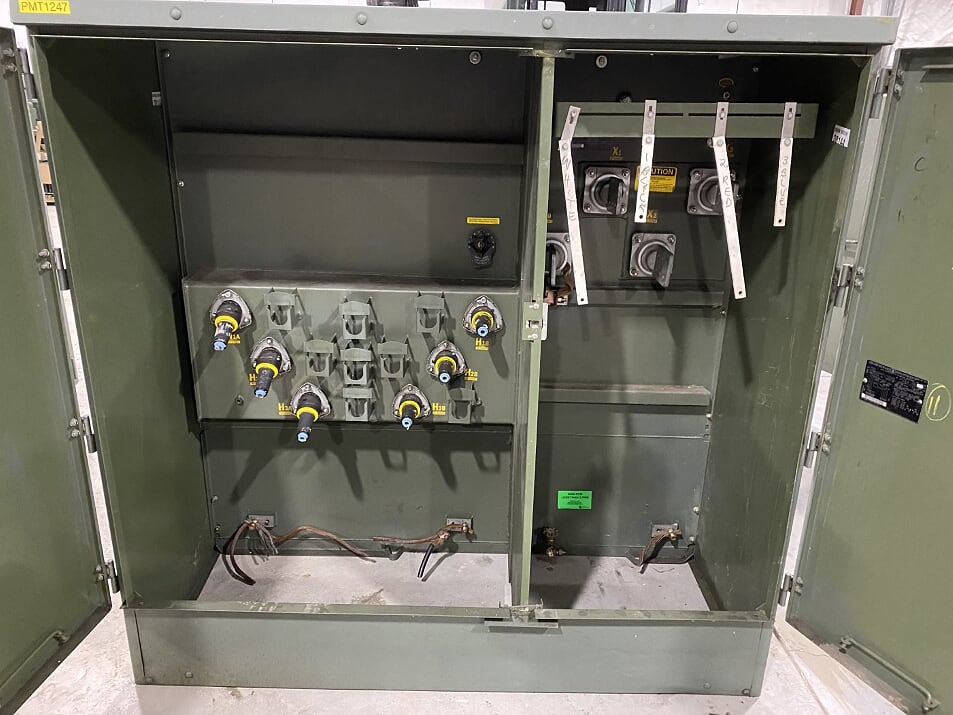

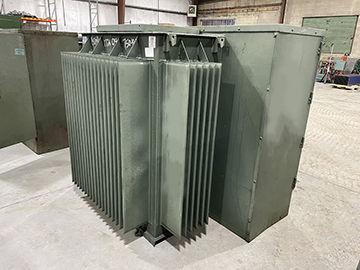

ONE (1) 750 KVA HOWARD COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA, 65 DEG. C RISE, 5.5% IMPEDANCE, DEAD FRONT,
LOOP FEED, DRAIN & SAMPLE VALVE, PRESSURE RELIEF VALVE, MFG. 2007,
S/N 4295583407
HIGH VOLTAGE: 22860GRDY/13200 BIL: 125 KV
LOW VOLTAGE: 208/120 BIL: 30 KV
TAPS: 24100-23500-22860-22300-21700
TOTAL WEIGHT: 7,439 LBS.
CORE & COILS: 2,682 LBS.
TANK & FIT.: 2,334 LBS.
OIL: 2,423 LBS. (323 GALS.)
DIMENSIONS: 71"H X 79.8"W X 67.2"D
