Full Product Description
T-5921:

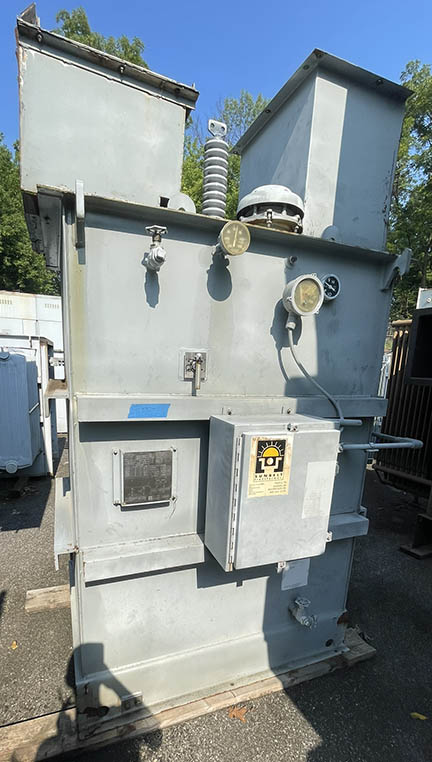

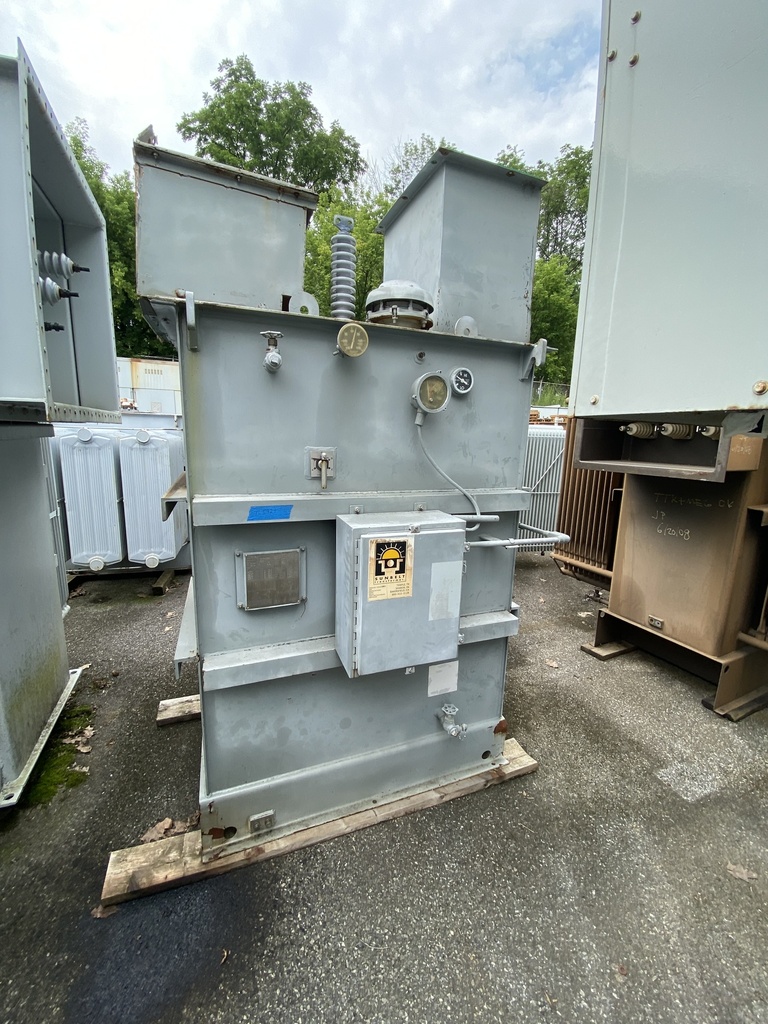

ONE (1) 1500/1932 KVA SUNBELT SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS OA/FA, 55/65 DEG. C RISE, 5.81% IMPEDANCE, COPPER WINDINGS,
LIQUID LEVEL GAUGE, VACUUM PRESSURE GAUGE, TOP MOUNTED BUSHINGS IN
AIR TERMINAL CHAMBERS

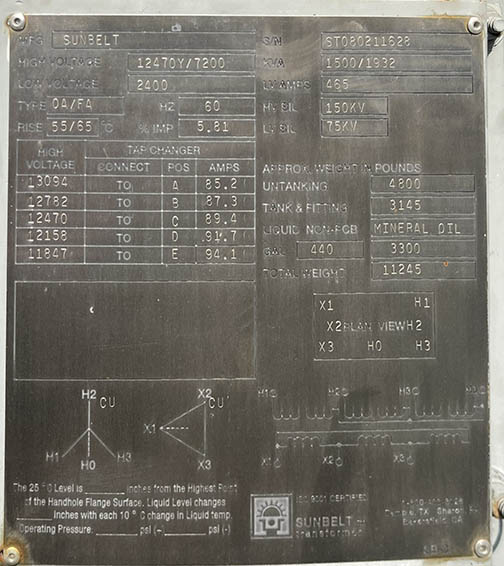

HIGH VOLTAGE: 12470Y/7200 BIL: 150 KV
LOW VOLTAGE: 2400 DELTA BIL: 75 KV
TAPS: 13094-12782-12470-12158-11847
TOTAL WEIGHT: 11,245 LBS.
CORE & COILS: 4,800 LBS.
TANK & FIT.: 3,145 LBS.
OIL: 3,300 LBS. (440 GALS.)
DIMENSIONS: 104 3/4"H X 63"W X 72"L
76" TO THE TOP OF THE TANK
