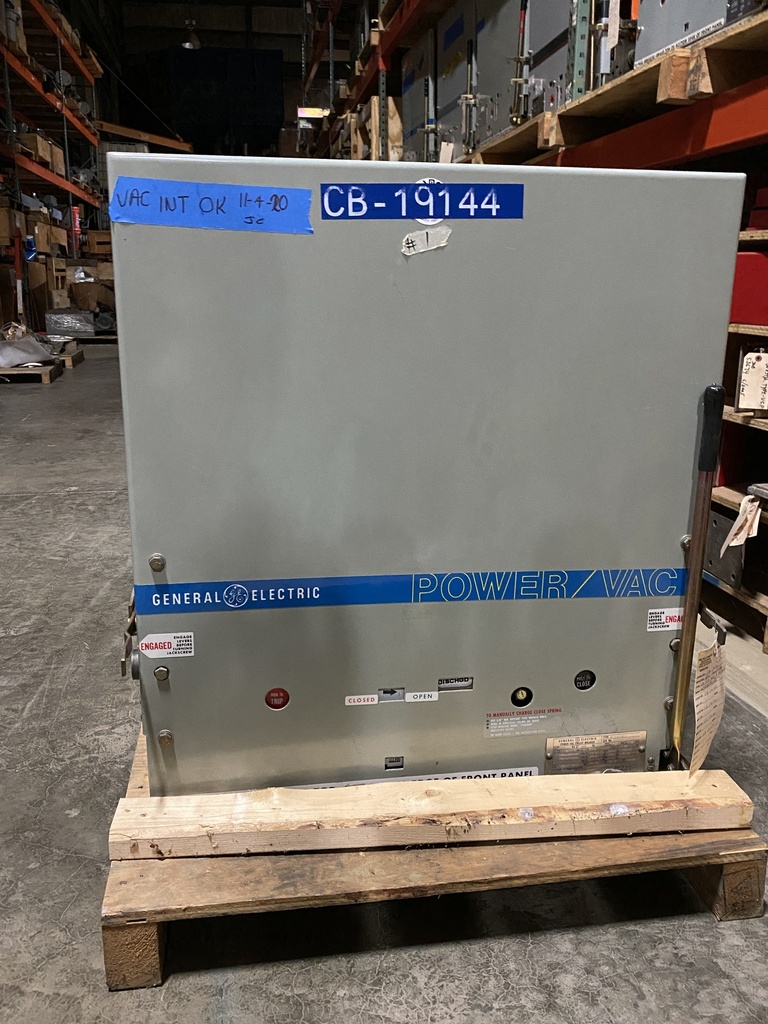

3000 Amp, GENERAL ELECTRIC, VB 13.8-750-3, 15 KV, E/O, D/O, 125 VDC, ML-17 MECH.
VACUUM BREAKER
Product Number:
044011
Full Product Description
CB-19144:

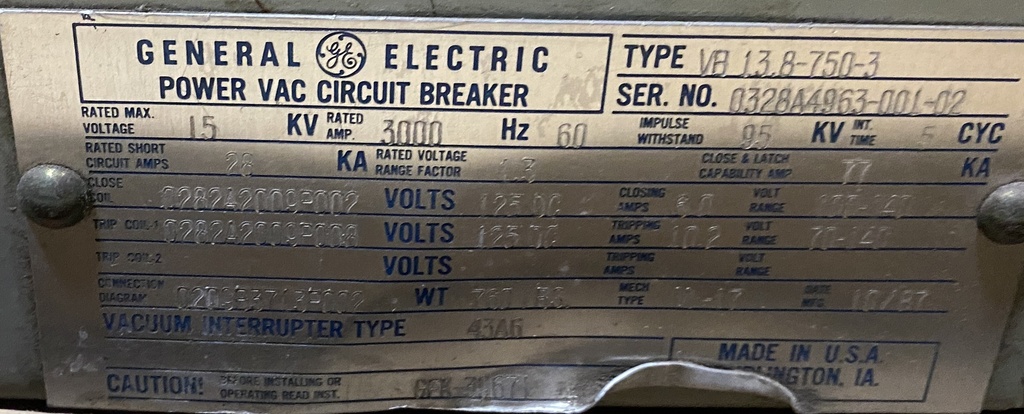

ONE (1) 3000 AMP GENERAL ELECTRIC VACUUM CIRCUIT BREAKER
TYPE VB 13.8-750-3
13800 VOLT
15 KV MAX.
60 HERTZ
95 KV BIL
5 CYCLE INTERRUPT
28 KA SHORT CIRCUIT
1.3 RANGE VOLTAGE FACTOR "K"
77 KA CLOSE & LATCH
125 VDC CLOSE & TRIP
CONNECTION DIAGRAM: 0209B3713P002
43A6 VACUUM INTERRUPTER
ML-17 MECHANISM
INSTRUCTION BOOK GEK-39671
WEIGHT: 760 LBS
