1200 Amp, GENERAL ELECTRIC, VB1 71.2-500-1, 8.25 KV, 125 VDC CLOSE & TRIP
VACUUM BREAKER
Product Number:
044006
Full Product Description
CB-19126

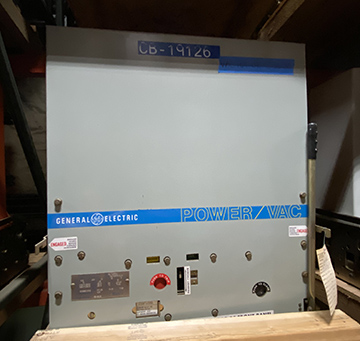

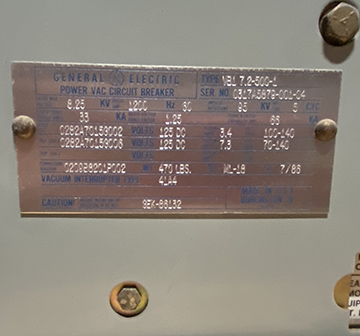

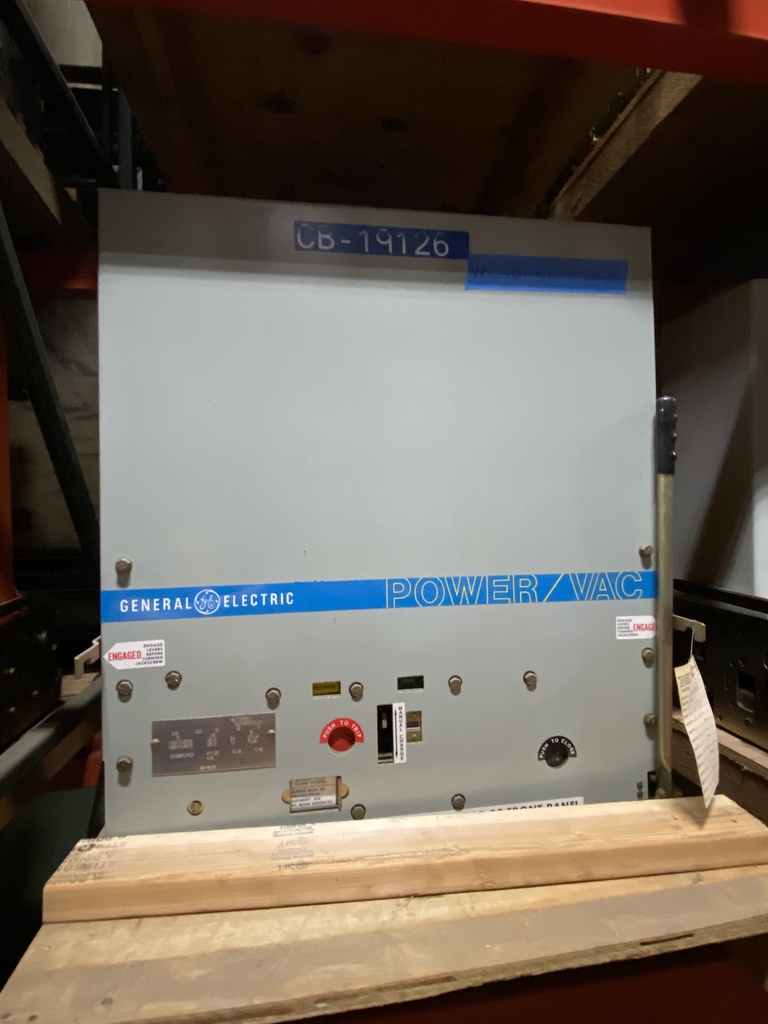

ONE (1) 1200 AMP GENERAL ELECTRIC VACUUM BREAKER
TYPE VB1 7.2-500-1
8.25 KV MAX.
60 HERTZ
95 KV BIL
5 CYCLE INTERRUPT
33 KA SHORT CIRCUIT INTERRUPT
1.25 VOLTAGE K FACTOR
66 KA CLOSE & LATCH
125 VDC CLOSE & TRIP
CONNECTION DIAGRAM: 0209B8201P002
ML-18 OPERATING MECHANISM
WEIGHT: 470 LBS
ELECTRICALLY OPERATED
41A4 INTERRUPTER TYPE
IB: GEK-86132
