10/11.2/12.5/14 MVA, Pri 115000Y/66400, Sec 12470Y/7200, DELTA STAR, LTC

JVT-3843

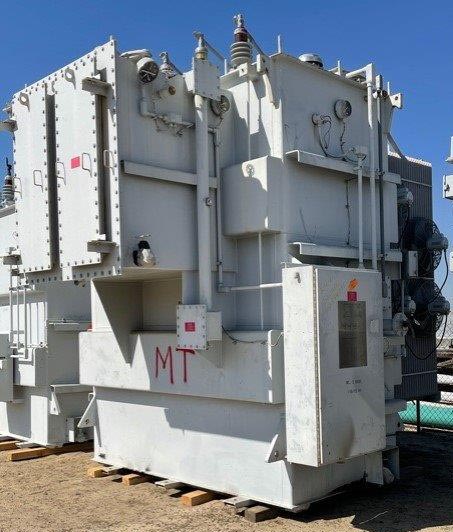

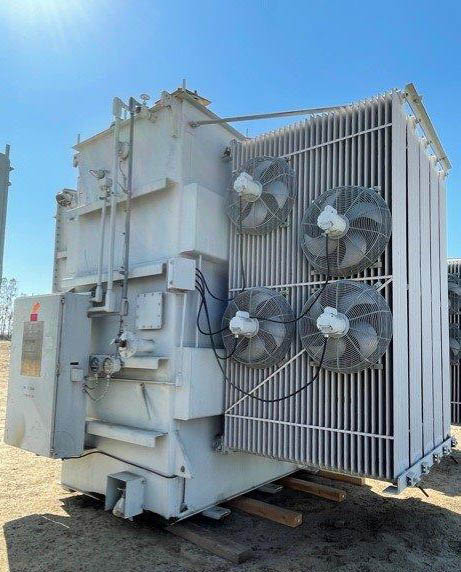

ONE (1) 10000/11200/12500/14000 KVA DELTA STAR LOAD TAP CHANGING TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 7.1% IMPEDANCE,
SIEMENS TYPE TLH-21 LOAD TAP CHANGER, COPPER WINDINGS

HIGH VOLTAGE: 115000Y/66400 BIL: 450 KV
LOW VOLTAGE: 12470Y/7200 BIL: 110 KV
TERTIARY: 7200 DELTA BIL: 110 KV
HV TAPS: 120750-117875-115000-112125-109250
LV TAPS: 13715-11225 IN 16 STEPS

TOTAL WEIGHT: 106,700 LBS.
CORE & COILS: 41,500 LBS.
TANK & FIT.: 29,200 LBS.
RADIATOR OIL: 3,000 LBS. (400 GALS.)
MAIN TANK OIL: 27,750 LBS. (3,700 GALS.)
LTC OIL: 5,250 LBS. (700 GALS.)
