1200 Amp, WESTINGHOUSE, 150VCP-W500, 15 KV, 48 VDC CLOSE/TRIP/MOTOR
VACUUM BREAKER
Product Number:
043945
Full Product Description

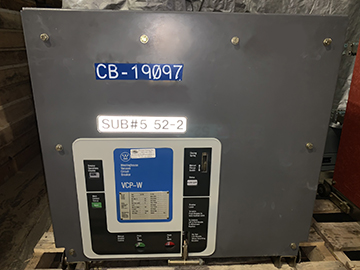

CB-19097:

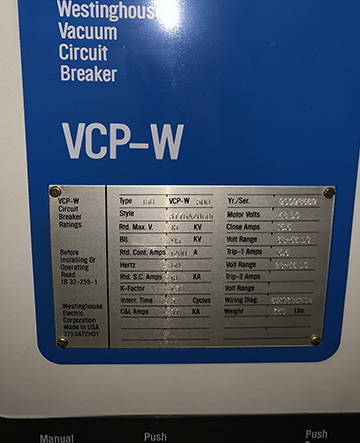

ONE (1) 1200 AMP WESTINGHOUSE VACUUM CIRCUIT BREAKER
TYPE 150VCP-W500
15 KV
STYLE 3776A20G01
95 KV BIL
18 KA SHORT CIRCUIT
1.30 VOLTAGE RANGE FACTOR "K"
5 CYCLE INTERRUPT
37 KA CLOSE & LATCH
48 VDC CLOSE & TRIP
48 VDC MOTOR
350 LBS.
WIRING DIAGRAM 691C386H04
INSTRUCTION BOOK #32-255-1
MFG. 1990
S/N 098562
118 OPERATIONS
ONE (1) 1200 AMP WESTINGHOUSE VACUUM CIRCUIT BREAKER
TYPE 150VCP-W500
15 KV
STYLE 3776A20G01
95 KV BIL
18 KA SHORT CIRCUIT
1.30 VOLTAGE RANGE FACTOR "K"
5 CYCLE INTERRUPT
37 KA CLOSE & LATCH
48 VDC CLOSE & TRIP
48 VDC MOTOR
350 LBS.
WIRING DIAGRAM 691C386H04
INSTRUCTION BOOK #32-255-1
MFG. 1990
S/N 098562
118 OPERATIONS
