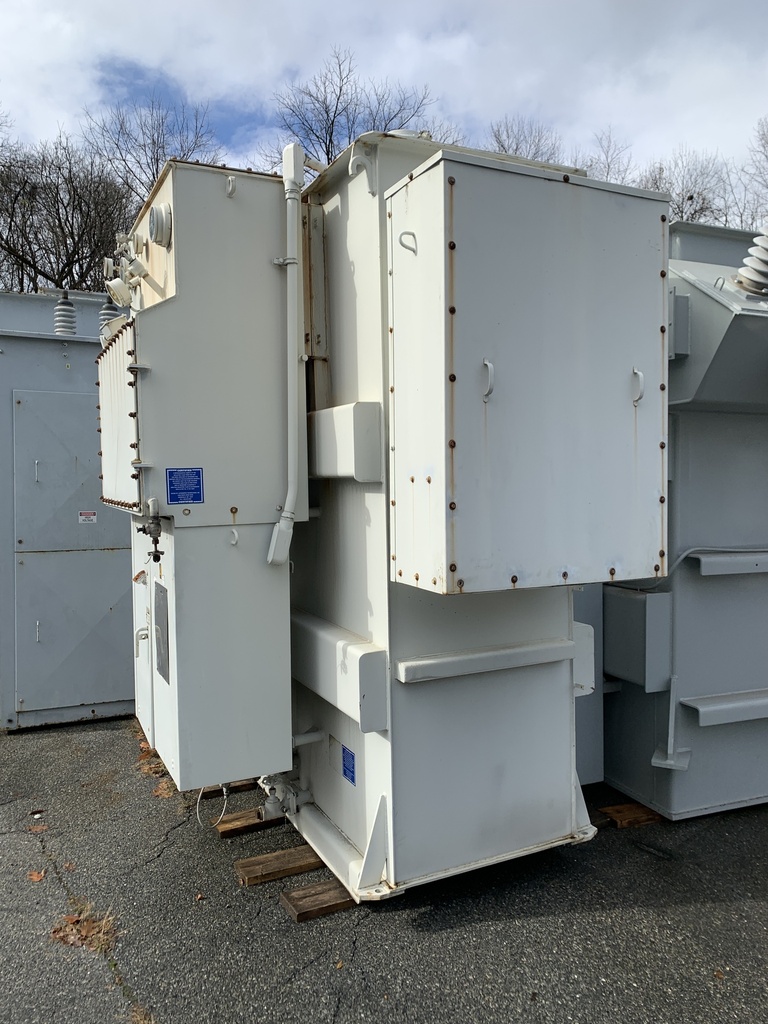

4000/5000/5600 KVA, Pri 33000 D, Sec 4160Y/2400, GENERAL ELECTRIC, COPPER, LTC
LOAD TAP CHANGING TRANSFORMER
Product Number:
043928
Full Product Description
T-5924:
ONE (1) 4000/5000/5600 KVA GENERAL ELECTRIC LOAD TAP CHANGING TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 6.02% IMPEDANCE,
COPPER WINDINGS, 6 X 1200:5 LV MRCT'S, 3 X 1200:5 HV MRCT'S, DRAIN &
SAMPLE VALVE, LIQUID LEVEL GAUGE, PRESSURE VACUUM GAUGE, FAULT
PRESSURE RELAY
HIGH VOLTAGE: 33000 DELTA BIL: 200 KV
LOW VOLTAGE: 4160Y/2400 BIL: 75 KV
HV TAPS: 34650-33825-33000-32175-31350
LV TAPS: 4578 TO 3744 IN 32 STEPS
TOTAL WEIGHT: 39,010 LBS.
CORE & COILS: 17,000 LBS.
TANK & FIT.: 11,350 LBS.
MAIN TANK OIL: 9,500 LBS. (1,275 GALS.)
LTC OIL: 1,160 LBS. (155 GALS.)
