7500/9375 KVA, Pri 13800 D, Sec 4160Y/2400, GENERAL ELECTRIC, SILICONE, ALUMINUM
SUBSTATION TRANSFORMER
Product Number:
043922
Full Product Description
T-5927:

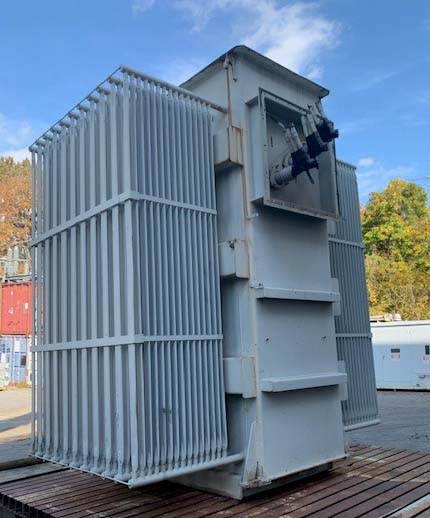

ONE (1) 7500/9375 KVA GENERAL ELECTRIC SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FFA, 65 DEG. C RISE, 5.96% IMPEDANCE, ALUMINUM
WINDINGS, LIQUID LEVEL GAUGE, WINDING TEMPERATURE GAUGE, PRESSURE
VACUUM GAUGE, QUALITROL FAULT PRESSURE RELAY, S/N M160341
HIGH VOLTAGE: 13800 DELTA BIL:
LOW VOLTAGE: 4160Y/2400 BIL:
TAPS: 14400-14410-13800-13500-13200
TOTAL WEIGHT: 32,200 LBS.
CORE & COILS: 15,850 LBS.
TANK & FIT.: 7,950 LBS.
SILICONE: 8,400 LBS. (1,050 GALS.)
DIMENSIONS: 130"H X 111"L X 115"W
ONE (1) 7500/9375 KVA GENERAL ELECTRIC SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FFA, 65 DEG. C RISE, 5.96% IMPEDANCE, ALUMINUM
WINDINGS, LIQUID LEVEL GAUGE, WINDING TEMPERATURE GAUGE, PRESSURE
VACUUM GAUGE, QUALITROL FAULT PRESSURE RELAY, S/N M160341
HIGH VOLTAGE: 13800 DELTA BIL:
LOW VOLTAGE: 4160Y/2400 BIL:
TAPS: 14400-14410-13800-13500-13200
TOTAL WEIGHT: 32,200 LBS.
CORE & COILS: 15,850 LBS.
TANK & FIT.: 7,950 LBS.
SILICONE: 8,400 LBS. (1,050 GALS.)
DIMENSIONS: 130"H X 111"L X 115"W
