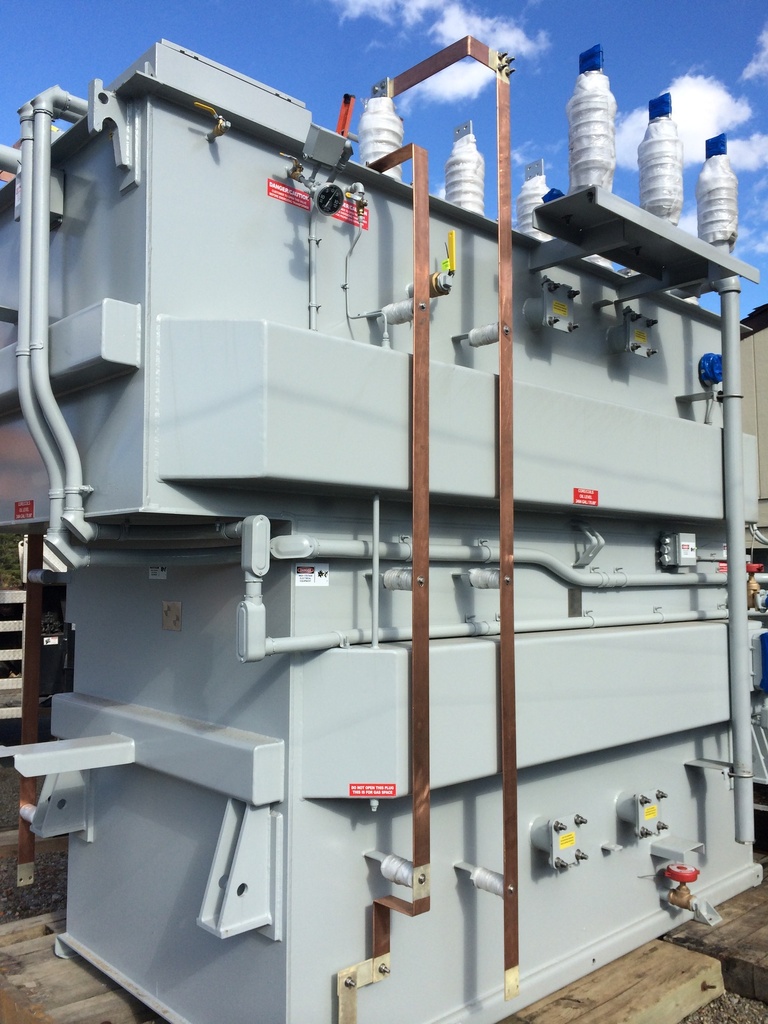

12088/18000 KVA, Pri 115000GRDY/66395, Sec 34500GRDY/19919, 2015, VIRGINIA:1

ONE (1) 12088/13538/16077/18000 KVA VIRGINIA SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS ONAN/ONAF, 55/65 DEG. C RISE, 8.81% IMPEDANCE, COPPER
WINDINGS, 3 C 300:5 HV MRCT'S, 1 X 1200:5 HV NEUTRAL MRCT, 9 X 1200:5
LV MRCT'S, 1 X 1200:5 XO MRCT, 2 X 1200:5 UNLOADED BURIED TERTIARY
MRCT'S, 3 X 76 KV MCOV HV LIGHTNING ARRESTERS, 3 X 24.4 KV MCOV LV
LIGHTNING ARRESTERS, TOP X TOP BUSHINGS, REMOVAL RADIATORS, MFG. 2015

HIGH VOLTAGE: 115000 GRDY/66395 BIL: 550 KV
LOW VOLTAGE: 34500 GRDY/19910 BIL: 200 KV
TAPS: 120750-117875-115000-112125-109250

TOTAL WEIGHT: 89,100 LBS.
CORE & COIL: 30,530 LBS.
TANK & FIT.: 27,090 LBS.
OIL: 28,050 LBS. (3,740 GALS.)
