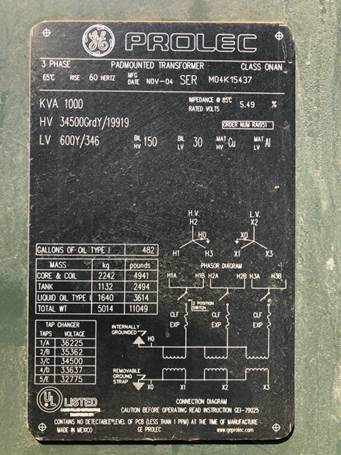

1000 KVA, Pri 34500GRDY/19919, Sec 600Y/346, 2004, GE PROLEC

ONE (1) 1000 KVA GE PROLEC COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS ONAN, 65 DEG. C RISE, 5.49% IMPEDANCE, HV COPPER, LV
ALUMINUM, CLF FUSES, REMOVABLE GROUND STRAP, UL LISTED

HIGH VOLTAGE: 34500GRDY/19919 BIL: 150 KV
LOW VOLTAGE: 600Y/346 BIL: 30 KV
TAPS: 36225-35362-34500-33637-32775

TOTAL WEIGHT: 11,049 LBS.
CORE & COILS: 4,941 LBS.
TANK & FIT.: 2,494 LBS.
OIL: 3,614 LBS. (482 GALS.)
