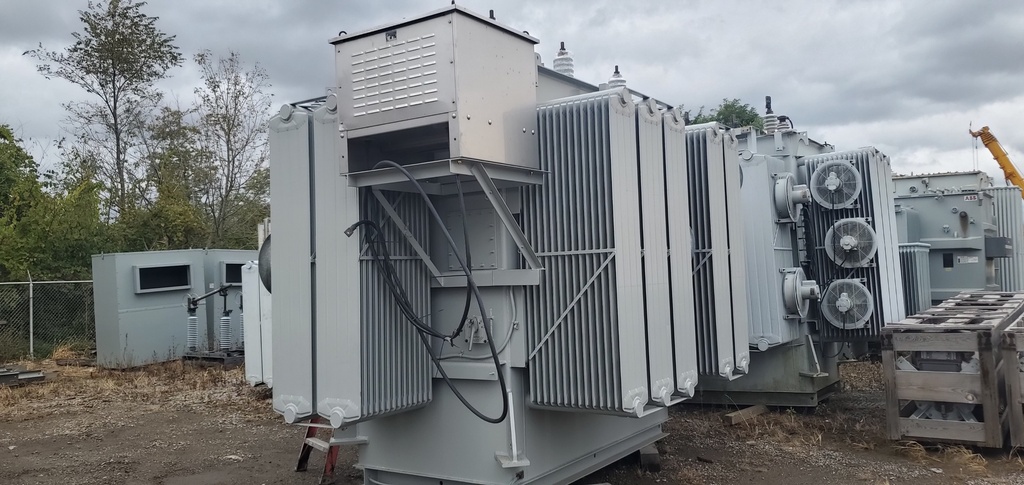

13330/24880 KVA, Pri 13800 D, Sec 4160Y/2400, SD MYERS, R-TEMP, COPPER WINDINGS
SUBSTATION TRANSFORMER
Product Number:
043891
Full Product Description
JVT-3825:
ONE (1) 13330/14930/17730/19860/22220/24800 SD MYERS SUBSTATION TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA/FA/FA, 55/65 DEG. C RISE, 7.21% IMPEDANCE,
COPPER WINDINGS, LIQUID LEVEL GAUGE, LIQUID TEMPERATURE GAUGE,
PRESSURE VACUUM GAUGE, PRESSURE RELIEF VALVE, DRAIN & SAMPLE VALVE,
CONTROL BOX, NITROGEN BOTTLE, R-TEMP FLUID, 3 X 1200:5 HV MRCT'S C400,
3 X 4000:5 LV MRCT'S C800, 1 X 600:5 XO MRCT'S C200
HIGH VOLTAGE: 13800 DELTA BIL: 110 KV
LOW VOLTAGE: 4160Y/2400 BIL: 75 KV
TAPS: 14490-14145-13800-13455-13110
TOTAL WEIGHT: 64,600 LBS.
CORE & COILS: 29,240 LBS.
TANK & FIT.: 17,000 LBS.
R-TEMP: 18,360 LBS. (2,481 GALS.)
ONE (1) 13330/14930/17730/19860/22220/24800 SD MYERS SUBSTATION TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA/FA/FA, 55/65 DEG. C RISE, 7.21% IMPEDANCE,
COPPER WINDINGS, LIQUID LEVEL GAUGE, LIQUID TEMPERATURE GAUGE,
PRESSURE VACUUM GAUGE, PRESSURE RELIEF VALVE, DRAIN & SAMPLE VALVE,
CONTROL BOX, NITROGEN BOTTLE, R-TEMP FLUID, 3 X 1200:5 HV MRCT'S C400,
3 X 4000:5 LV MRCT'S C800, 1 X 600:5 XO MRCT'S C200
HIGH VOLTAGE: 13800 DELTA BIL: 110 KV
LOW VOLTAGE: 4160Y/2400 BIL: 75 KV
TAPS: 14490-14145-13800-13455-13110
TOTAL WEIGHT: 64,600 LBS.
CORE & COILS: 29,240 LBS.
TANK & FIT.: 17,000 LBS.
R-TEMP: 18,360 LBS. (2,481 GALS.)
