500 KVA, Pri 480 D, Sec 208Y/120, 1997, SQUARE D, OUTDOOR, ALUMINUM:1
OUTDOOR DRY TYPE TRANSFORMER
Product Number:
042773
Full Product Description

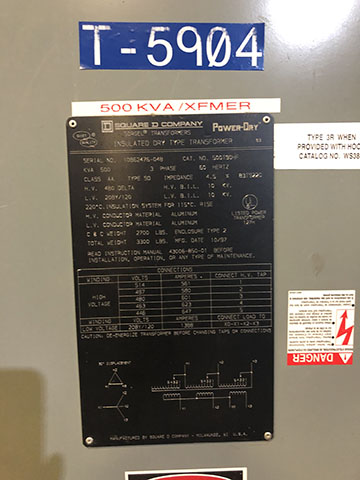

T-5904:
ONE (1) 500 KVA SQUARE D SORGEL OUTDOOR DRY TYPE TRANSFORMER, CAT. #500T90HF,
3 PHASE, 60 HERTZ, CLASS AA, 220 DEG. C INSULATION, 115 DEG. C RISE,
4.5% IMPEDANCE, ALUMINUM WINDINGS, UL LISTED, INSTRUCTION MANUAL
43006-850-01, MFG. 1997, S/N 10862476-048
HIGH VOLTAGE: 480 DELTA BIL: 10 KV
LOW VOLTAGE: 208Y/120 BIL: 10 KV
TAPS: 514-497-480-463-446
TOTAL WEIGHT: 3,300 LBS.
CORE & COILS: 2,700 LBS.
OVERALL DIMENSIONS: 74"H X 56" X 41"D

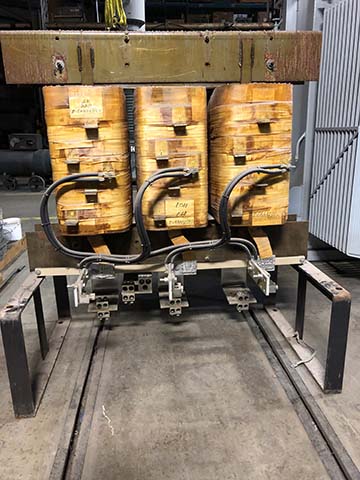

CORE & COIL DIMENSIONS: 59.75"H X 54"W X 34.25"D
ONE (1) 500 KVA SQUARE D SORGEL OUTDOOR DRY TYPE TRANSFORMER, CAT. #500T90HF,
3 PHASE, 60 HERTZ, CLASS AA, 220 DEG. C INSULATION, 115 DEG. C RISE,
4.5% IMPEDANCE, ALUMINUM WINDINGS, UL LISTED, INSTRUCTION MANUAL
43006-850-01, MFG. 1997, S/N 10862476-048
HIGH VOLTAGE: 480 DELTA BIL: 10 KV
LOW VOLTAGE: 208Y/120 BIL: 10 KV
TAPS: 514-497-480-463-446
TOTAL WEIGHT: 3,300 LBS.
CORE & COILS: 2,700 LBS.
OVERALL DIMENSIONS: 74"H X 56" X 41"D
CORE & COIL DIMENSIONS: 59.75"H X 54"W X 34.25"D
