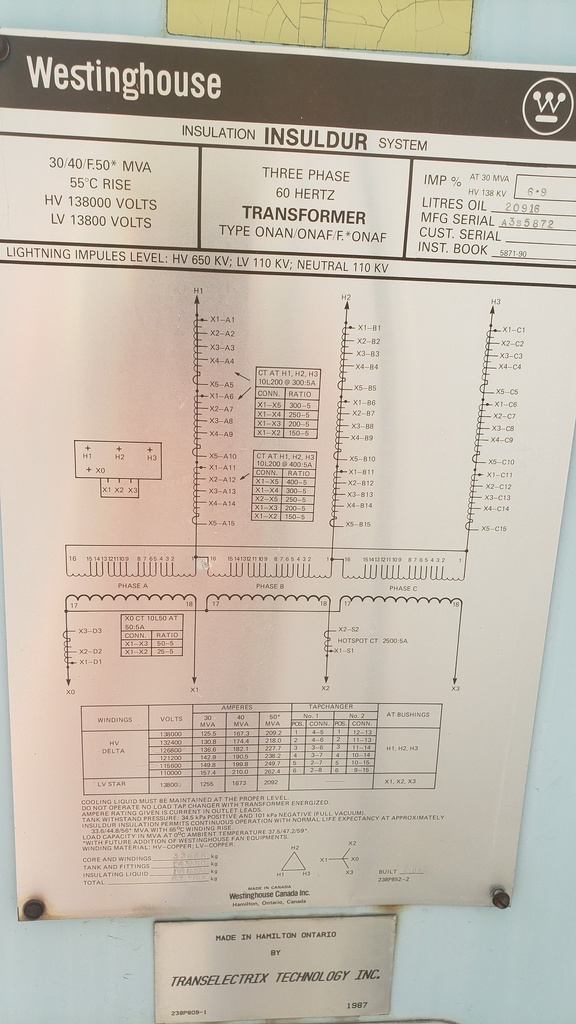

30000/50000 KVA, Pri 138000 D, Sec 13800 Y, 1987, WESTINGHOUSE:2

ONE (1) 30/40/F.50* MVA WESTINGHOUSE SUBSTATION TRANSFORMER, 3 PHASE, 60
HERTZ, CLASS ONAN/ONAF/F.*ONAF, 55 DEG. C RISE, 6.9% IMPEDANCE,
COPPER WINDINGS, 6 X 300:5 HV MRCT'S 10L200, 3 X 400:5 HV MRCT'S
10L200, 1 X 50:5 LV NEUTRAL CT 10L50, 1 X 2500:5 HOTSPOT CT

HIGH VOLTAGE: 138000 DELTA BIL: 650 KV
LOW VOLTAGE: 13800 WYE BIL: 110 KV
TAPS: 138000-132400-126800-121200-115600-110000

TOTAL WEIGHT: 148,523 LBS.
CORE & COILS: 72,501 LBS.
TANK & FIT.: 36,001 LBS.
OIL: 40,021 LBS. (5,525 GALS.)
