  2. 15000/28000 KVA, Pri 115000 D, Sec 12470GRDY/7200, WAUKESHA, 2000, COPPER:1

15000/28000 KVA, Pri 115000 D, Sec 12470GRDY/7200, WAUKESHA, 2000, COPPER:1

https://belyeapower.redstormlabs.com/web/image/product.template/32315/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 042710
    Request Quote

    Full Product Description

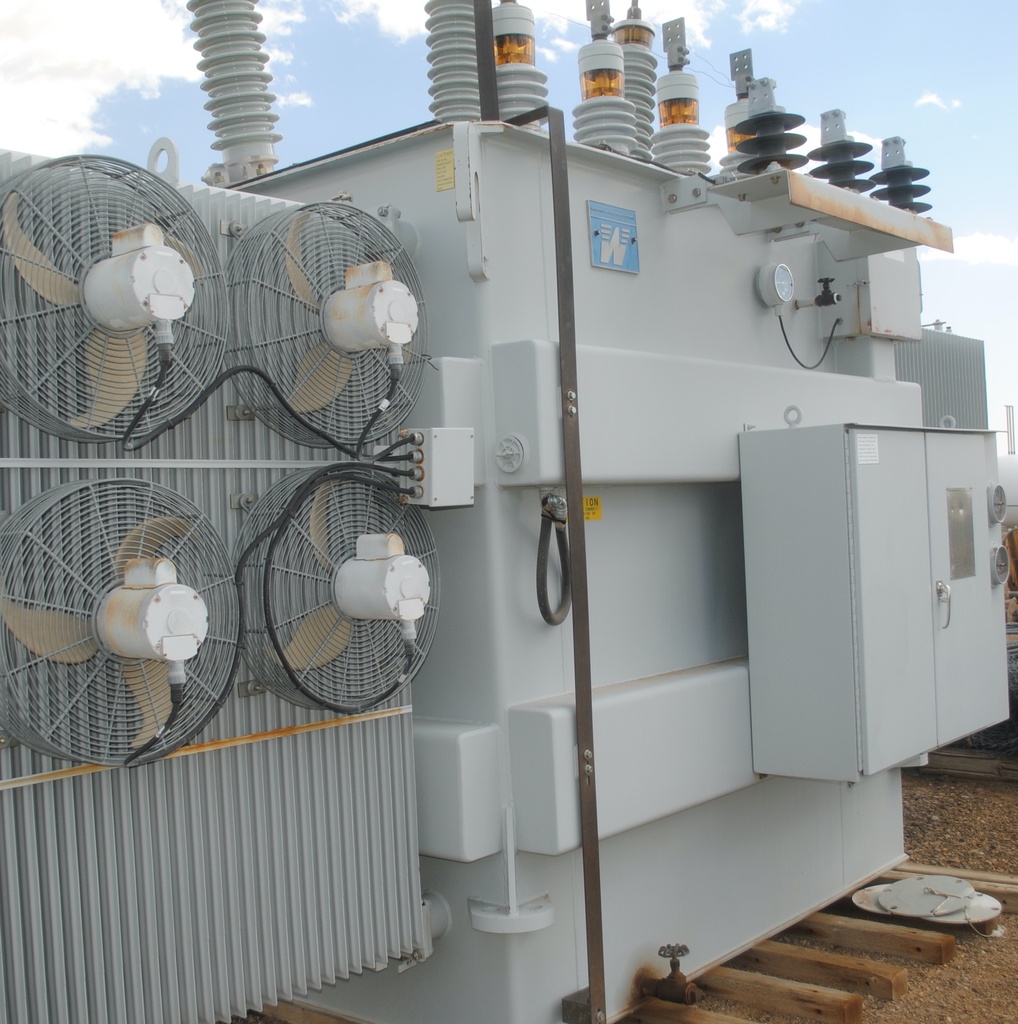

    ONE (1) 15000/16800/20000/22400/25000/28000 KVA WAUKESHA SUBSTATION
    SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS OA/FA/FA, 55/65
    DEGREE C RISE, 7.91% IMPEDANCE, COPPER WINDINGS, 6 X 600:5 HV
    MRCT'S C400, 6 X 2000:5 LV MRCT'S C400, , 1 X 600:6 NEUTRAL MRCT
    C400, MFG. 2000

    HIGH VOLTAGE: 115000 DELTA BIL: 550 KV
    LOW VOLTAGE: 12470GRDY/7200 BIL: 110 KV
    TAPS: 120750-117875-115000-112125-109250

    TOTAL WEIGHT: 77,000 LBS.
    CORE & COILS: 32,200 LBS.
    TANK & FIT.: 24,325 LBS.
    OIL: 20,475 LBS. (2,730 GALS)
    RAD. OIL: 10,200 LBS. (440 GALS. - BOLT-ON)
    MAIN TANK OIL: (2,290 GALS.)
