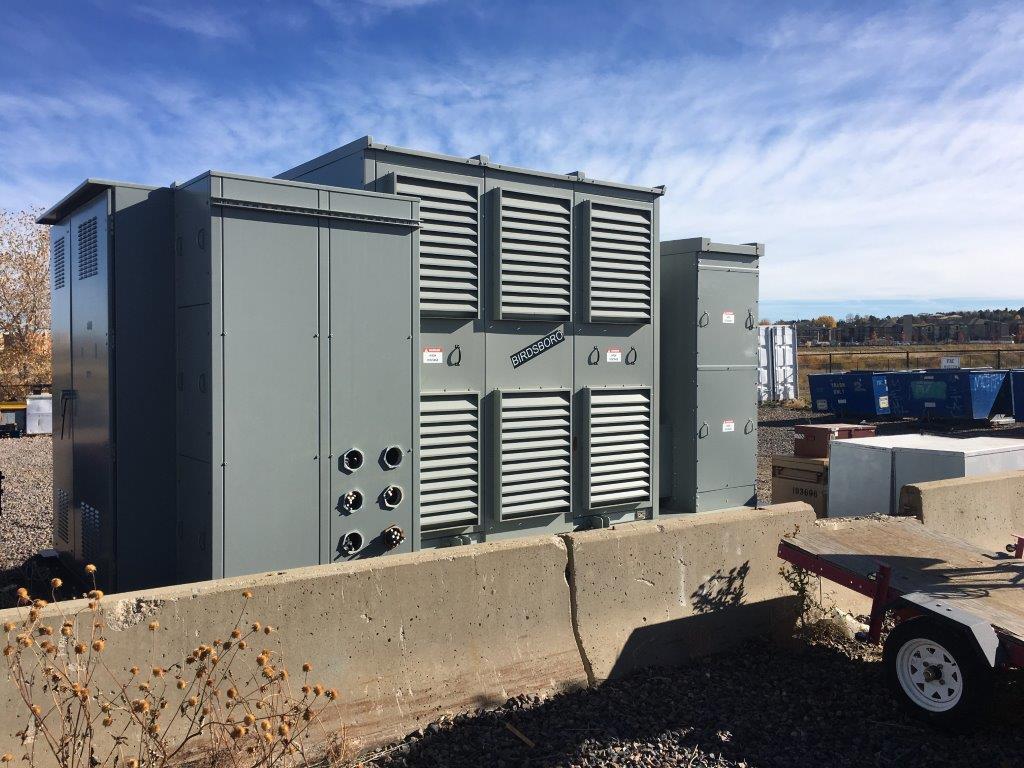

2000/2300 KVA, Pri 6900 D x 4160 D, Sec 480Y/277, 2015, MGM, OUTDOOR:1
OUTDOOR DRY TYPE TRANSFORMER
Product Number:
042688
Full Product Description
JVT-3796:

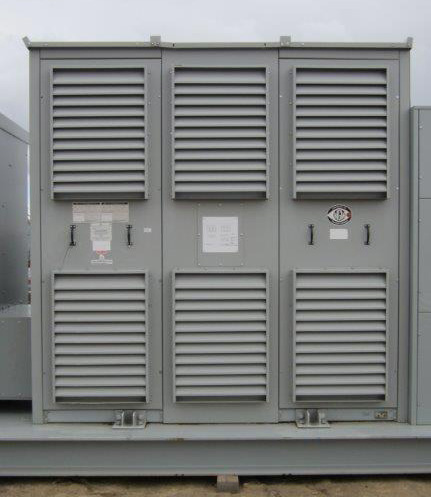

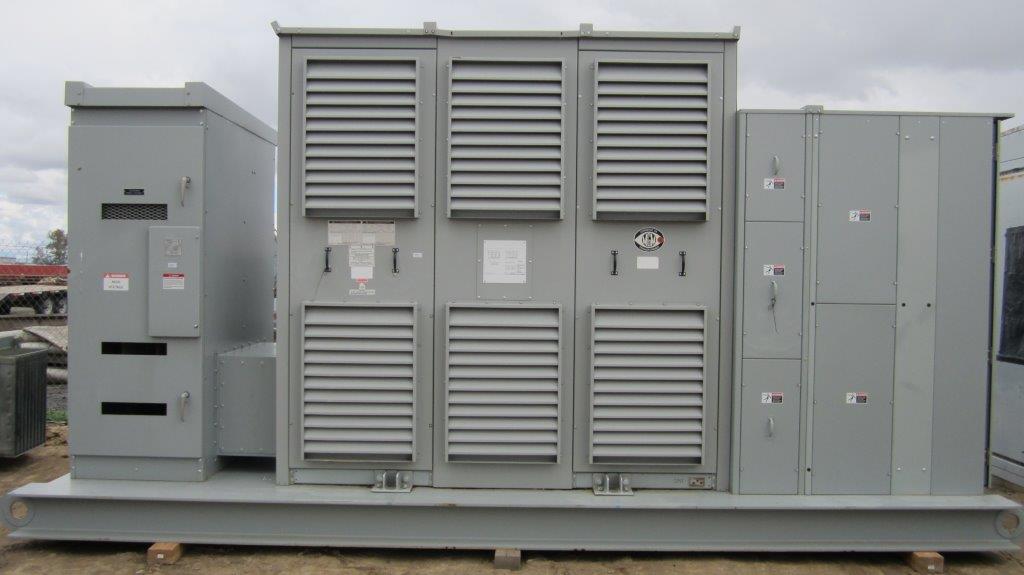

ONE (1) UNUSED 2000/2300 KVA MGM OUTDOOR DRY TYPE TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS AA/AA, 115/150 DEG. C RISE, ALUMINUM WINDINGS,

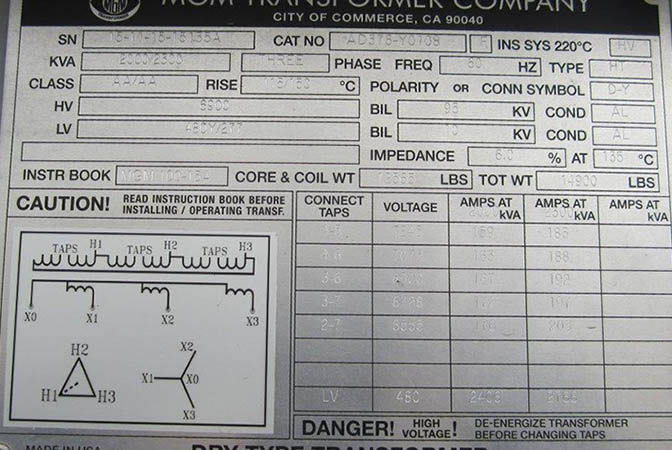

CAT. #AD376-Y0108, TYPE HT, INST. BOOK MGM 100-15A, MFG. 2015

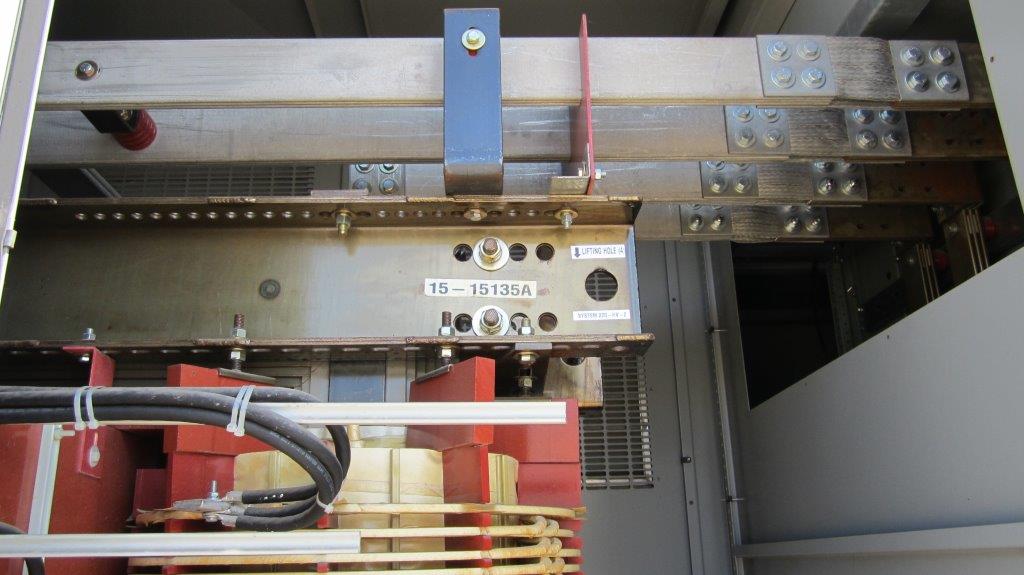

S/N 15-11-15-15135A
HIGH VOLTAGE: 6900 DELTA BIL: 95 KV (6.00% IMP.)
HIGH VOLTAGE: 4160 DELTA BIL: 30 KV (5.95% IMP.)
LOW VOLTAGE: 480Y/277 BIL: 10 KV
TAPS: 7245-7073-6900-6728-6555
TOTAL WEIGHT: 14,900 LBS.

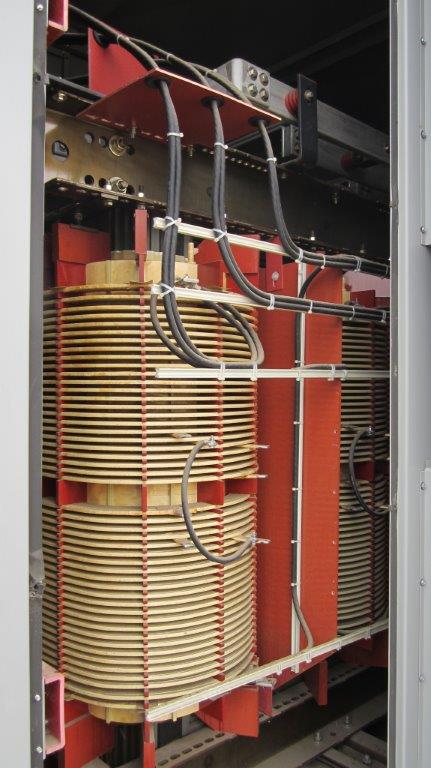

CORE & COILS: 12,565 LBS.
ONE (1) UNUSED 2000/2300 KVA MGM OUTDOOR DRY TYPE TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS AA/AA, 115/150 DEG. C RISE, ALUMINUM WINDINGS,
CAT. #AD376-Y0108, TYPE HT, INST. BOOK MGM 100-15A, MFG. 2015
S/N 15-11-15-15135A
HIGH VOLTAGE: 6900 DELTA BIL: 95 KV (6.00% IMP.)
HIGH VOLTAGE: 4160 DELTA BIL: 30 KV (5.95% IMP.)
LOW VOLTAGE: 480Y/277 BIL: 10 KV
TAPS: 7245-7073-6900-6728-6555
TOTAL WEIGHT: 14,900 LBS.
CORE & COILS: 12,565 LBS.
