  2. 7500/8400/10500 KVA, Pri 115000 D, Sec 4160Y/2400, GENERAL ELECTRIC, ALUMINUM

7500/8400/10500 KVA, Pri 115000 D, Sec 4160Y/2400, GENERAL ELECTRIC, ALUMINUM

https://belyeapower.redstormlabs.com/web/image/product.template/32286/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 042681
    Request Quote

    Full Product Description


    JVT-3777:

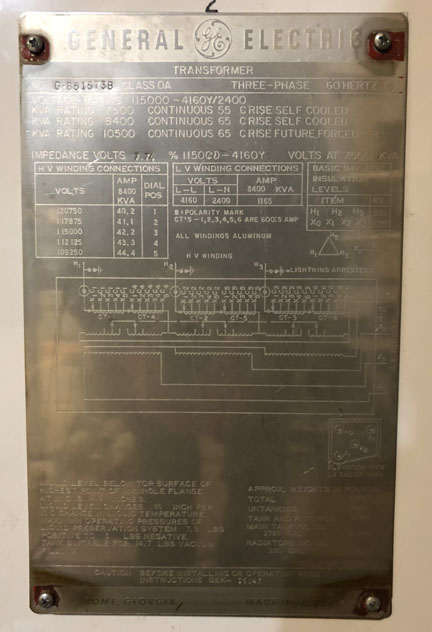

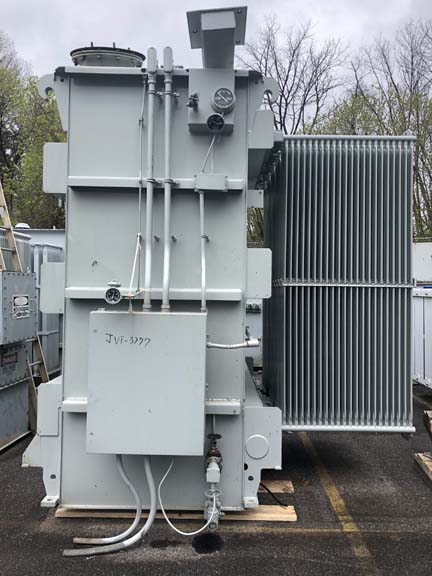

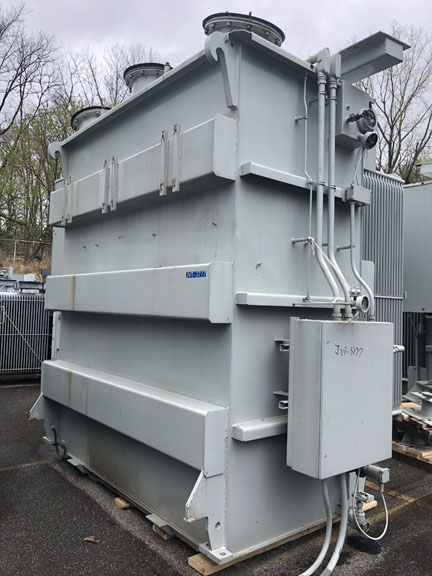

    ONE (1) 7500/8400/10500 KVA GENERAL ELECTRIC SUBSTATION TRANSFORMER, 3 PHASE,
    60 HERTZ, CLASS FFA, 55/65 DEG. C RISE, 7.74% IMPEDANCE, ALUMINUM
    WINDINGS, LIQUID LEVEL GAUGE, LIQUID TEMPERATURE GAUGE, DRAIN & SAMPLE
    VALVE, VACUUM PRESSURE GAUGE, HV TOP X LV SIDE, S/N G-851573B

    HIGH VOLTAGE: 115000 DELTA BIL: 550 KV
    LOW VOLTAGE: 4160Y/2400 BIL: 75 KV
    TAPS: 120750-117875-115000-112125-109250

    TOTAL WEIGHT: 60,600 LBS.
    CORE & COILS: 19,600 LBS.
    TANK & FIT.: 18,300 LBS.
    OIL: 20,750 LBS. (2,780 GALS. TANK)
    1,950 LBS. (260 GALS. RADIATORS)
    DIMENSIONS: 147"H X 152.5"W X 105"D
