Public Pricelist
  1. All Products
  2. 3750/4200/4680/5250 KVA, Pri 34400 D, Sec 4160Y/2400, SUNBELT, CU WINDINGS;

3750/4200/4680/5250 KVA, Pri 34400 D, Sec 4160Y/2400, SUNBELT, CU WINDINGS;

https://belyeapower.redstormlabs.com/web/image/product.template/32279/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 042674
    Request Quote

    Full Product Description

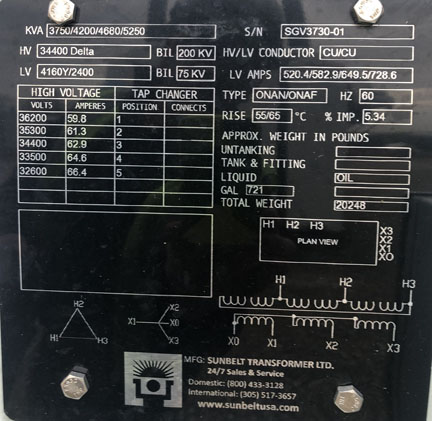

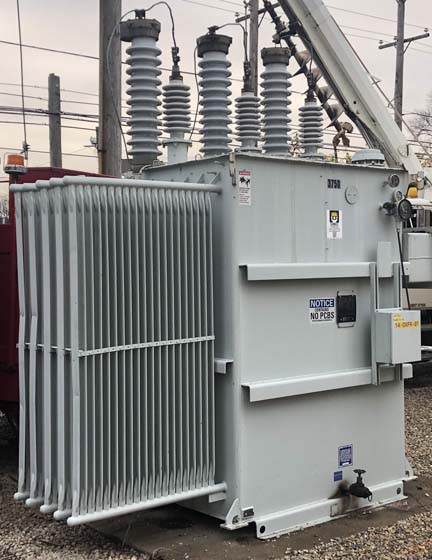

    ONE (1) 3750/4200/4680/5250 SUNBELT SUBSTATION TRANSFORMER
    55/65 DEG. C RISE, 3 PHASE, CLASS ONAN/ONAF
    60 HERTZ, 5.34% IMP., COPPER WINDINGS, TEMPERATURE GAUGE
    BUSHINGS HV: TOP - LV: SIDE, LIGHTNING ARRESTERS, FANS,
    LIQUID LEVEL GAUGE, VACUUM PRESSURE GAUGE, SAMPLE & DRAIN VALVE,
    SERIAL NO. SGV3730-01

    HV: 34400 DELTA BIL: 200KV
    LV: 4160Y/2400 BIL: 75KV
    HV TAPS: 36200-35300-34400-33500-32600

    WEIGHT: 20248 LBS.
    FLUID: 721 GALS.
