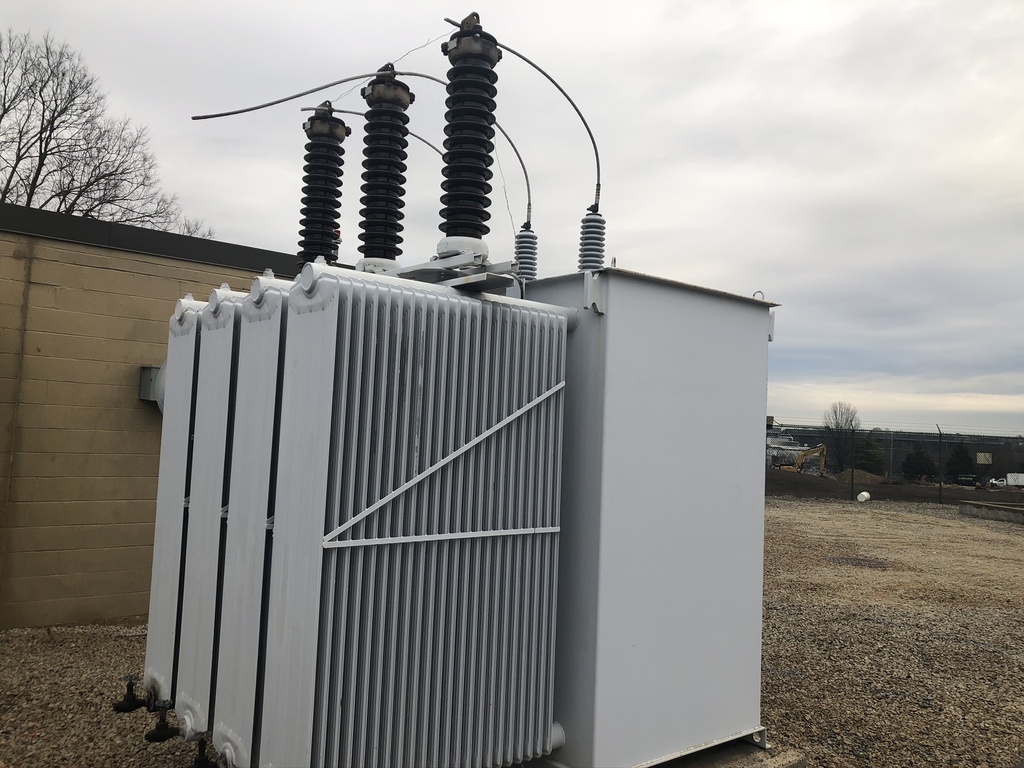

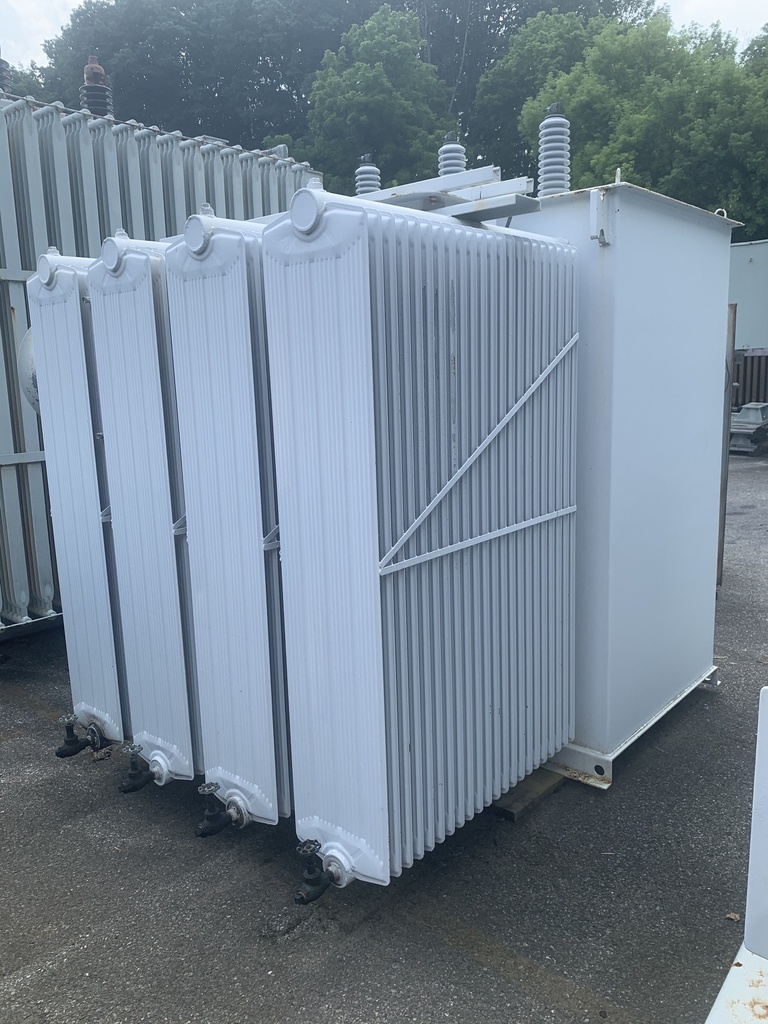

3750/4200/4687/5249-FUT KVA, Pri 34400 D, Sec 4160Y/2400, RTE, AL WINDINGS
SUBSTATION TRANSFORMER
Product Number:
042669
Full Product Description
JVT-3807
ONE (1) 3750/4200/4687/5249-FUT KVA RTE SUBSTATION TRANSFORMER<

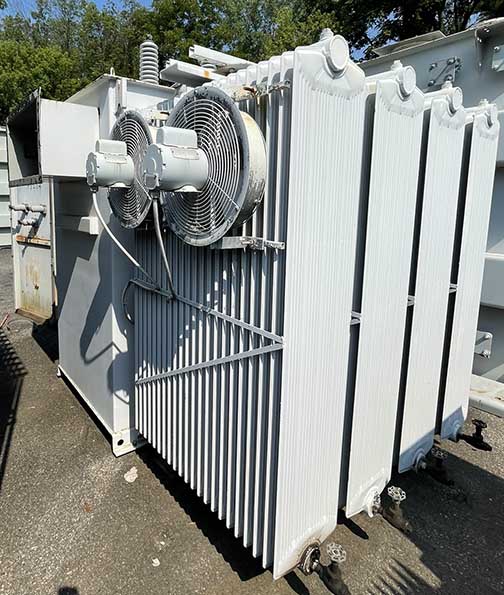

CLASS OA/FFA, 60 HERTZ, 55/65 DEG. C RISE<
6.0% IMPEDANCE, ALUMINUM WINDINGS, 3 PHASE<

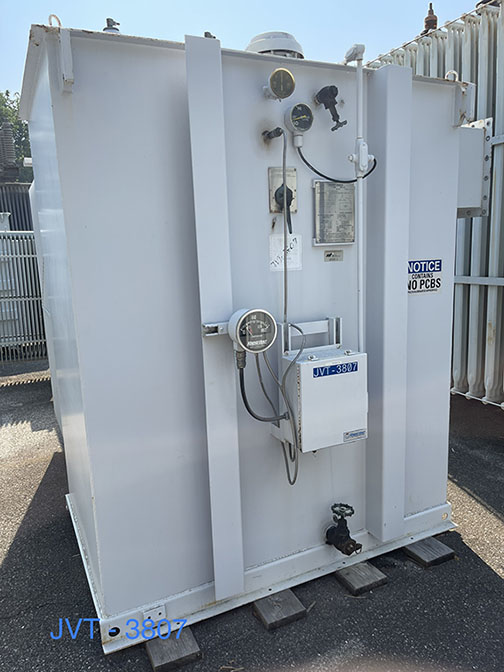

VACUUM PRESSURE GAUGE, LIQUID LEVEL GAUGE<
TEMPERATURE GAUGE, SAMPLE & DRAIN VALVE<

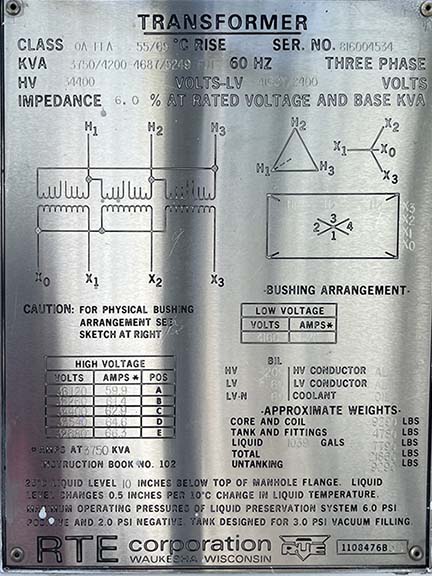

BUSHING LOC: HV - TOP, LV - SIDE S/N: 816004534<
S/N: 816004534, ARRESTERS, TAP CHANGER
HV: 34400 DELTA BIL: 200 KV<
LV: 4160Y/2400 BIL: 60 KV
LV NUETRAL BIL: 60 KV
TAPS: 36120-35260-34400-33540-32680<
TANK & FITTINGS: 4780 LBS.<
CORE & COIL: 9290 LBS.<
FLUID - OIL: 7790 LBS. (1039)<
TOTAL WEIGHT: 21800 LBS.<
DIMENSIONS:<
