3750/4200/4687/5249-FUT KVA, Pri 34400 D, Sec 4160 Y, RTE, AL WINDINGS

54 S Sharpsville Sharon PA 16146
JVT-3806

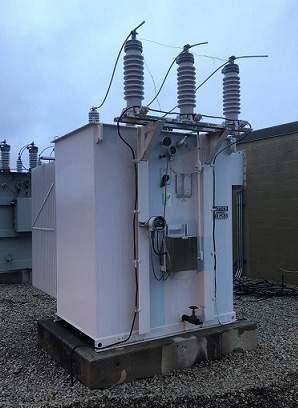

ONE (1) 3750/4200/4687/5249-FUT KVA RTE SUBSTATION TRANSFORMER
CLASS OA/FFA, 60 HERTZ, 55/65 DEG. C RISE
6.1% IMPEDANCE, ALUMINUM WINDINGS, 3 PHASE
VACUUM PRESSURE GAUGE, LIQUID LEVEL GUAGE
TEMPERATURE GAUGE, SAMPLE & DRAIN VALVE
BUSHING LOC: HV - TOP, LV - SIDE, S/N: 816004570

HV: 34400 DELTA BIL: 200 KV
LV: 4160Y/2400 BIL: 60 KV
TAPS: 36120-35260-34400-33540-32680

TANK & FITTINGS: 4780 LBS.
CORE & COIL: 9290 LBS.
FLUID - OIL: 7790 LBS. (1039)
TOTAL WEIGHT: 21860 LBS.

DIMENSIONS:
