3750/4687 KVA, Pri 34500 D, Sec 4160 D, CARTE, COPPER WINDINGS;
SUBSTATION TRANSFORMER
Product Number:
042633
Full Product Description
T-5884

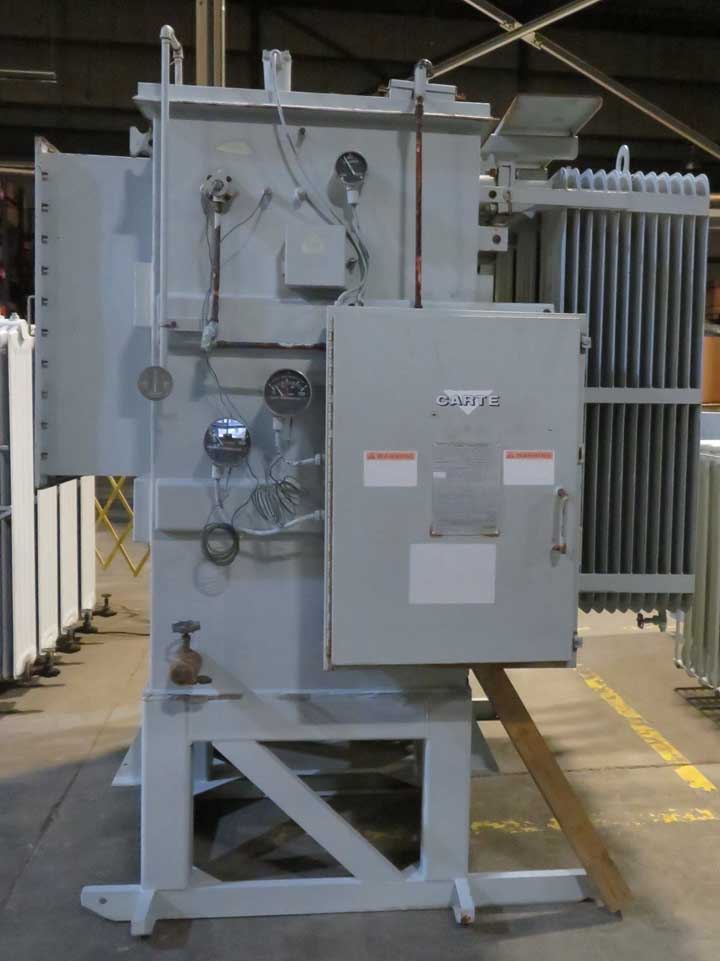

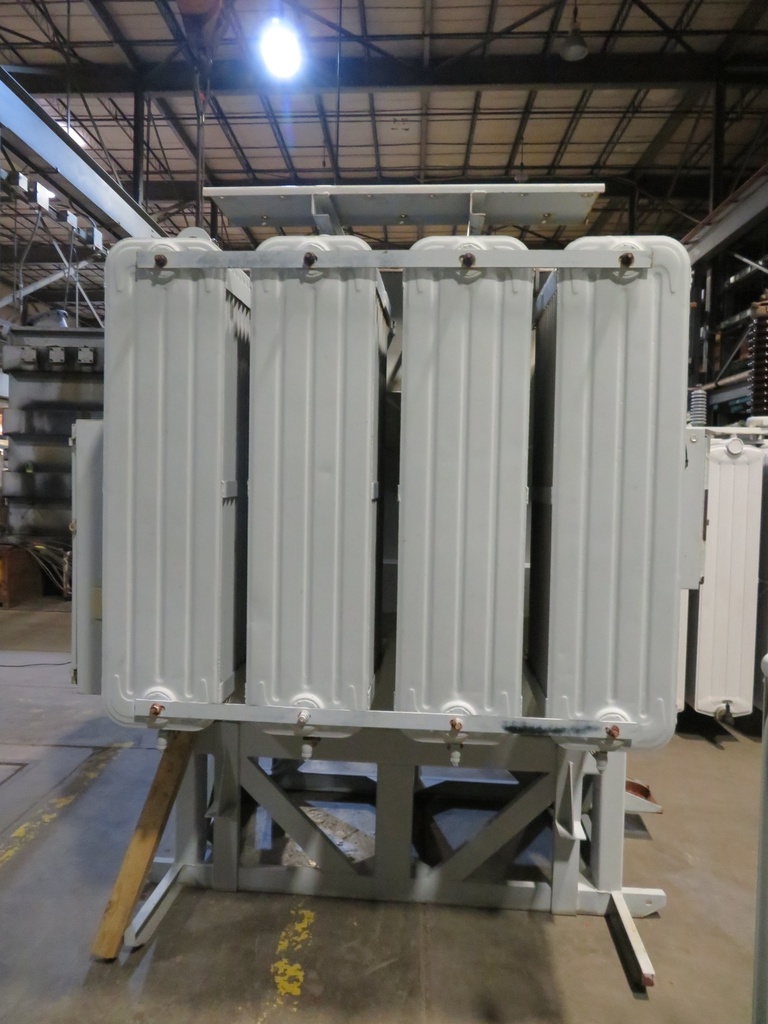

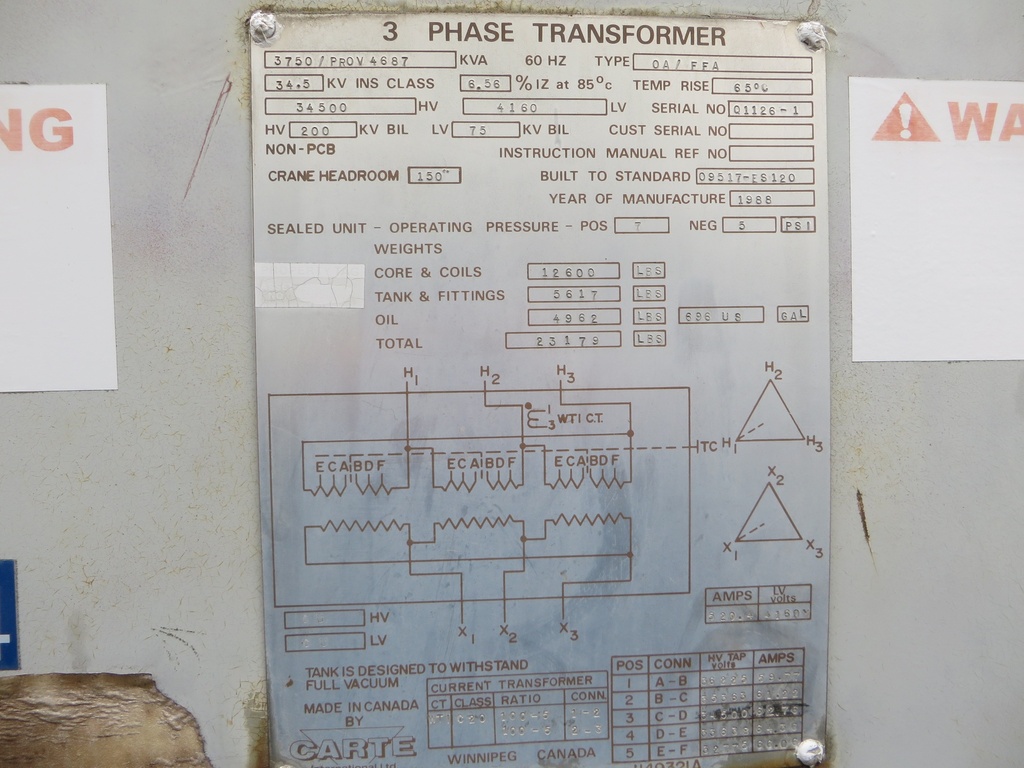

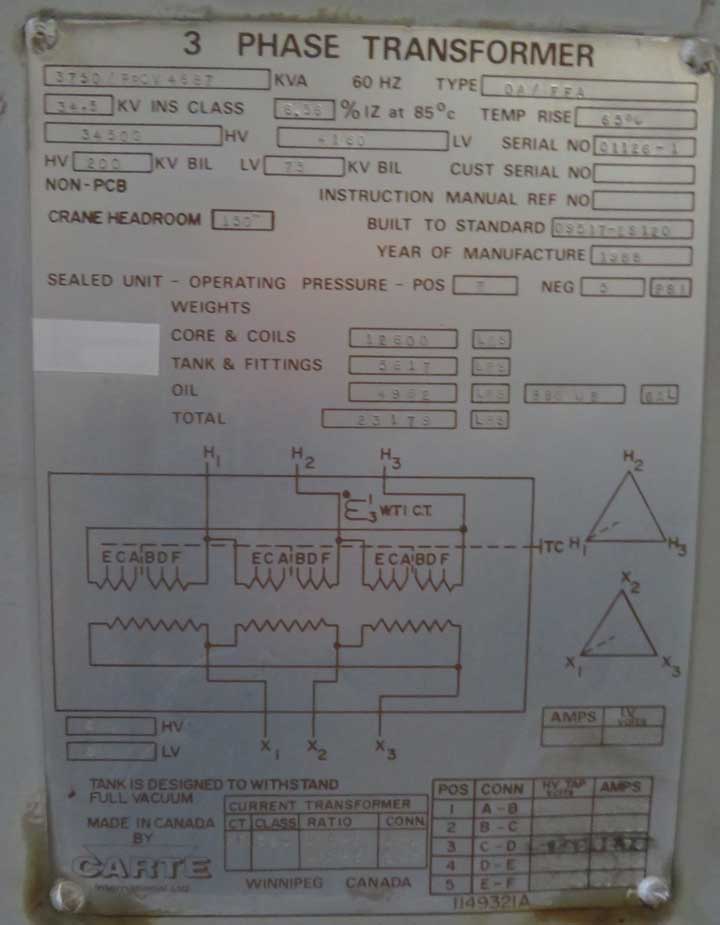

ONE (1) 3750/4687 KVA CARTE SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS OA/FFA, 65 DEG. C RISE, 6.56% IMPEDANCE, COPPER WINDINGS,
OIL LEVEL GAUGE, PRESSURE/VACUUM GAUGE, PRESSURE RELIEF DEVICE,
DRAIN & SAMPLE VALVE, LIQUID/WINDING TEMPERATURE GAUGE, SERIAL
NUMBER 01126-1
HIGH VOLTAGE: 34500 DELTA BIL: 200 KV
LOW VOLTAGE: 4160 DELTA BIL: 75 KV
TAPS: 36225-35383-34500-33638-32774
TOTAL WEIGHT: 23,179 LBS.
CORE & COILS: 12,600 LBS.
TANK & FIT.: 5,617 LBS.
OIL: 4,962 LBS. (696 GALS.)
DIMENSIONS: 110.5"H X 102.5"L X 94"D
ONE (1) 3750/4687 KVA CARTE SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS OA/FFA, 65 DEG. C RISE, 6.56% IMPEDANCE, COPPER WINDINGS,
OIL LEVEL GAUGE, PRESSURE/VACUUM GAUGE, PRESSURE RELIEF DEVICE,
DRAIN & SAMPLE VALVE, LIQUID/WINDING TEMPERATURE GAUGE, SERIAL
NUMBER 01126-1
HIGH VOLTAGE: 34500 DELTA BIL: 200 KV
LOW VOLTAGE: 4160 DELTA BIL: 75 KV
TAPS: 36225-35383-34500-33638-32774
TOTAL WEIGHT: 23,179 LBS.
CORE & COILS: 12,600 LBS.
TANK & FIT.: 5,617 LBS.
OIL: 4,962 LBS. (696 GALS.)
DIMENSIONS: 110.5"H X 102.5"L X 94"D
