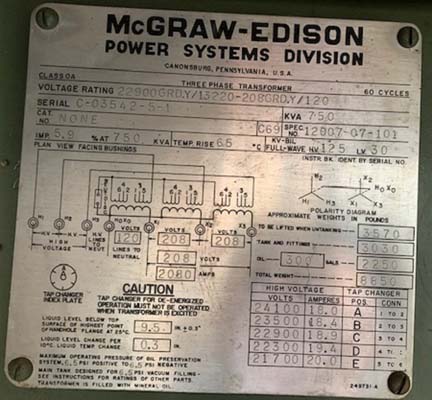

750 KVA, Pri 22900Y/13200, Sec 208Y/120, MCGRAW-EDISON, DEAD FRONT, LOOP FEED
PADMOUNT TRANSFORMER
Product Number:
042604
Full Product Description
JVT-3801:
ONE (1) 750 KVA MCGRAW-EDISON COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA, 65 DEG. C RISE, 5.9% IMPEDANCE, DEAD FRONT, LOOP
FEED, ALUMINUM WINDINGS, LIQUID LEVEL GAUGE, DRAIN & SAMPLE VALVE,
S/N C-03542-5-1
HIGH VOLTAGE: 22900GRDY/13200 BIL: 125 KV
LOW VOLTAGE: 208Y/120 BIL: 30 KV
TAPS: 24100-23500-22900-22300-21700
TOTAL WEIGHT: 8,850 LBS.
CORE & COILS: 3,570 LBS.
TANK & FIT.: 3,030 LBS.
OIL: 2,250 LBS. (300 GALS.)
68"H X 95"W X 72"D
HV BUSHING: 51"H
LV BUSHING: 50"H
ONE (1) 750 KVA MCGRAW-EDISON COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA, 65 DEG. C RISE, 5.9% IMPEDANCE, DEAD FRONT, LOOP
FEED, ALUMINUM WINDINGS, LIQUID LEVEL GAUGE, DRAIN & SAMPLE VALVE,
S/N C-03542-5-1
HIGH VOLTAGE: 22900GRDY/13200 BIL: 125 KV
LOW VOLTAGE: 208Y/120 BIL: 30 KV
TAPS: 24100-23500-22900-22300-21700
TOTAL WEIGHT: 8,850 LBS.
CORE & COILS: 3,570 LBS.
TANK & FIT.: 3,030 LBS.
OIL: 2,250 LBS. (300 GALS.)
68"H X 95"W X 72"D
HV BUSHING: 51"H
LV BUSHING: 50"H
