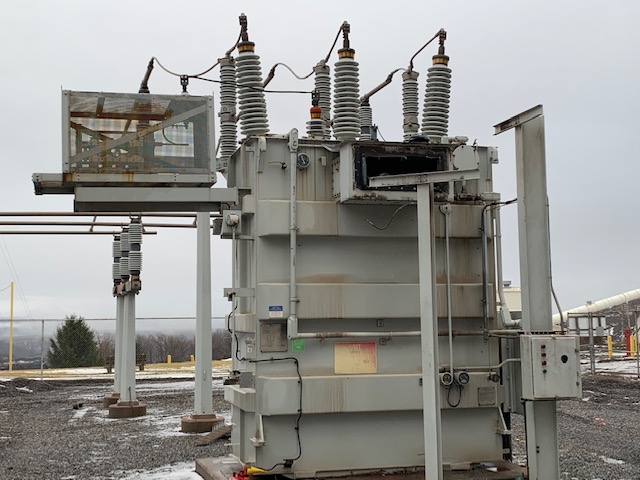

12000/17920 KVA, Pri 115000 D, Sec 4160Y/2400, COOPER, COPPER:1

https://belyeapower.redstormlabs.com/web/image/product.template/32154/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 042549
    Request Quote

    Full Product Description

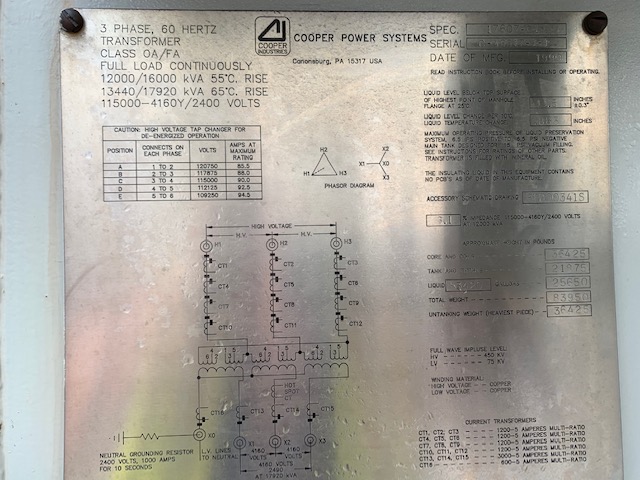

    ONE (1) 12000/13440/16000/17920 KVA COOPER SUBSTATION TRANSFORMER, 3 PHASE,
    60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 8.1% IMPEDANCE, COPPER
    WINDINGS, 12 X 1200:5 HV MRCT'S, 3 X 3000:5 HV MRCT'S, 1 X 600:5
    NEUTRAL MRCT, 2400 VOLT, 1000 AMP NEUTRAL GROUNDING RESISTOR, TOP X
    TOP BUSHINGS

    HIGH VOLTAGE: 115000 DELTA BIL: 450 KV
    LOW VOLTAGE: 4160Y/2400 BIL: 75 KV
    TAPS: 120750-117875-115000-112125-109250

    TOTAL WEIGHT: 83,950 LBS.
    CORE & COILS: 36,425 LBS.
    TANK & FIT.: 21,875 LBS.
    OIL: 25,650 LBS.
