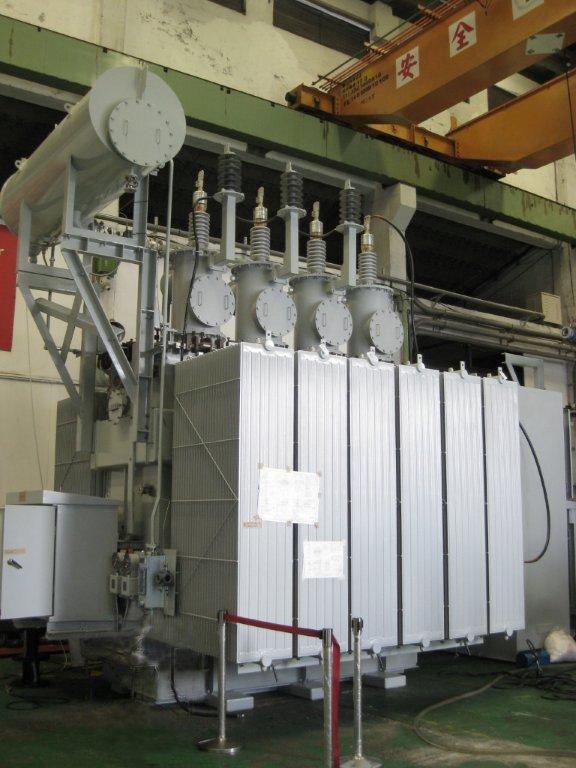

34000 KVA, Pri 34500 Y, Sec 13200 D, 2010, FORTUNE ELECTRIC, GSU:1

ONE (1) 34 MVA FORTUNE ELECTRIC GENERATOR STEP-UP TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS ONAN, 55 DEGREE C RISE, HV TOP X LV SIDE, OIL
LEVEL GAUGE, OIL & WINDING TEMPERATURE INDICATOR, DRAIN & SAMPLE
VALVE, PRESSURE RELIEF DEVICE, LIGHTNING ARRESTERS, NEUTRAL
GROUNDING RESISTOR, 6 X 600:5 HV MRCT'S C800, 6 X 2000:5 LV MRCT'S
C800 1 X 600:5 X0 MRCT C800, CONSERVATOR

HIGH VOLTAGE: 34500 WYE BIL: 200 KV
LOW VOLTAGE: 13200 DELTA BIL: 110 KV
TAPS: 36225-35363-34500-33638-32775

TOTAL WEIGHT: 129,700 LBS.
CORE & COILS: 51,200 LBS.
TANK & FIT.: 50,700 LBS.
OIL: 27,800 LBS. (3,700 GALS.)
SHIPPING: 92,600 LBS. (W/O OIL)
DIMENSIONS: 240.2"H X 186.6"W X 291.3"L
SHIPPING: 143.7"H X 82.7"W X 212.6"L
