3750 KVA, Pri 13200Y/7620, Sec 480 D, SUNBELT, LIVE FRONT, RADIAL FEED
PADMOUNT TRANSFORMER
Product Number:
042479
Full Product Description

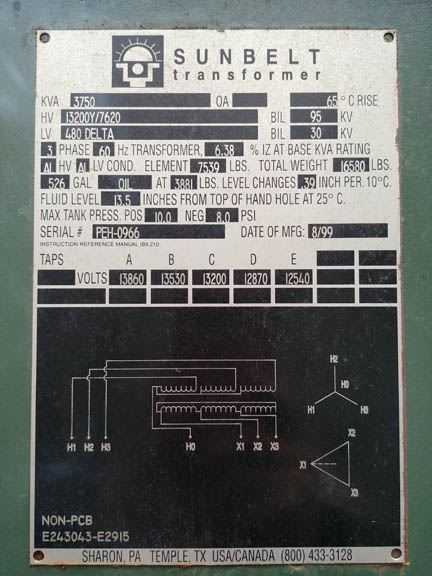

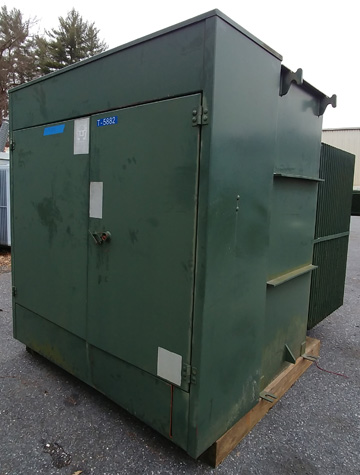

T-5882:
ONE (1) 3750 KVA SUNBELT COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA, 65 DEG. C RISE, 6.38% IMPEDANCE, LIVE FRONT,

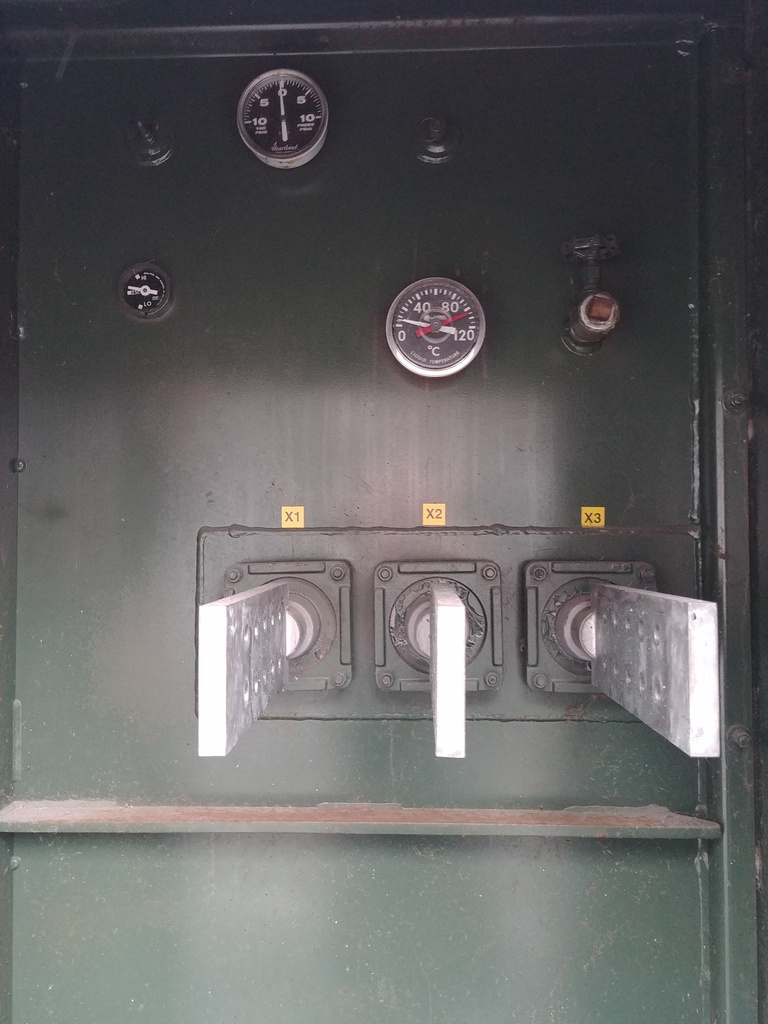

RADIAL FEED, ALUMINUM WINDINGS, LIQUID LEVEL GAUGE, PRESSURE RELIEF
VALVE, VACUUM PRESSURE GAUGE, LIQUID TEMPERATURE GAUGE, DRAIN &
SAMPLE VALVE, S/N PEH-0966
HIGH VOLTAGE: 13200Y/7620 BIL: 95 KV
LOW VOLTAGE: 480 DELTA BIL: 30 KV
TAPS: 13860-13530-13200-12870-12540
TOTAL WEIGHT: 16,580 LBS.
CORE & COILS: 7,539 LBS.
TANK & FIT.: 5,160 LBS.
OIL: 3,881 LBS. (526 GALS.)
DIMENSIONS: 77.5"H X 73.5"W X 100"D
