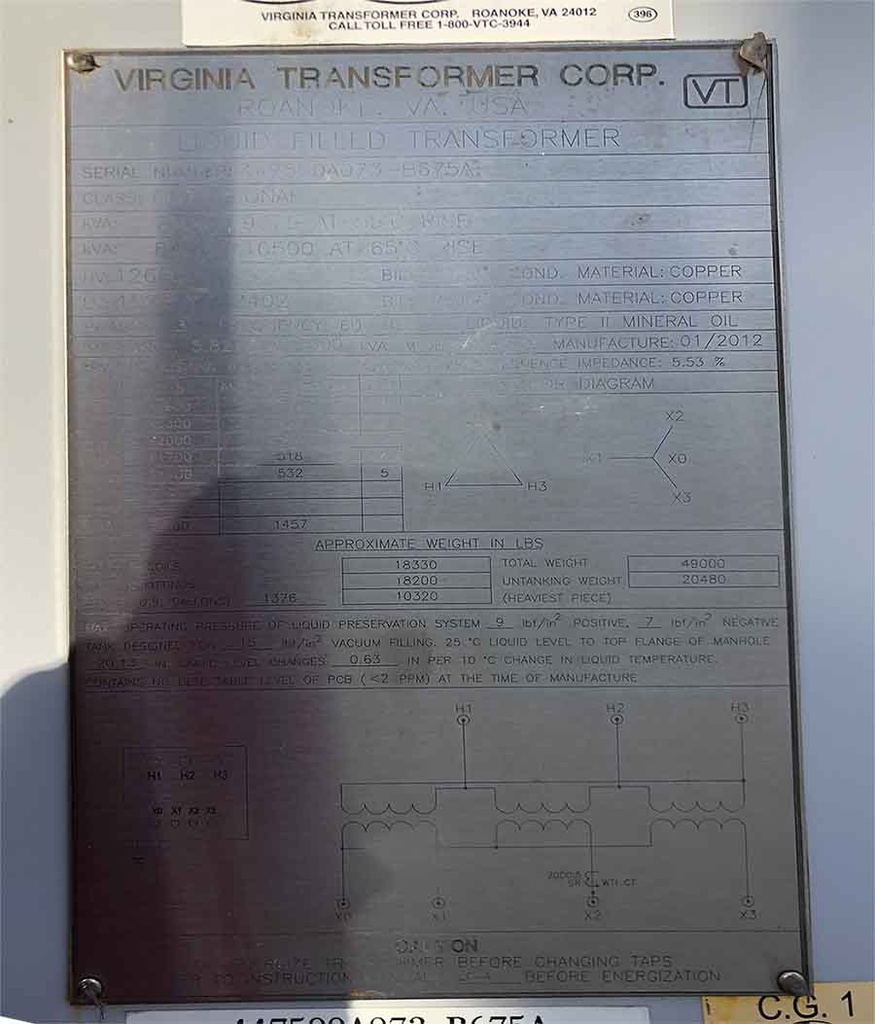

7500/10500 KVA, Pri 12000 D, Sec 4160Y/2402, VIRGINIA, COPPER
SUBSTATION TRANSFORMER
Product Number:
042466
Full Product Description
JVT-3813:
ONE (1) 7500/8400/9375/10500 KVA VIRGINIA SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS ONAN/ONAF, 55/65 DEG. C RISE, 5.82% IMPEDANCE,
COPPER WINDINGS, TOP X TOP BUSHINGS, MFG. 2012
HIGH VOLTAGE: 12000 DELTA
LOW VOLTAGE: 4160Y/2402
TAPS: 12600-12300-12000-11700-11400
TOTAL WEIGHT: 49,000 LBS.
CORE & COILS: 18,330 LBS.
TANK & FIT.: 18,200 LBS.
OIL: 10,320 LBS. (1,376 GALS.)
