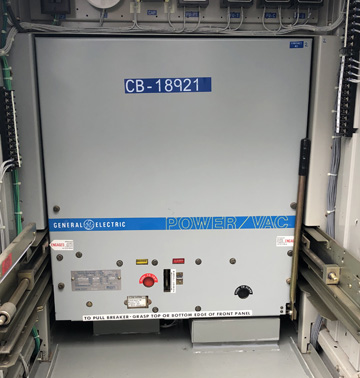

1200 Amp, GE, VB1-13.8-500-1, 15 KV, E/O, D/O, 120VAC CLOSE CAP TRIP

CB-18921

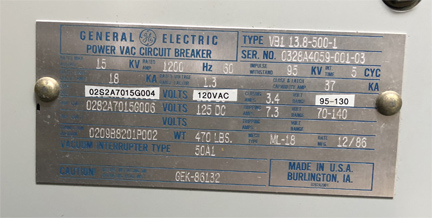

ONE (1) 1200 AMP GENERAL ELECTRIC VACUUM CIRCUIT BREAKER
13.8 KV
15 KV MAX
60 HZ
95 KV BIL
5 CYCLE INTERRUPT
3 PHASE
18 KA SHORT CIRCUIT
1.3 VOLTAGE RANGE FACTOR
37 KA CLOSE & LATCH
120 VAC CLOSE
125 VDC TRIP
CONNECTION DIAGRAM: 0209B8201P002
ML-18 OPERATING MECHANISM
VACUUM INTERRUPTER TYPE: 50A1
470 LBS.
IB: GEK-86132
ELECTRICALLY OPERATED
DRAW-OUT
