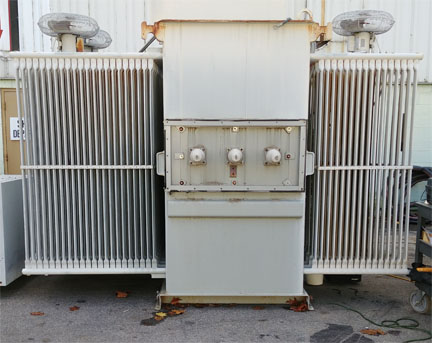

3000/4200 KVA, Pri 26400 D, Sec 480Y/277, SIEMENS, COPPER

JVT-3770:

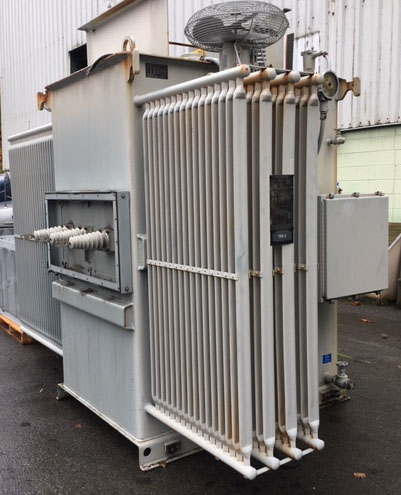

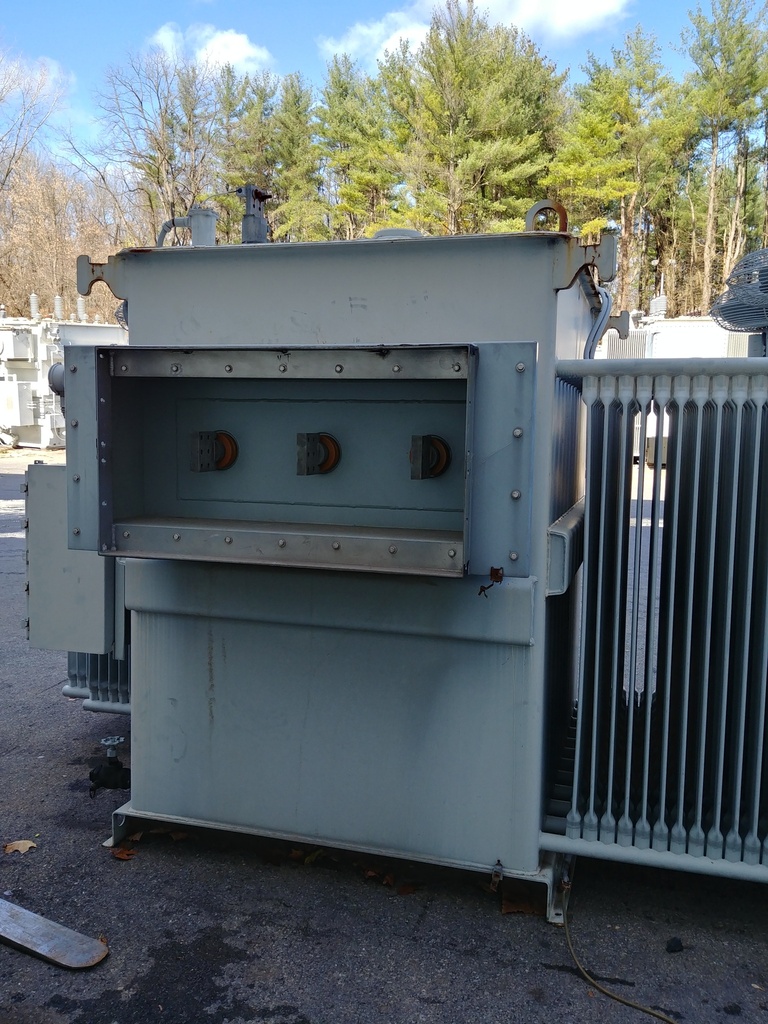

ONE (1) 3000/3360/3750/4200 KVA SIEMENS SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, 55/65 DEG. C RISE, CLASS OA/FA, 9.26% IMPEDANCE, COPPER
WINDINGS, DRAIN & SAMPLE VALVE, LIQUID LEVEL GAUGE, VACUUM PRESSURE
GAUGE, PRESSURE RELIEF VALVE, 3 X 5000:5 LV MRCT'S, SIDE X SIDE
BUSHINGS, LV NEUTRAL BUSHING COVER MOUNTED, S/N SFB3186-0001, INST.
BOOK PC-G-1002, MFG. 1997

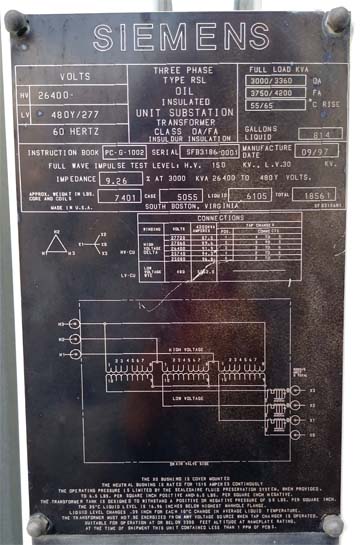

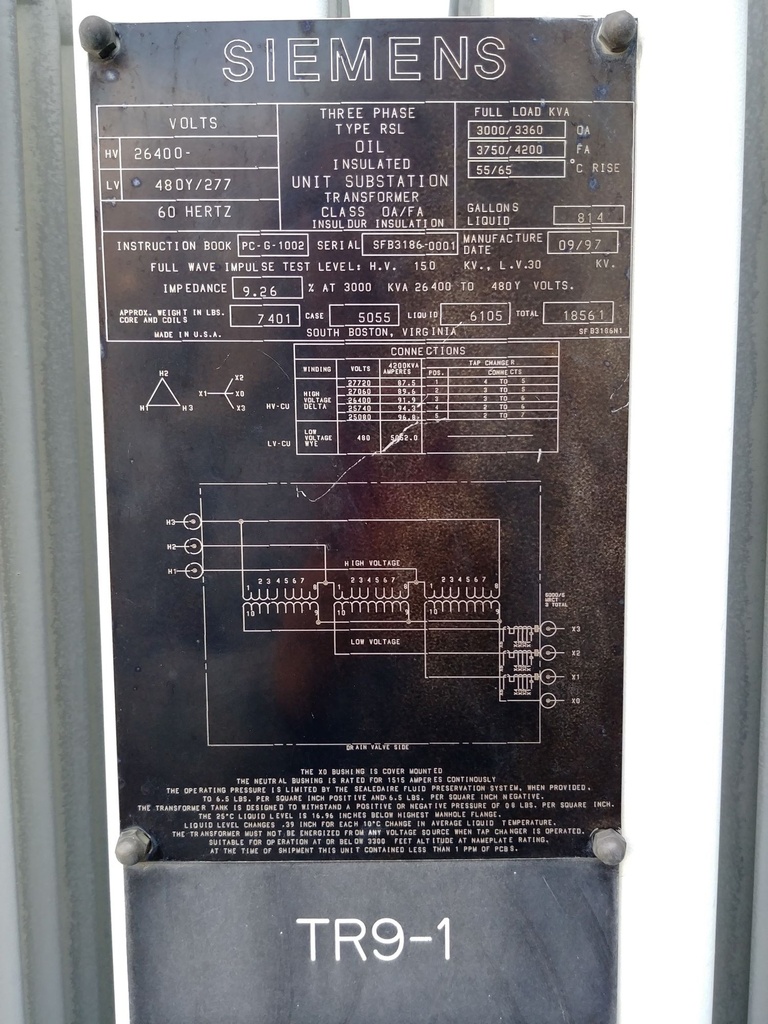

HIGH VOLTAGE: 26400 DELTA BIL: 150 KV
LOW VOLTAGE: 480Y/277 BIL: 30 KV
TAPS: 27720-27060-26400-25740-25080

TOTAL WEIGHT: 18,561 LBS.
CORE & COILS: 7,401 LBS.
TANK & FIT.: 5,055 LBS.
OIL: 6,105 LBS. (814 GALS.)

DIMENSIONS: 10'6"L x 8'6"W x 7'4"H
