5000/7000 KVA, Pri 26400 D, Sec 4160Y/2402, SIEMENS, COPPER

JVT-3769:

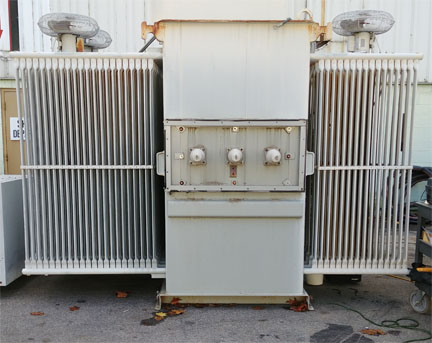

ONE (1) 5000/5600/6250/7000 KVA SIEMENS SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, 55/65 DEG. C RISE, CLASS OA/FA, 7.25% IMPEDANCE, COPPER
WINDINGS, DRAIN & SAMPLE VALVE, LIQUID LEVEL GAUGE, VACUUM PRESSURE
GAUGE, PRESSURE RELIEF VALVE, 3 X 1200:5 LV MRCT'S, SIDE X SIDE

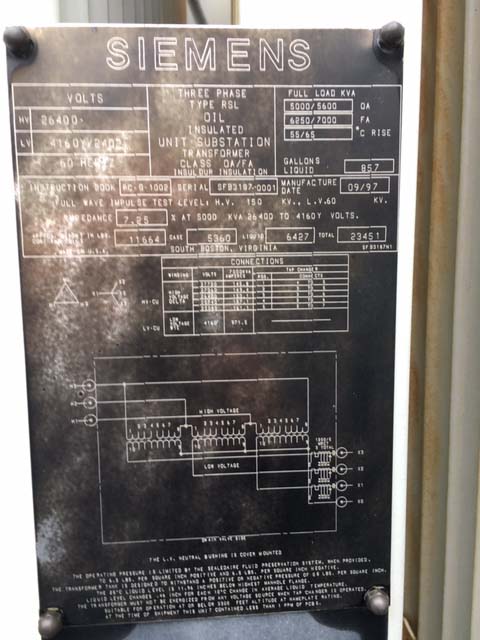

BUSHINGS, LV NEUTRAL BUSHING COVER MOUNTED, S/N SFB3187-0001, INST.
BOOK PC-G-1002, MFG. 1997

HIGH VOLTAGE: 26400 DELTA BIL: 150 KV
LOW VOLTAGE: 4160Y/2402 BIL: 60 KV
TAPS: 27720-27060-26400-25740-25080

TOTAL WEIGHT: 23,451 LBS.
CORE & COILS: 11,664 LBS.
TANK & FIT.: 5,360 LBS.
OIL: 6,427 LBS. (857 GALS.)

DIMENSIONS: 10'1"L x 8'6"W x 10'H
