600 Amp, SQUARE D, No. VISI-VAC, 15500 V., 1992, OUTDOOR, ELECTRICALLY OPERATED

CB-18735 & A:

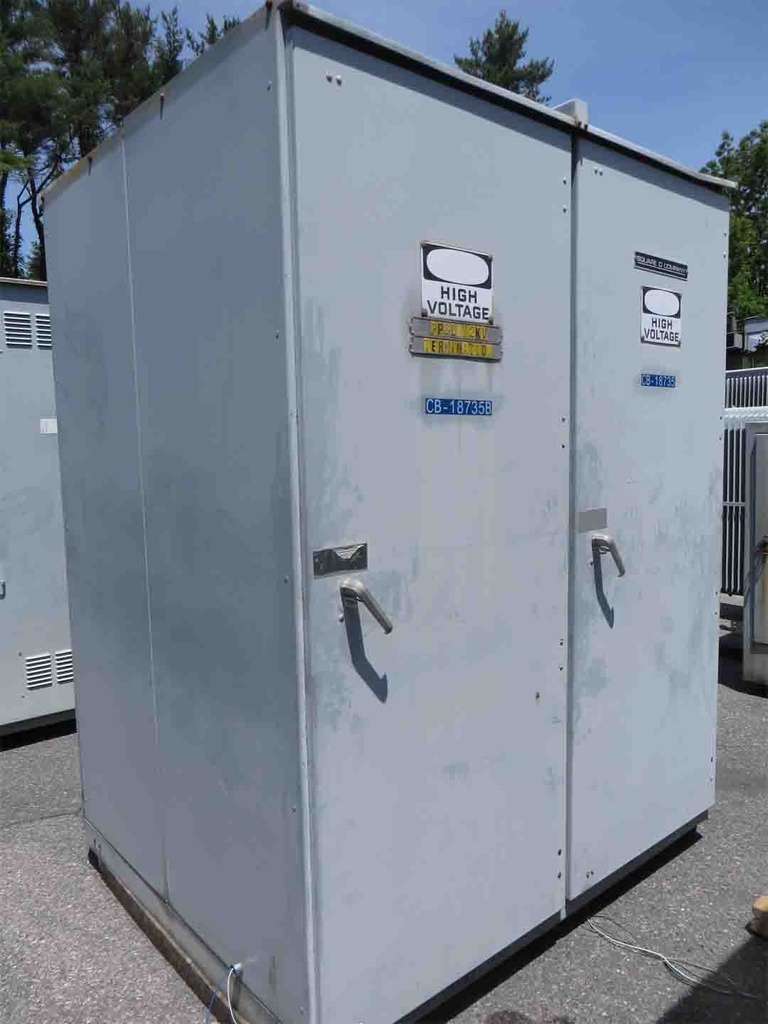

600 AMP SQUARE D ELECTRICALLY OPERATED LOAD BREAK SWITCH WITH INCOMING SECTION
TYPE VISI-VAC
15.5 KV
3 PHASE
60 HERTZ
95 KV BIL
UNFUSED:
20 KA INTERRUPT
20 KA MAKE & CARRY FOR 10 CYCLES
12.5 KA SYM FOR 3 SEC.
PART. NO. VBF21-E55000
S/N 17-04555
MFG. 1992
SURE-TRIP CAPACITOR POWER SUPPLY
CLASS 9810 TYPE ST: 520
120 VAC INPUT VOLTAGE
1545-170 VDC TRIP OUTPUT VOLTAGE
22 JOULE STORED ENERGY
4 X ABB CIRCUIT SHIELD OVERCURRENT RELAYS
1 X AMMETER WITH SELECTOR SWITCH
1 X BASLER BE1-47N SOLID STATE PROTECTIVE RELAY
1 X VOLTMETER WITH SELECTOR SWITCH

CB-18735B (INCOMING SECTION):
2 X DOUBLE FUSED GE JVM PT'S
CAT. # 765X21G30
14.4KV
120:1
1500 VA
110 KV BIL
3 X GE JKM 5 CT'S
CAT. #755X42G17
14.4 KV
600:5
1500 VA
110 KV BIL
