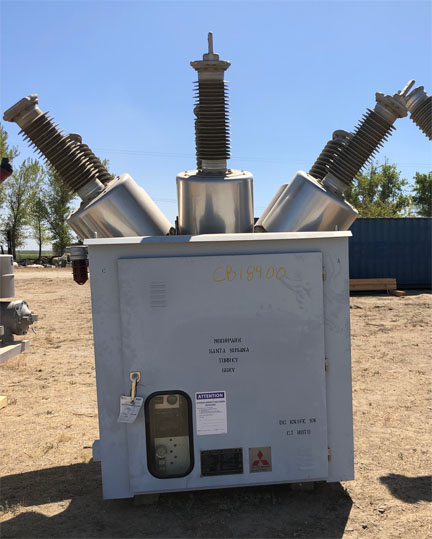

2000 Amp, MITSUBISHI, No. 70-SFMT-40E, 72500 V., 2004, 125 VDC, BM-1 MECH.:1

CB-18900:

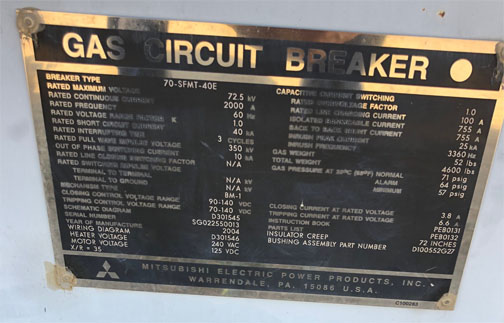

ONE (1) 2000 AMP MITSUBISHI SF6 CIRCUIT BREAKER
TYPE 70-SFMT-40E
72.5 KV
350 KV BIL
60 HERTZ
1.0 RATED VOLTAGE RANGE FACTOR K
3 CYCLE INTERRUPT
40 KA SHORT CIRCUIT
125 VDC CLOSE & TRIP
125 VDC MOTOR
BM-1 MECHANISM
CAPACITANCE CURRENT SWITCHING -
1.0 RATED OVERVOLTAGE FACTOR
100 AMP RATED LINE CHARGING CURRENT
755 AMP ISOLATED BANK/CABLE CURRENT
755 BACK TO BACK SHUNT CURRENT
25 KA INRUSH PEAK CURRENT
3360 HZ INRUSH FREQUENCY
4,600 LBS. TOTAL WEIGHT
52 LBS. GAS WEIGHT
71 PSIG NORMAL GAS PRESSURE
64 ALARM GAS PRESSURE
57 PSIG MINIMUM GAS PRESSURE
3 X 1200:5 MRCT'S, C800
3 X 2000:5 MRCT'S, C800
INSTRUCTION BOOK PEB0131
PARTS LIST PEB0132
WIRING DIAGRAM D301546
HEATER VOLTAGE 240 VAC
INSULATOR CREEP 72 INCHES
