5000/7000 KVA, Pri 44000 D, Sec 12470GRDY/7200, 1986, RE UPTEGRAFF, COPPER:1

JVT-3760:

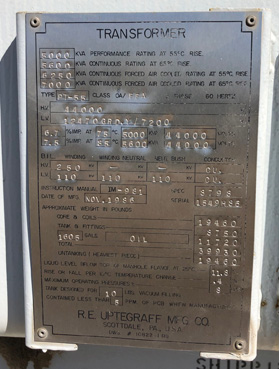

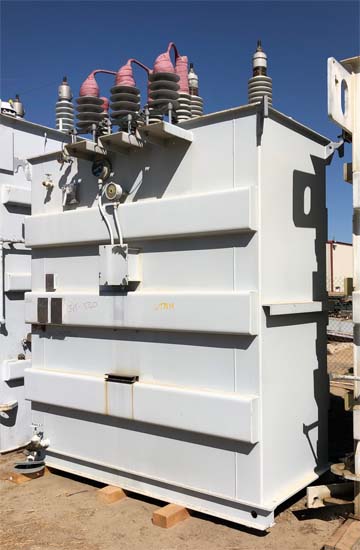

ONE (1) 5000/5600/6250/7000 KVA RE UPTEGRAFF SUBSTATION TRANSFORMER, TYPE
PT-55, 3 PHASE, 60 HERTZ, CLASS OA/FFA, 55/65 DEGREE C RISE, 6.7% &
7.5% IMPEDANCE, COPPER WINDINGS, TOP X TOP BUSHINGS, MFG. 1986,
S/N 1549H86, INSTRUCTION MANUAL IM-981

HIGH VOLTAGE: 44000 DELTA BIL: 250 KV
LOW VOLTAGE: 12470 GRDY/7200 BIL: 110 KV
TAPS: 46200-45100-44000-42900-41800

TOTAL WEIGHT: 39,930 LBS.
CORE & COILS: 19,460 LBS.
TANK & FIT.: 8,750 LBS.
OIL: 11,720 LBS. (1,605 GALS.)

DIMENSIONS: 155"H X 106"W X 46"D
