3000 KVA, Pri 43800 D, Sec 480 D, WESTINGHOUSE, ALUMINUM WINDINGS
SUBSTATION TRANSFORMER
Product Number:
042370
Full Product Description
JVT-3758:

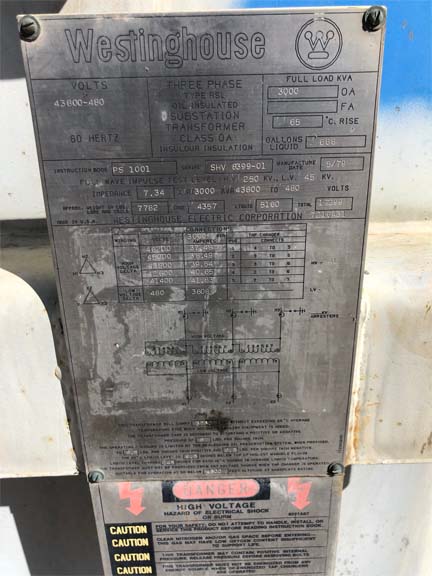

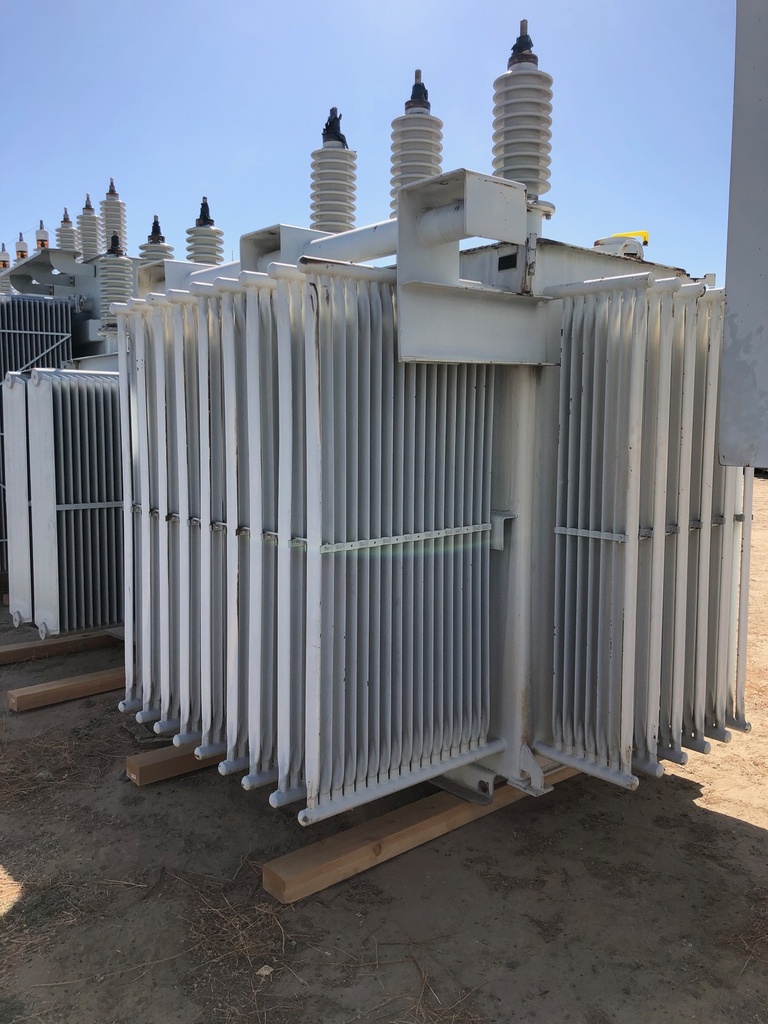

ONE (1) 3000 KVA WESTINGHOUSE SUBSTATION TRANSFORMER, TYPE RSL, 3 PHASE, 60
HERTZ, CLASS OA, 65 DEGREE C RISE, 7.34% IMPEDANCE, ALUMINUM WINDINGS,
TEMPERATURE GAUGE, LIQUID LEVEL GAUGE, PRESSURE RELIEF GAUGE, DRAIN &
SAMPLE VALVE, 48 KV ARRESTERS, HV TOP X LV FLANGE, S/N SHV 8399-01
HIGH VOLTAGE: 43800 DELTA BIL: 250 KV
LOW VOLTAGE: 480 DELTA BIL: 45 KV
TAPS: 46200-45000-43800-42600-41400
TOTAL WEIGHT: 17,299 LBS.
CORE & COILS: 7,782 LBS.
TANK & FIT.: 4,357 LBS.
OIL: 5,160 LBS. (688 GALS.)
