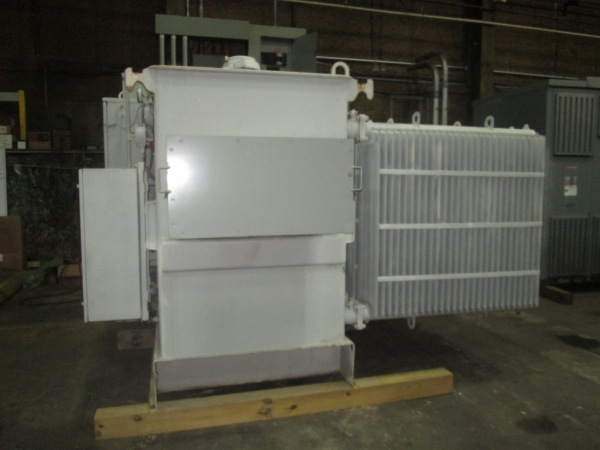

2500/3500 KVA, Pri 34500 D, Sec 480Y/277, GENERAL ELECTRIC, COPPER
SUBSTATION TRANSFORMER
Product Number:
042330
Full Product Description
JVT-3750:
ONE (1) 2500/2800/3125/3500 KVA GENERAL ELECTRIC SUBSTATION TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA/FA, 55/65 DEGREE C RISE, 7.10% IMPEDANCE,

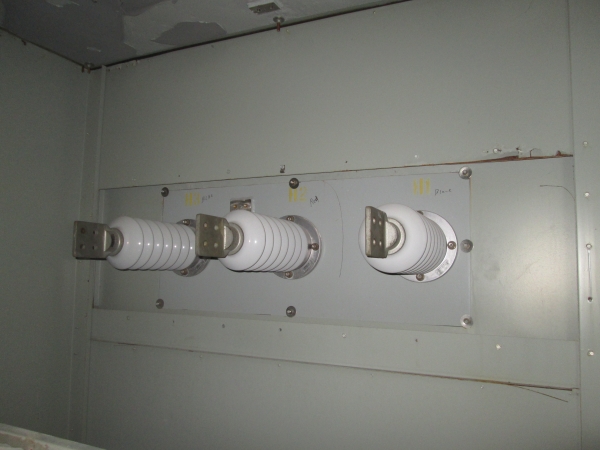

COPPER WINDINGS, 36 KV LIGHTNING ARRESTERS, SIDE X SIDE BUSHINGS,
SAMPLE/DRAIN VALVE, PRESSURE RELIEF VALVE, LIQUID LEVEL GAUGE,
TEMPERATURE GAUGE, SIDE X SIDE BUSHINGS, PARTIAL ATC HIGH SIDE,

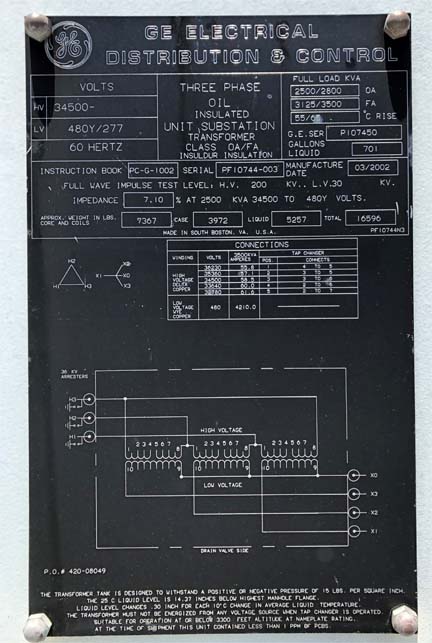

INST. BOOK PC-G-1002, S/N PF10744-003
HIGH VOLTAGE: 34500 DELTA BIL: 200 KV
LOW VOLTAGE: 480Y/277 BIL: 30 KV
TAPS: 36230-35360-34500-33640-32780
TOTAL WEIGHT: 16,596 LBS.
CORE & COILS: 7,367 LBS.
TANK & FIT.: 3,972 LBS.
OIL: 5,257 LBS. (701 GALS.)
DIMENSIONS: 94.7"H X 128"W X 117.3"L
SHIPPING: 92"H X 128"W X 99.9"L
ONE (1) 2500/2800/3125/3500 KVA GENERAL ELECTRIC SUBSTATION TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA/FA, 55/65 DEGREE C RISE, 7.10% IMPEDANCE,
COPPER WINDINGS, 36 KV LIGHTNING ARRESTERS, SIDE X SIDE BUSHINGS,
SAMPLE/DRAIN VALVE, PRESSURE RELIEF VALVE, LIQUID LEVEL GAUGE,
TEMPERATURE GAUGE, SIDE X SIDE BUSHINGS, PARTIAL ATC HIGH SIDE,
INST. BOOK PC-G-1002, S/N PF10744-003
HIGH VOLTAGE: 34500 DELTA BIL: 200 KV
LOW VOLTAGE: 480Y/277 BIL: 30 KV
TAPS: 36230-35360-34500-33640-32780
TOTAL WEIGHT: 16,596 LBS.
CORE & COILS: 7,367 LBS.
TANK & FIT.: 3,972 LBS.
OIL: 5,257 LBS. (701 GALS.)
DIMENSIONS: 94.7"H X 128"W X 117.3"L
SHIPPING: 92"H X 128"W X 99.9"L
