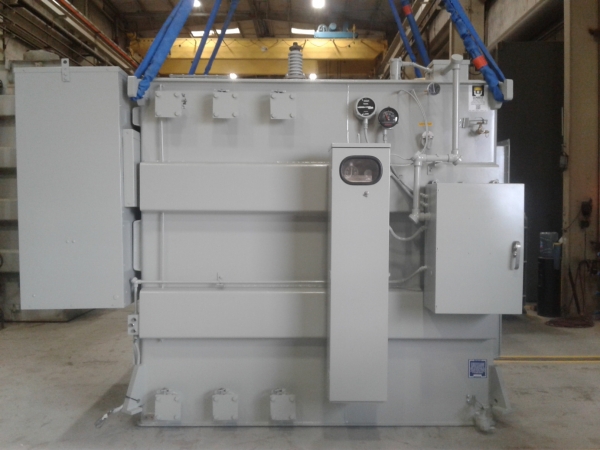

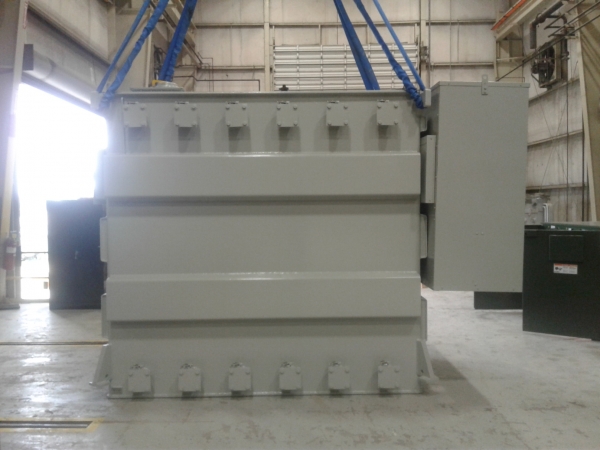

15000/22400 KVA, Pri 34500 D, Sec 4160Y/2402, GENERAL ELECTRIC

O
JVT-3749:

ONE (1) 15000/16800/20000/22400 KVA GENERAL ELECTRIC SUBSTATION TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS ONAF, 55/65 DEGREE C RISE, 5.41% IMPEDANCE,
COPPER WINDINGS, 3 X HV 600:5 MRCT'S, 1 X NEUTRAL 600:5 MRCT, 36 KV
LIGHTNING ARRESTERS, MFG. 2002, DRAIN & SAMPLE VALVE, DIAL TYPE
THERMOMETER WITH CONTACTS, LIQUID LEVEL GAUGE WITH CONTACTS, PRESSURE
VACUUM GAUGE, PRESSURE RELIEF DEVICE WITH CONTACTS, SUDDEN PRESSURE
RELAY, AUXILIARY CONTROL CABINET, INST. BOOK PC-G-1002, SIDE X SIDE

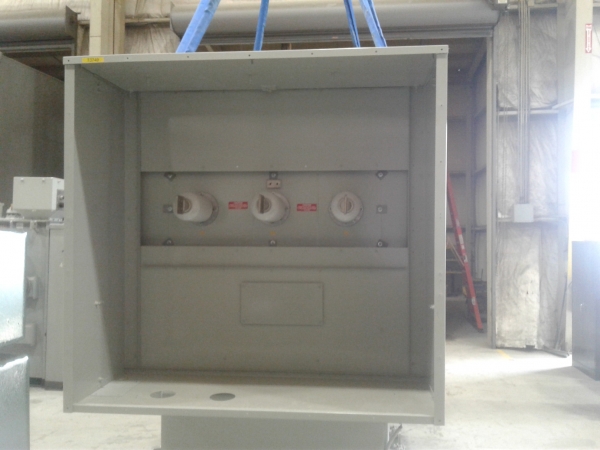

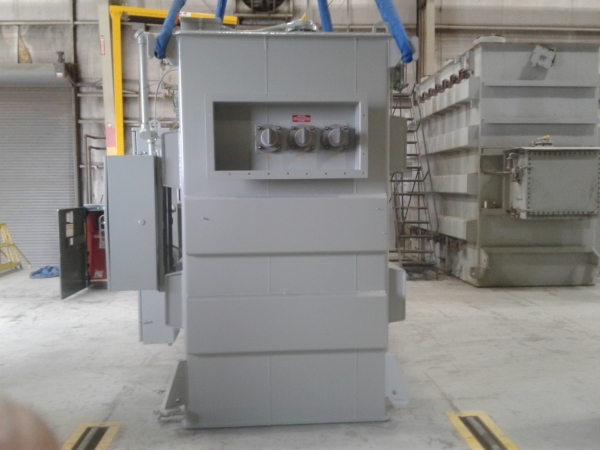

BUSHINGS, PARTIAL ATC ON HV SIDE, S/N HB10743-002

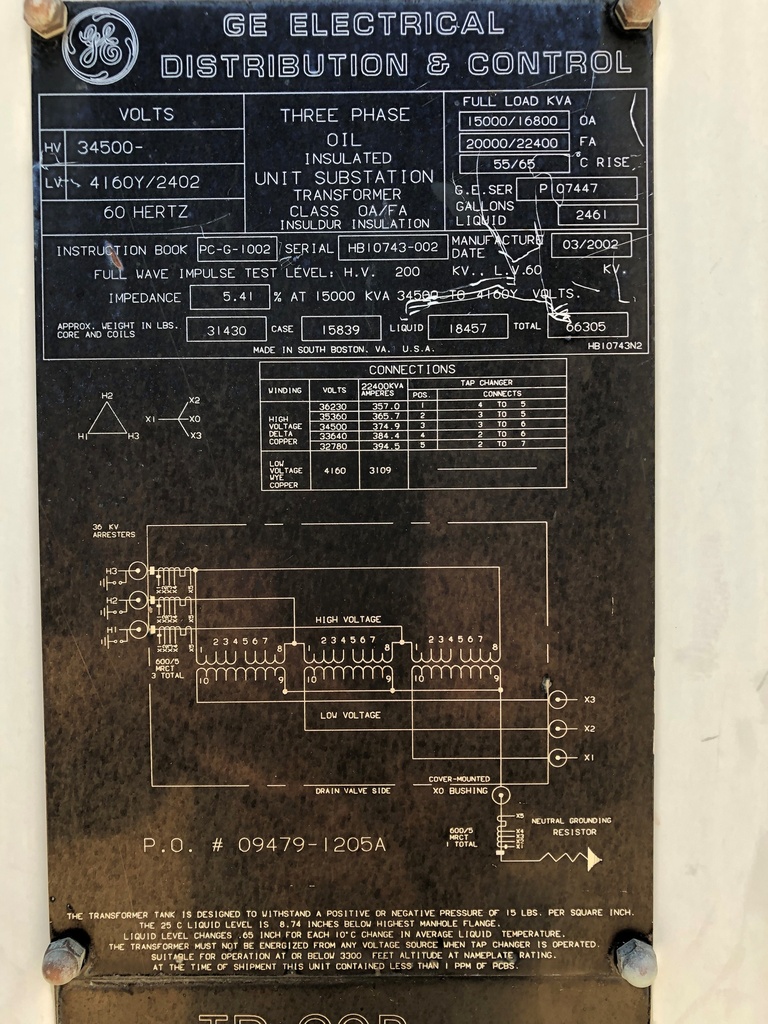

HIGH VOLTAGE: 34500 DELTA BIL: 200 KV
LOW VOLTAGE: 4160Y/2402 BIL: 60 KV
TAPS: 36230-35360-34500-33640-32780

TOTAL WEIGHT: 66,305 LBS.
CORE & COILS: 31,430 LBS.
TANK & FIT.: 15,839 LBS.
OIL: 18,457 LBS. (2,461 GALS.)
DIMENSIONS: 125"H X 154"W X 200"D
SHIPPING: 125"H X 86"W X 155"D
