1200 Amp, EATON/CUTLER HAMMER, 50VCPW-250, 4160 V., CABINET:1

CB-18840A & B:
2 X 2 HIGH COLUMNS:
CB-18840B (TOP MIDDLE LEFT)
1 X C20E1D1F2 MEGA 3 CPT W/1 X 3E AMP FUSES
CB-18840B (TOP MIDDLE RIGHT)
1 X 4200 V, 35:1, 45 KV BIL, P/N 7861A03H02, SINGLE 1E FUSE PT
1 X 4200 V, 35:1, 45 KV BIL, P/N 7861A03H02, DOUBLE 1E FUSE PT
1 X GE 750 FEEDER MOTOR MANAGEMENT RELAY
1 X BREAKER CONTROL SWITCH
1 X RED & GREEN INDICATING LIGHTS
CB-18840A (BOTTOM) -

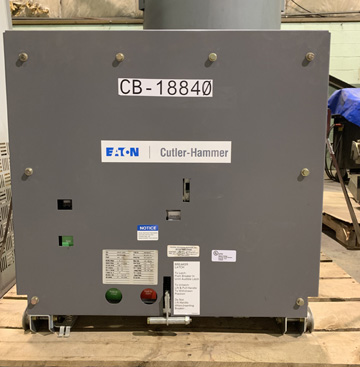

1 X 1200 AMP CUTLER HAMMER 50VCPW-250 VACUUM BREAKER AS A MAIN

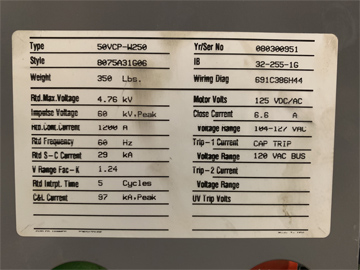

STYLE 8075A31606
4760 VOLTS
60 HERTZ
60 KV BIL
29 KA
VOLTAGE RANGE FACTOR K 1.24
5 CYCLE INTERRUPT
97 KA CLOSE & LATCH
125 VDC/AC MOTOR
120 VAC CLOSE
120 VAC CAP TRIP
S/N 080300951
MFG. 2008
350 LBS.
72 OPERATIONS
WIRING DIAG. 691C386H44
