500 KVA, Pri 4160 D, Sec 208Y/120, HEVI-DUTY, OUTDOOR:1
OUTDOOR DRY TYPE TRANSFORMER
Product Number:
042250
Full Product Description
T-5857:

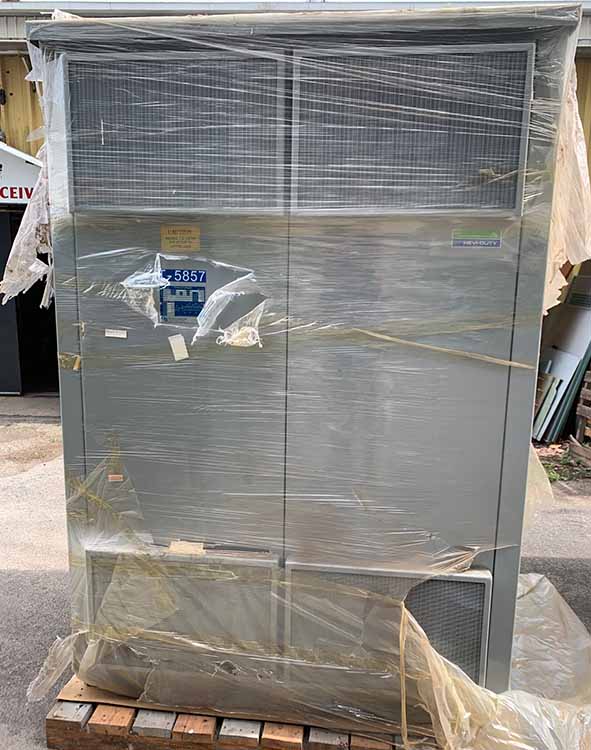

ONE (1) 500 KVA HEVI-DUTY OUTDOOR DRY TYPE TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS AA, 150 DEG. C RISE, 5.6% IMPEDANCE, HEATERS, THERMOSTAT,
S/N GM-459316

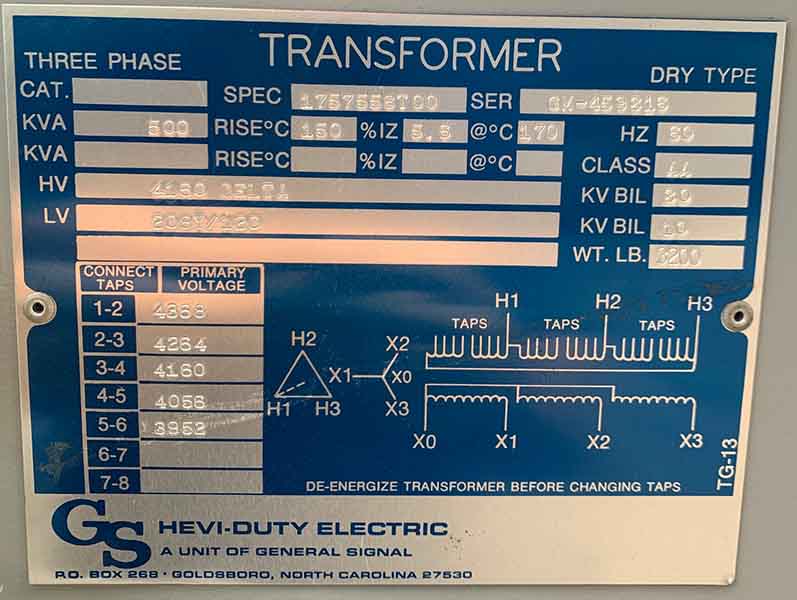

HIGH VOLTAGE: 4160 DELTA BIL: 30 KV
LOW VOLTAGE: 208Y/120 BIL: 10 KV
TAPS: 4368-4264-4160-4056-3952
TOTAL WEIGHT: 3,200 LBS.
DIMENSIONS: 90"H X 45"W X 62"L
