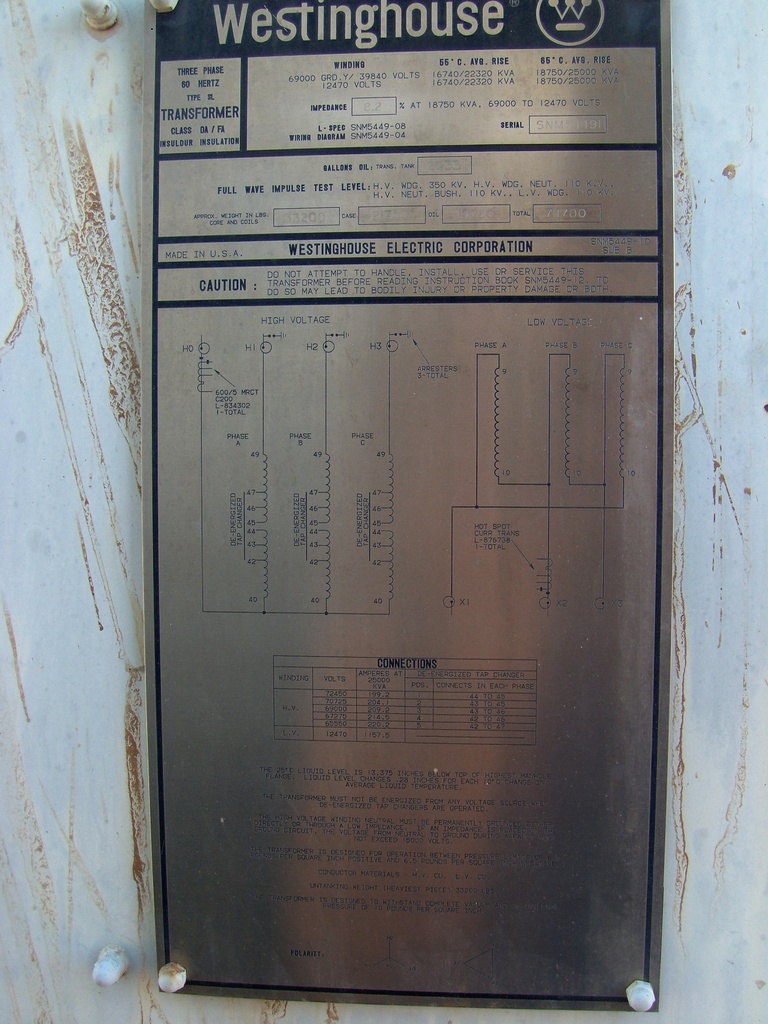

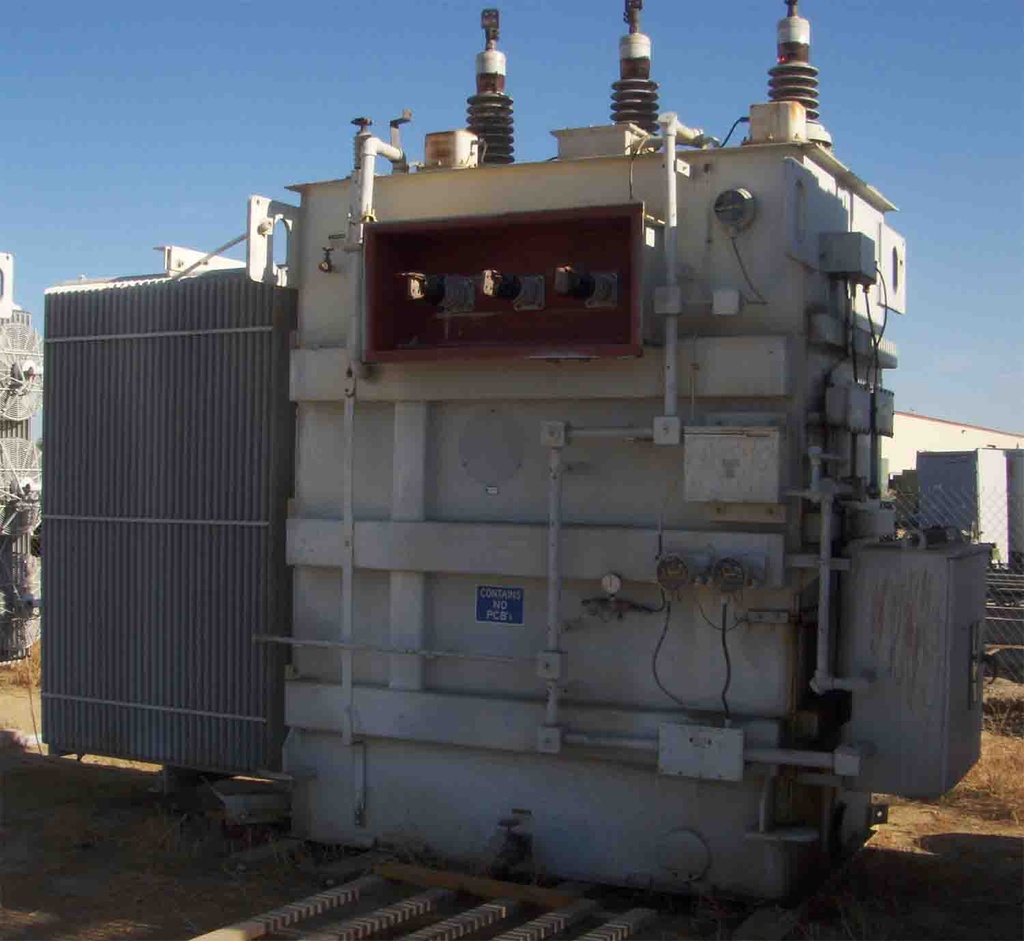

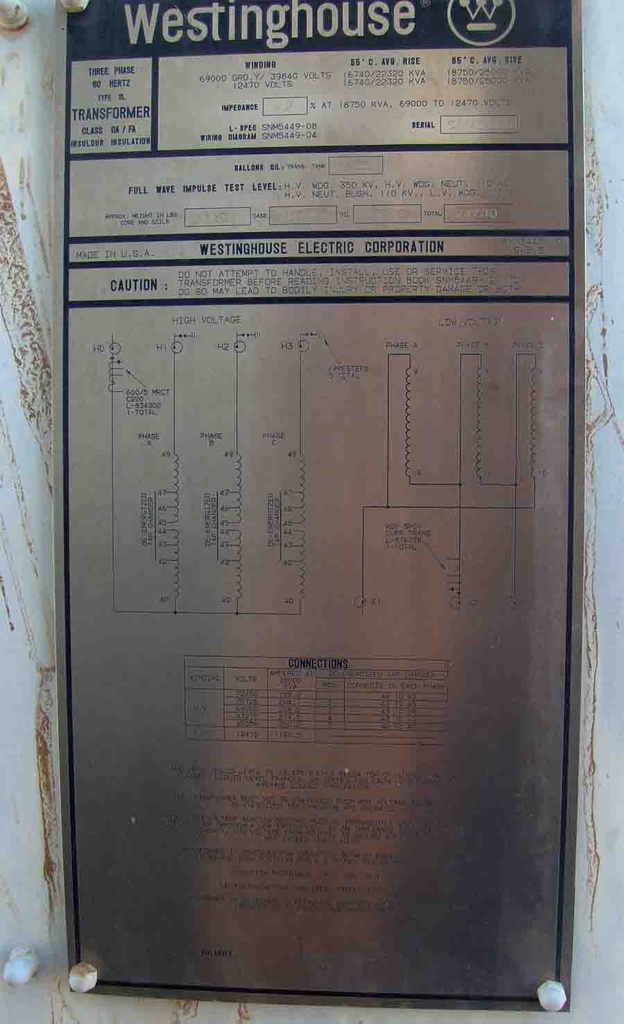

16740/25000 KVA, Pri 69000Y/39840, Sec 12470 D, WESTINGHOUSE, GSU, COPPER
GENERATOR STEP-UP TRANSFORMER
Product Number:
042151
Full Product Description
JVT-3745:
ONE (1) 16740/18750/22320/25000 KVA WESTINGHOUSE GENERATOR STEP-UP
TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS OA/FA, 55/65 DEG. C
RISE, 8.2% IMPEDANCE, COPPER WINDINGS, HIGH VOLTAGE TOP,
LOW VOLTAGE SIDE, 3 X HV ARRESTERS, 1 X 600:5 NEUTRAL MRCT,
CLASS C200, S/N SNM54491
HIGH VOLTAGE: 69000GRDY/39840 BIL: 350 KV
LOW VOLTAGE: 12470 DELTA BIL: 110 KV
TAPS: 72450-70725-69000-67275-65550
TOTAL WEIGHT: 74,700 LBS.
CORE & COILS: 33,200 LBS.
TANK & FIT.: 21,750 LBS.
OIL: 19,750 LBS. (2,633 GALS.)
SHIPPING DIMENSIONS: 144"W X 82"D X 141"H
FOOTPRINT: 104" X 62"
ONE (1) 16740/18750/22320/25000 KVA WESTINGHOUSE GENERATOR STEP-UP
TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS OA/FA, 55/65 DEG. C
RISE, 8.2% IMPEDANCE, COPPER WINDINGS, HIGH VOLTAGE TOP,
LOW VOLTAGE SIDE, 3 X HV ARRESTERS, 1 X 600:5 NEUTRAL MRCT,
CLASS C200, S/N SNM54491
HIGH VOLTAGE: 69000GRDY/39840 BIL: 350 KV
LOW VOLTAGE: 12470 DELTA BIL: 110 KV
TAPS: 72450-70725-69000-67275-65550
TOTAL WEIGHT: 74,700 LBS.
CORE & COILS: 33,200 LBS.
TANK & FIT.: 21,750 LBS.
OIL: 19,750 LBS. (2,633 GALS.)
SHIPPING DIMENSIONS: 144"W X 82"D X 141"H
FOOTPRINT: 104" X 62"
