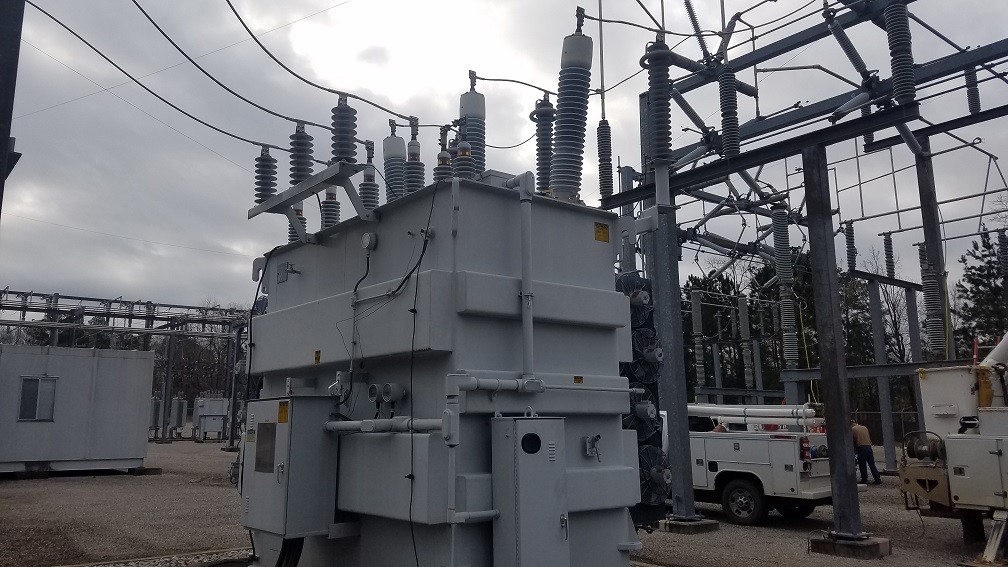

22500/42000 KVA, Pri 154000GRDY/88910, Sec 46000GRDY/26560, WAUKESHA, AUTO:1

ONE (1) 22500/25200/30000/33600/37500/42000 WAUKESHA AUTOTRANSFORMER, 3 PHASE,
60 HERTZ, CLASS ONAN/ONAF/ONAF, 55/65 DEGREE RISE, 8.93% IMPEDANCE,
COPPER WINDINGS, 3 X 600:5 HV MRCT'S C400, 6 X 600:5 LV MRCT'S C400,
1 X 1200:5 NEUTRAL MRCT C400, TOP X TOP BUSHINGS

HIGH VOLTAGE: 154000GRDY/88910 BIL: 650 KV
LOW VOLTAGE: 46000GRDY/26560 BIL: 250 KV
TERTIARY: 13200 DELTA BIL: 250 KV
@ 35% MVA RATED - BURIED FOR HARMONIC SUPRESSION

TOTAL WEIGHT: 130,200 LBS.
CORE & COILS: 45,900 LBS.
TANK & FIT.: 35,025 LBS.
MAIN TANK OIL: 6,127 GALS.
RADIATOR OIL: 443 GALS.
OIL TOTAL 49,275 LBS. (6,570 GALS.)
