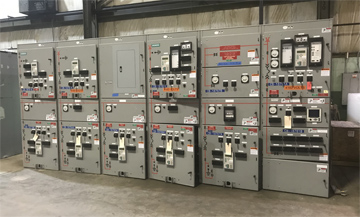

2000 Amp, SIEMENS, 5 KV, INDOOR SWITCHGEAR LINE-UP

CB-18761A THRU CB-18767A, & CB-18769A & CB-18770A

6 COLUMNS OF 2000 AMP SIEMENS 5 KV INDOOR SWITCHGEAR

COLUMN 1:
FUTURE COMPARTMENT (CB-18769A)
1 X 50:5 CT
3 X 800:5 CT'S
3 X 2000:5 CT'S
1 BREAKER CONTROL HANDLE
3 X INDICATING LIGHTS
1 X SCADA SWITCH
1 X LOCK-OUT RELAY WITH LIGHTS
1 X SIEMENS 75J62 RELAY
LOW VOLTAGE COMPARTMENT
1 X 1200 AMP SIEMENS 05-GMSG-0063-1200-164 FEEDER BREAKER COMPARTMENT
(CB-18770)
1 X 50:5 CT
3 X 800:5 CT'S
3 X 2000:5 CT'S
1 X BREAKER CONTROL HANDLE
3 X INDICTING LIGHTS
1 X SCADA SWITCH
1 X LOCK-OUT RELAY WITH LIGHTS
1 X SIEMENS 75J62 RELAY

COLUMN 2:
1 X 2000 AMP SIEMENS 05-GMSG-0063-2000-164 TIE BREAKER COMPARTMENT (CB-18763)
9 X 2000:5 CT'S
1 X BREAKER CONTROL HANDLE
3 X INDICATING LIGHTS
1 X SCADA SWITCH
1 X LOCK-OUT RELAY WITH LIGHTS
1 X SIEMENS 75J62 RELAY
LOW VOLTAGE COMPARTMENT
1 X 1200 AMP SIEMENS 05-GMSG-0063-1200-164 FEEDER BREAKER COMPARTMENT
(CB-18764)
1 X 50:5 CT
3 X 800:5 CT'S
3 X 2000:5 CT'S
1 X BREAKER CONTROL HANDLE
3 X INDICATING LIGHTS
1 X SCADA SWITCH
1 X LOCK-OUT RELAY WITH LIGHTS
1 X SIEMENS 75J62 RELAY

COLUMN 3:
AUXILIARY CONTROL PANEL COMPARTMENT
LOW VOLTAGE COMPARTMENT
1 X 1200 AMP SIEMENS 05-GMSG-0063-1200-164 FEEDER BREAKER COMPARTMENT
(CB-18765)
1 X 50:5 CT
3 X 800:5 CT'S
3 X 2000:5 CT'S
1 X BREAKER CONTROL HANDLE
3 X INDICATING LIGHTS
1 X SCADA SWITCH
1 X LOCK-OUT RELAY WITH LIGHTS
1 X SIEMENS 75J62 RELAY

COLUMN 4:
1 X 2000 AMP SIEMENS 05-GMSG-0063-2000-164 TIE BREAKER COMPARTMENT (CB-18762)
9 X 2000:5 CT'S
1 X BREAKER CONTROL HANDLE
3 X INDICATING LIGHTS
1 X SCADA SWITCH
1 X LOCK-OUT RELAY WITH LIGHTS
1 X SIEMENS 75J62 RELAY
1 X ABB SYNC CHECK RELAY
1 X BE87B BASLER BUS DIFFERENTIAL RELAY
LOW VOLTAGE COMPARTMENT
1 X 1200 AMP SIEMENS 05-GMSG-0063-1200-164 FEEDER BREAKER COMPARTMENT
(CB-18766)
1 X 50:5 CT
3 X 800:5 CT'S
3 X 2000:5 CT'S
1 X BREAKER CONTROL HANDLE
3 X INDICATING LIGHTS
1 X SCADA SWITCH
1 X LOCK-OUT RELAY WITH LIGHTS
1 X SIEMENS 75j62 RELAY

COLUMN 5:
PT'S COMPARTMENT (CB-18767B)
1 X 15 KVA CPT COMPARTMENT
LINE SIDE VOLT METER
LOAD SIDE VOLT METER
LOW VOLTAGE COMPARTMENT
1 X 1200 AMP SIEMENS 05-GMSG-0063-1200-164 FEEDER BREAKER COMPARTMENT
(CB-18767)
1 X 50:5 CT
3 X 800:5 CT'S
3 X 2000:5 CT'S
1 X BREAKER CONTROL HANDLE
3 X INDICATING LIGHTS
1 X SCADA SWITCH
1 X LOCK-OUT RELAY WITH LIGHTS
1 X SIEMENS 75J62 RELAY

COLUMN 6:

1 X 2000 AMP SIEMENS 05-GMSG-0063-2000-164 MAIN BREAKER COMPARTMENT (CB-18761)
9 X 2000:5 CT'S
1 X BREAKER CONTROL HANDLE
3 X INDICATING LIGHTS
1 X SCADA SWITCH
1 X LOCK-OUT RELAY WITH LIGHTS
1 X SIEMENS 75J62 RELAY
1 X ABB SYNC CHECK RELAY
1 X BE87B BASLER BUS DIFFERENTIAL RELAY
1 X BASLER 87T RELAY
LOW VOLTAGE COMPARTMENT
3 X PT'S (CB-18761B)
EMPTY COMPARTMENT
