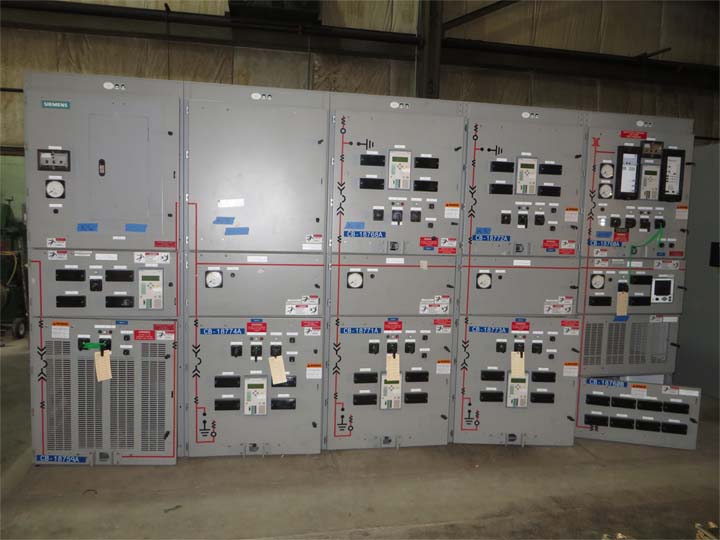

3000 Amp, SIEMENS, 5 KV, INDOOR SWITCHGEAR LINE-UP

CB-18760A, CB-18768A, CB-18771A THRU CB-18773A:

3000 AMP SIEMENS 5 KV INDOOR SWITCHGEAR

1 X 1200 AMP SIEMENS 05-GMSG-0063-1200-164 FEEDER BREAKER COMPARTMENT
(CB-18768)
1 X 50:5 CT
3 X 800:5 CT'S
3 X 3000:5 CT'S
1 X BREAKER CONTROL HANDLE
3 X INDICATING LIGHTS
1 X SCADA SWITCH
1 X LOCK-OUT RELAY WITH LIGHTS
1 X SIEMENS 75J62 RELAY
1 X 1200 AMP SIEMENS 05-GMSG-0063-1200-164 FEEDER BREAKER COMPARTMENT
(CB-18771)
1 X 50:5 CT
3 X 800:5 CT'S
3 X 3000:5 CT'S
1 X BREAKER CONTROL HANDLE
3 X INDICATING LIGHTS
1 X SCADA SWITCH
1 X LOCK-OUT RELAY WITH LIGHTS
1 X SIEMENS 75J62 RELAY

1 X 1200 AMP SIEMENS 05-GMSG-0063-1200-164 FEEDER BREAKER COMPARTMENT
(CB-18772)
1 X 50:5 CT
3 X 800:5 CT'S
3 X 3000:5 CT'S
1 X BREAKER CONTROL HANDLE
3 X INDICATING LIGHTS
1 X SCADA SWITCH
1 X LOCK-OUT RELAY WITH LIGHTS
1 X SIEMENS 75J62 RELAY
LOW VOLTAGE COMPARTMENT
1 X 1200 AMP SIEMENS 05-GMSG-0063-1200-164 FEEDER BREAKER COMPARTMENT
(CB-18773)
1 X 50:5 CT
3 X 800:5 CT'S
3 X 3000:5 CT'S
1 X BREAKER CONTROL HANDLE
3 X INDICATING LIGHTS
1 X SCADA SWITCH
1 X LOCK-OUT RELAY WITH LIGHTS
1 X SIEMENS 75J62 RELAY

1 X 3000 AMP SIEMENS 05-GMSG-0063-3000-164 MAIN BREAKER COMPARTMENT (CB-18760)
9 X 3000:5 CT'S
1 X BREAKER CONTROL HANDLE
3 X INDICATING LIGHTS
1 X SCADA SWITCH
1 X LOCK-OUT RELAY WITH LIGHTS
1 X SIEMENS 75J62 RELAY
1 X ABB SYN CHECK RELAY
1 X BASLER BUS DIFFERENTIAL BE-87B RELAY
1 X BASLER 87T RELAY
LOW VOLTAGE COMPARTMENT
EMPTY AUXILIARY COMPARTMENT
PT'S COMPARTMENT (CB-18760B)
