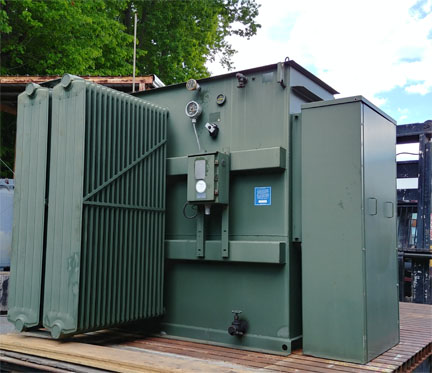

5/5.6/6.2/7 MVA Pri 23000 D, Sec 4160Y/2400, COOPER, MINERAL OIL SUB
SUBSTATION TRANSFORMER
Product Number:
042123
Full Product Description
T-5836
ONE (1) 5000/5600/6250/7000 KVA COOPER SUBSTATION, MINERAL OIL,
55/65 DEG. C RISE, CLASS OA/FFA, 6.60 % IMPEDANCE, 60 HERTZ,
ALUMINUM WINDINGS, FULL LENGTH AIR TERMINAL CHAMBER,
LIQUID LEVEL GAUGE, LIQUID TEMPERATURE GAUGE, VACUUM
PRESSURE GAUGE, SAMPLE/DRAIN VALVE,

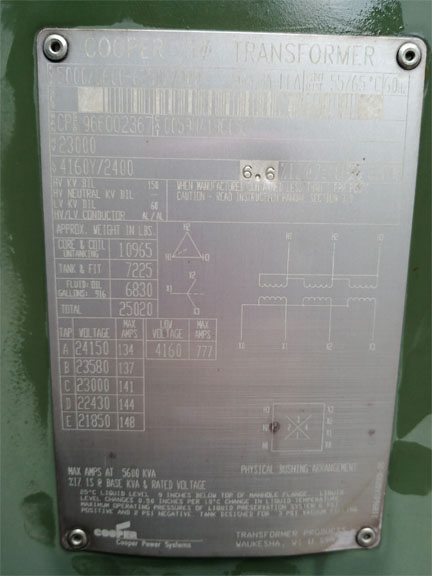

CAT. #0059NA18C05S, HV: ANSI 2 LV: ANSI 4
HIGH VOLTAGE: 23000D BIL: 150 KV
LOW VOLTAGE: 4160Y/2400 BIL: 60 KV
TAPS: 24150-23580-23000-22430-21850
TOTAL WEIGHT: 25,020 LBS
CORE & COIL: 10,965 LBS
TANK & FITTINGS: 7,225 LBS
GAL. (916) 6,830 LBS
DIMENSIONS: 89"H X 122.5"D X 126"W
