1000 KVA, Pri 34500GRDY/19920, Sec 208Y/120, RTE, LIVE/RADIAL:1
PADMOUNT TRANSFORMER
Product Number:
042121
Full Product Description
T-5847:

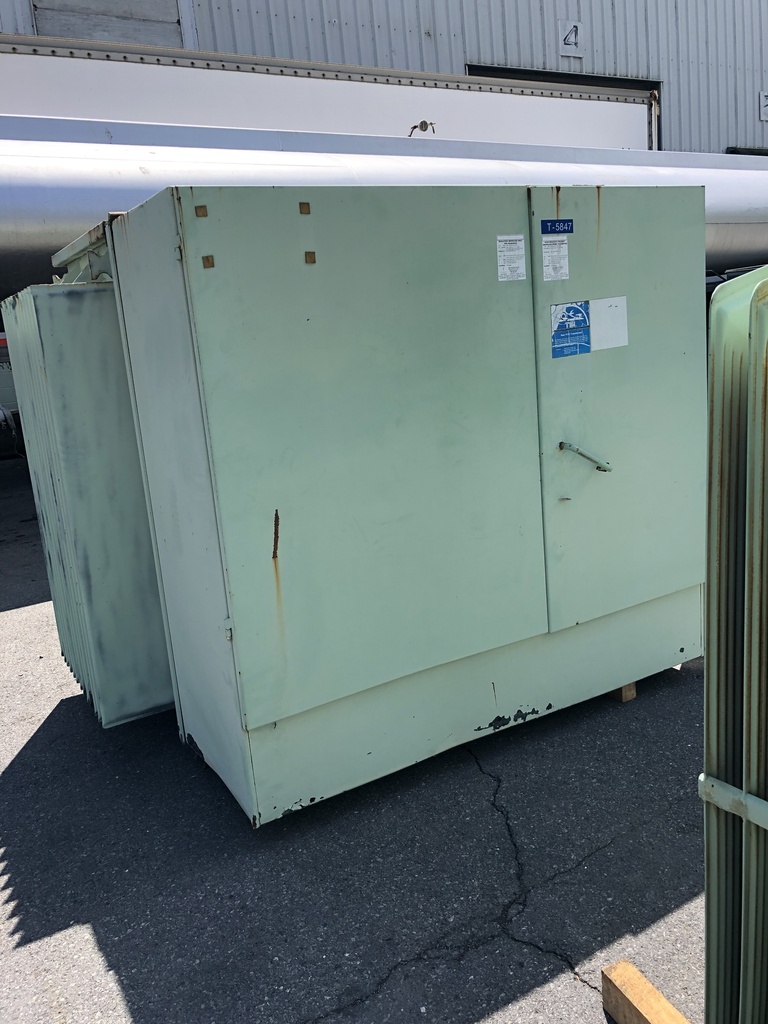

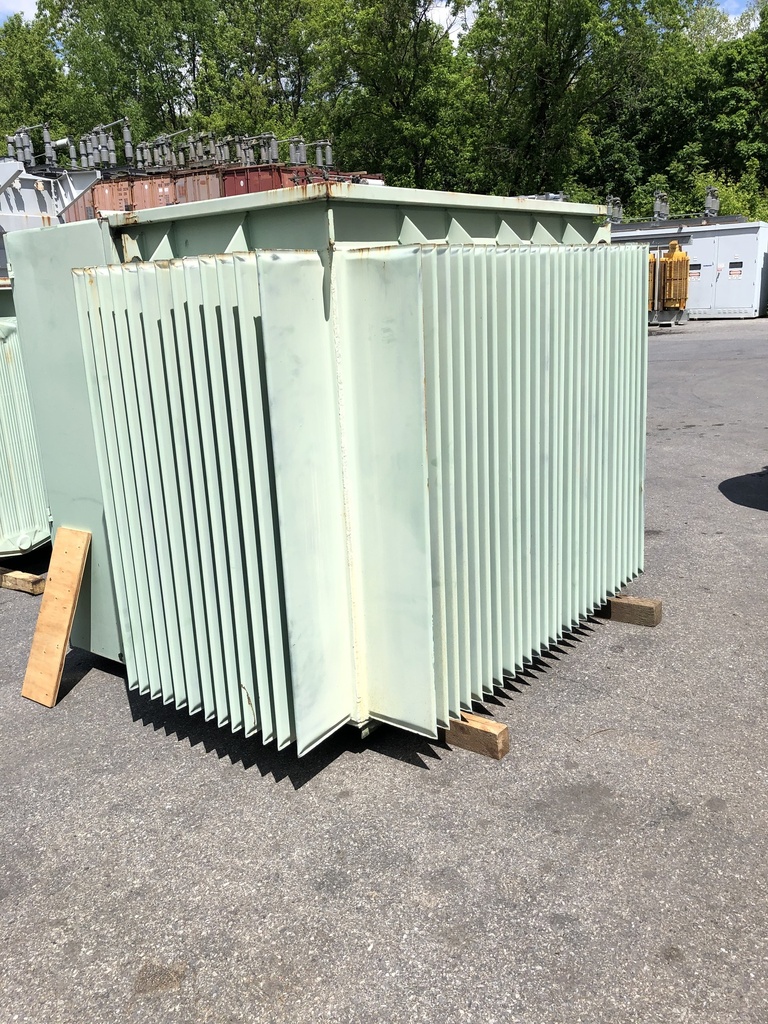

ONE (1) 1000 KVA RTE COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE, 60 HZ,

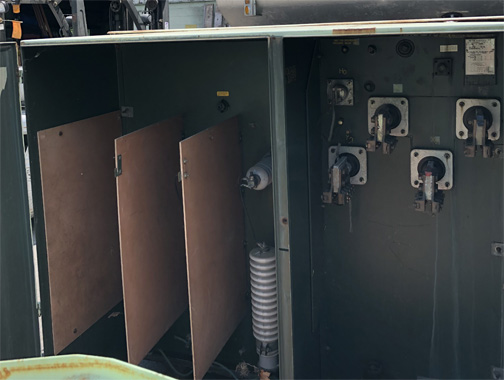

CLASS OA, 85 DEG. C RISE, 6.3% IMPEDANCE, LIVE FRONT, RADIAL FEED,

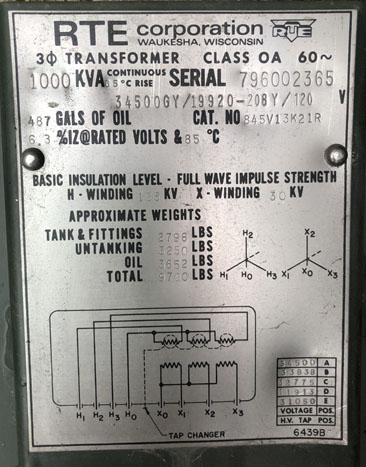

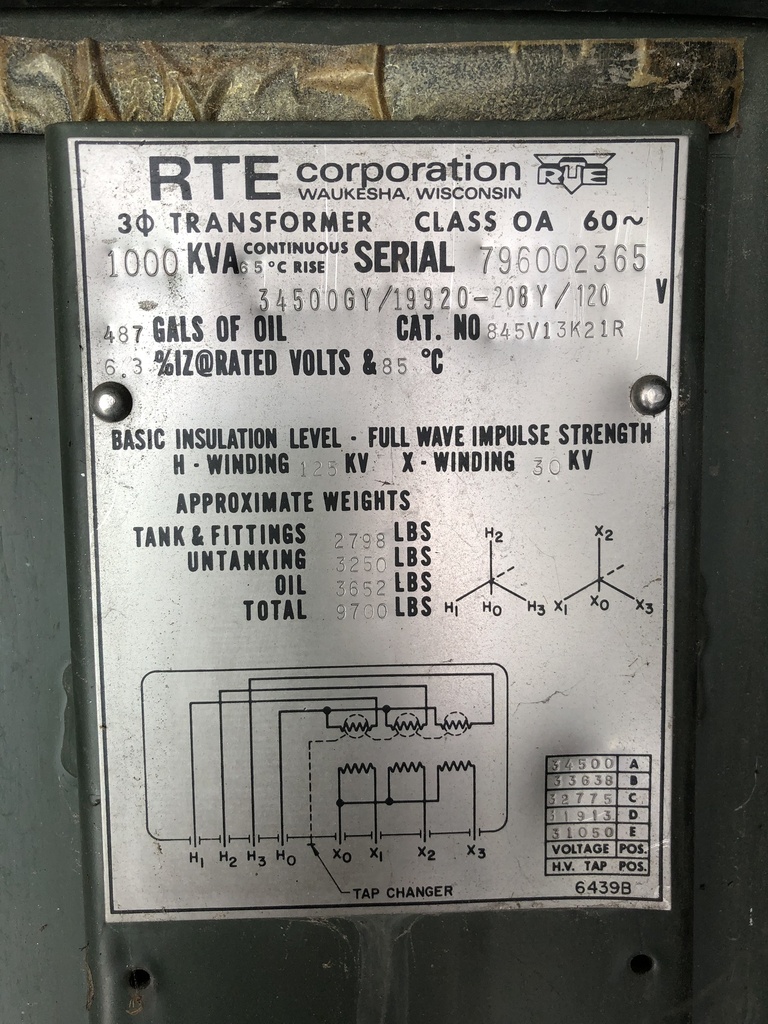

S/N 796002365

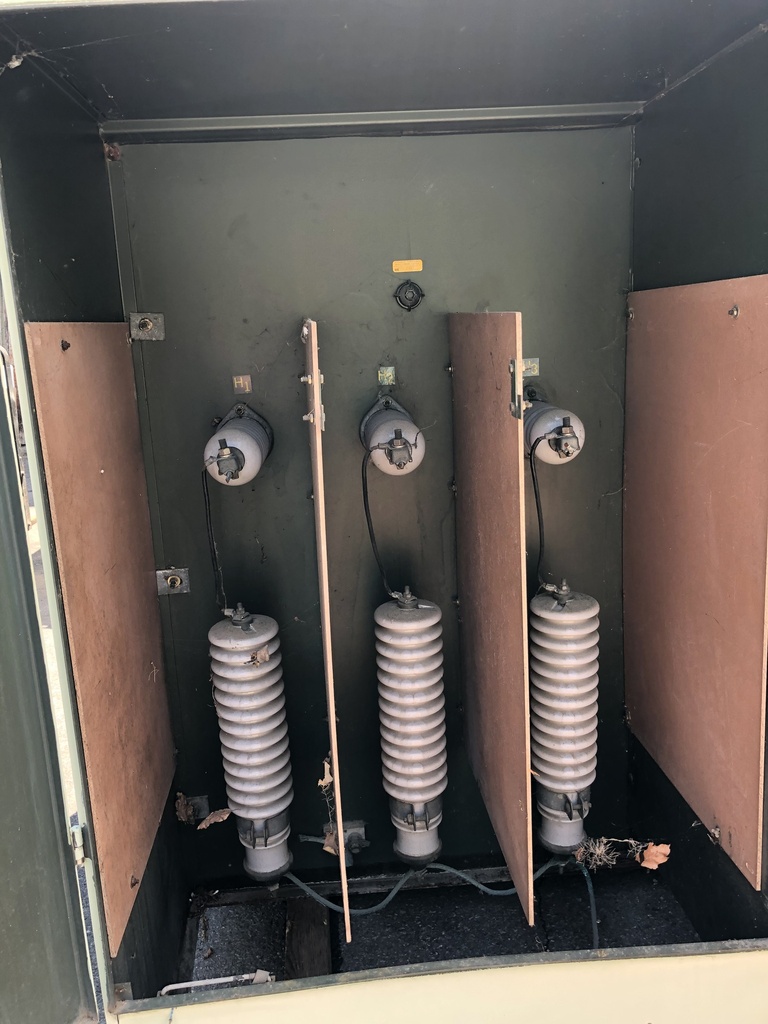

HIGH VOLTAGE: 34500GRDY/19920 BIL: 125 KV

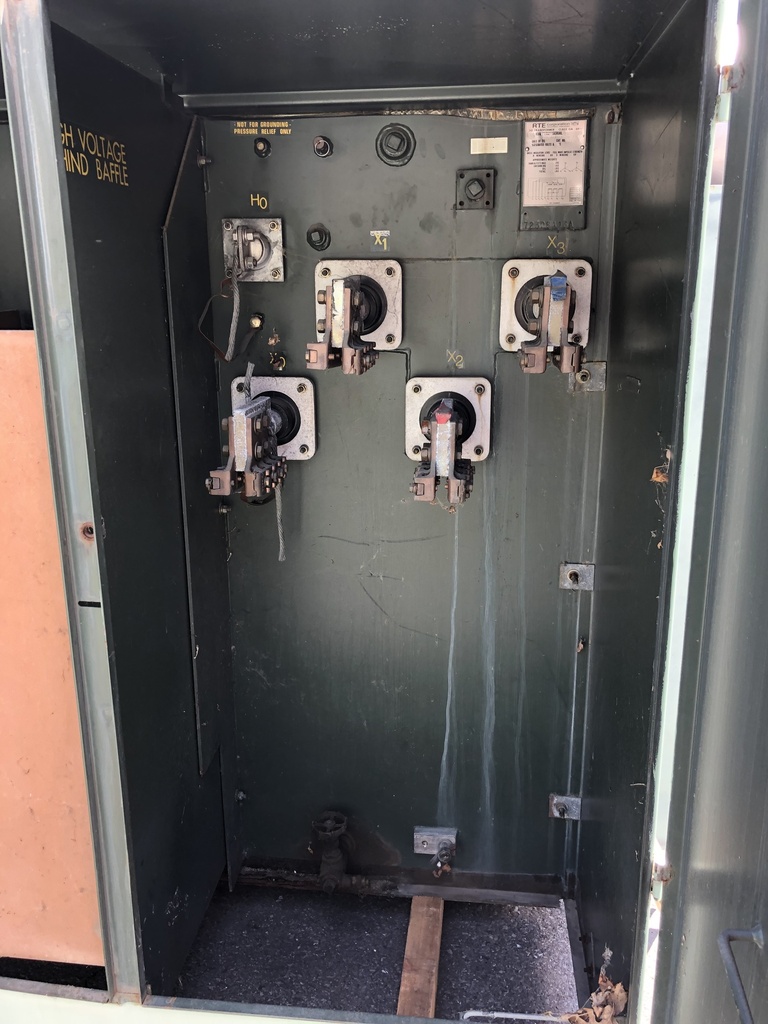

LOW VOLTAGE: 208Y/120 BIL: 30 KV
TAPS: 34500-33638-32775-31913-31050
TOTAL WEIGHT: 9,700 LBS.
CORE & COILS: 3,250 LBS.
TANK & FIT.: 2,798 LBS.
OIL: 3,652 LBS. (487 GALS.)
DIMENSIONS: 63 1/4"H X 83 1/4"W X 70"D
