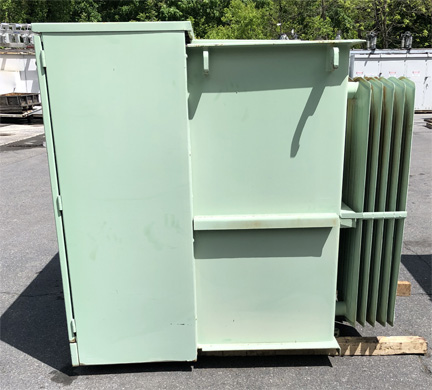

750 KVA, Pri 34500GRDY/19920, Sec 208Y/120, GENERAL ELECTRIC, LIVE/RADIAL:1
PADMOUNT TRANSFORMER
Product Number:
042119
Full Product Description
T-5845:

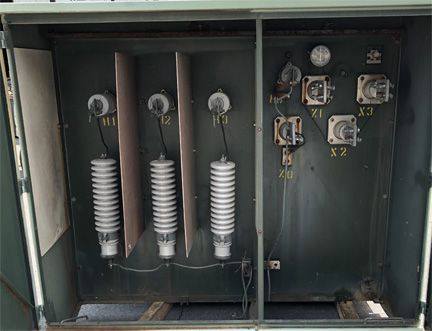

ONE (1) 750 KVA GENERAL ELECTRIC COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3
PHASE, 60 HERTZ, CLASS OA, 65 DEG. C RISE, 5.75% IMPEDANCE, LIVE
FRONT, RADIAL FEED, S/N L465514TCLA
HIGH VOLTAGE: 34500GRDY/19920 BIL: 125 KV
LOW VOLTAGE: 208Y/120 BIL: 30 KV
TAPS: 36225-35363-34500-33638-32775
TOTAL WEIGHT: 6,100 LBS.
CORE & COILS: 2,600 LBS.
TANK & FIT.: 1,800 LBS.
OIL: 1,700 LBS. (240 GALS.)
DIMENSIONS: 61 1/2"H X 70 3/4"W X 63 1/2"D
