1000 KVA, Pri 13800Y/7970, Sec 480 D, ABB, DEAD FRONT/RADIAL FEED
PADMOUNT TRANSFORMER
Product Number:
042083
Full Product Description
T-5840

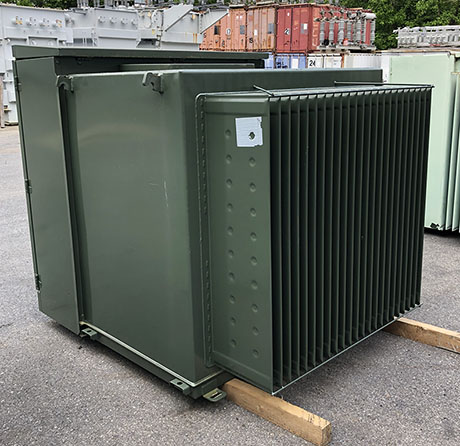

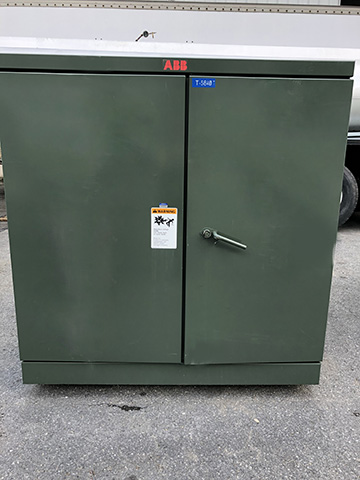

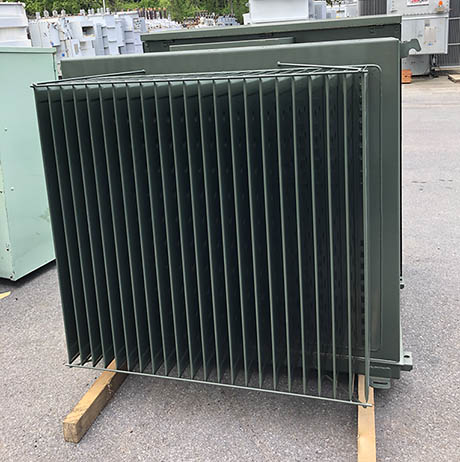

ONE (1) 1000 KVA ABB PADMOUNT TRANSFORMER, 3 PAHSE, CLASS ONAN,
3.03% IMPEDANCE, 60 HERTZ, 65 DEG. C, ALUMINUM WINDINGS,

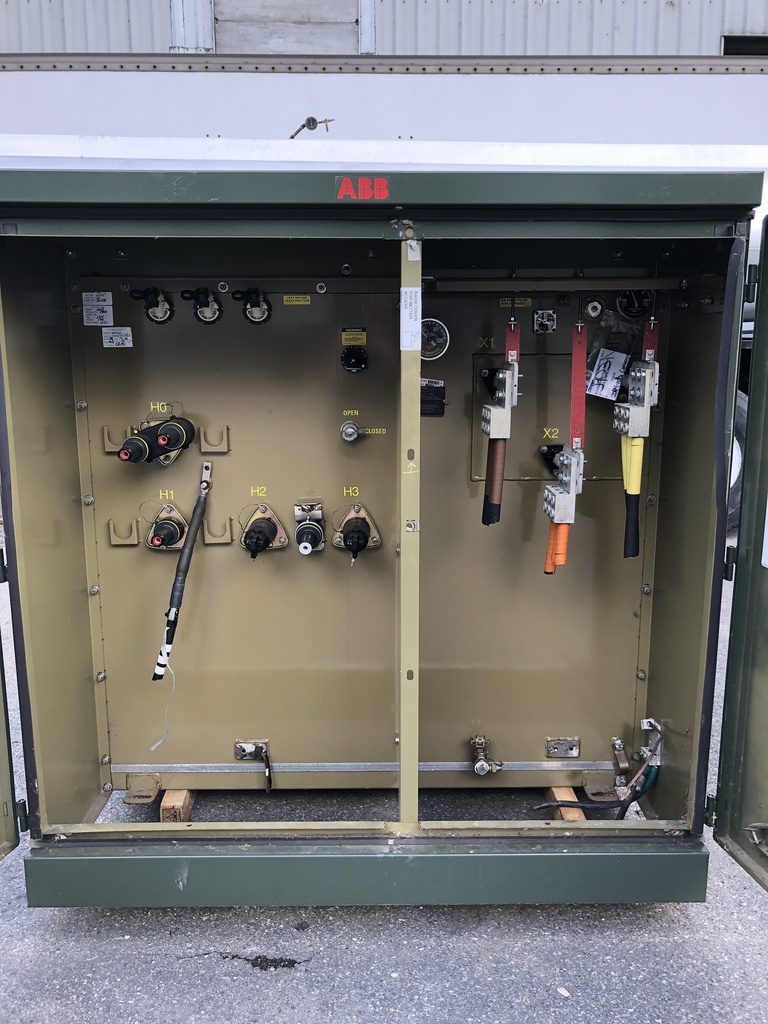

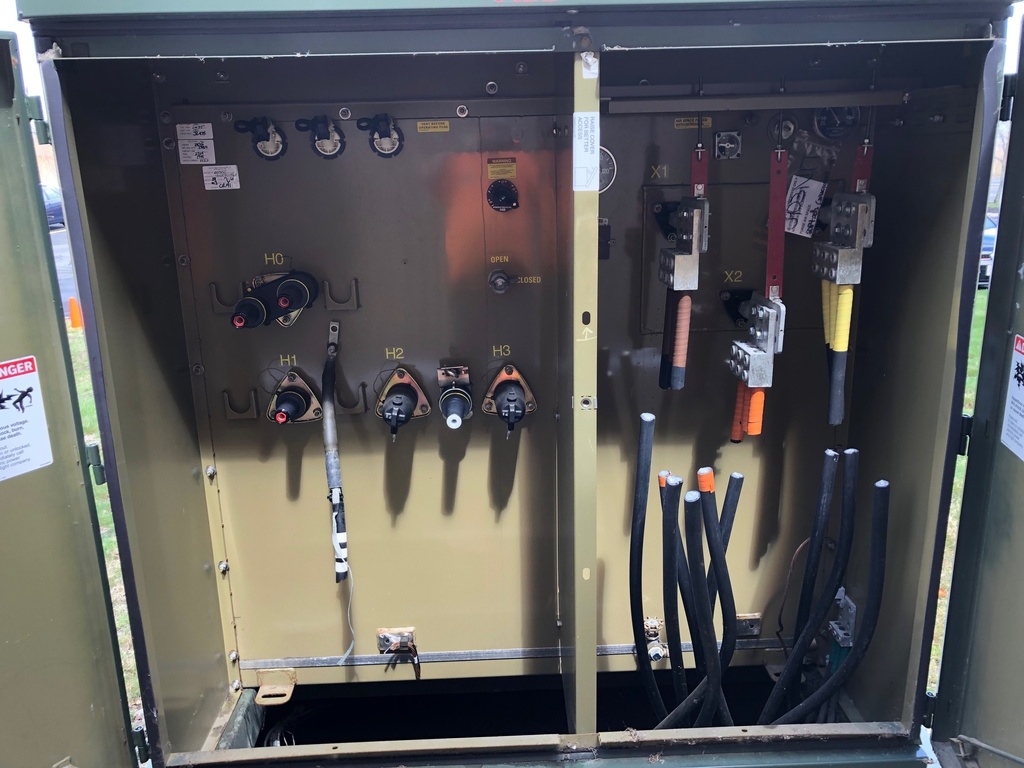

DEAD FRONT, RADIAL FEED, STYLE F81H017T3G, UL LISTED

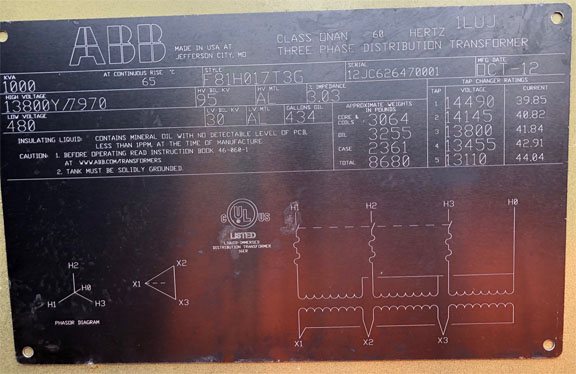

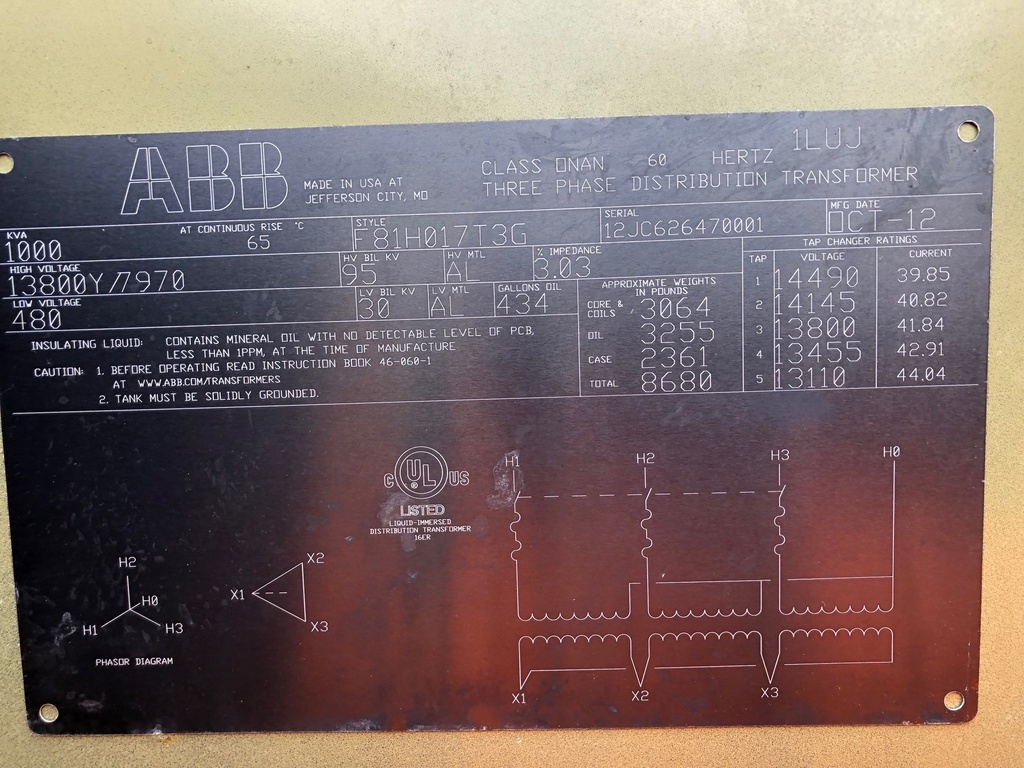

HIGH VOLTAGE: 13800Y/7970 BIL: 95 KV
LOW VOLTAGE: 480 DELTA BIL: 95 KV
TAPS: 14490-14145-13800-13455-13110
TOTAL WEIGHT: 8,680 LBS
CORE & COILS: 3,064 LBS
TANK & FITTINGS: 2,361 LBS
GAL. (434): 3,255 LBS
DIMENSIONS: 64"H X 63"W X 72 1/2"D Low Voltage Bushing (X0, X2): 40" (X1, X3): 47" High Voltage Bushings: 32"
