  2. 10000/11200 KVA, Pri 12470 D, Sec 4160Y/2400, 2014, VANTRAN, LIVE, RADIAL,COPPER

10000/11200 KVA, Pri 12470 D, Sec 4160Y/2400, 2014, VANTRAN, LIVE, RADIAL,COPPER

https://belyeapower.redstormlabs.com/web/image/product.template/31664/image_1920?unique=e118c1b

PADMOUNT TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 042057
    Request Quote

    Full Product Description

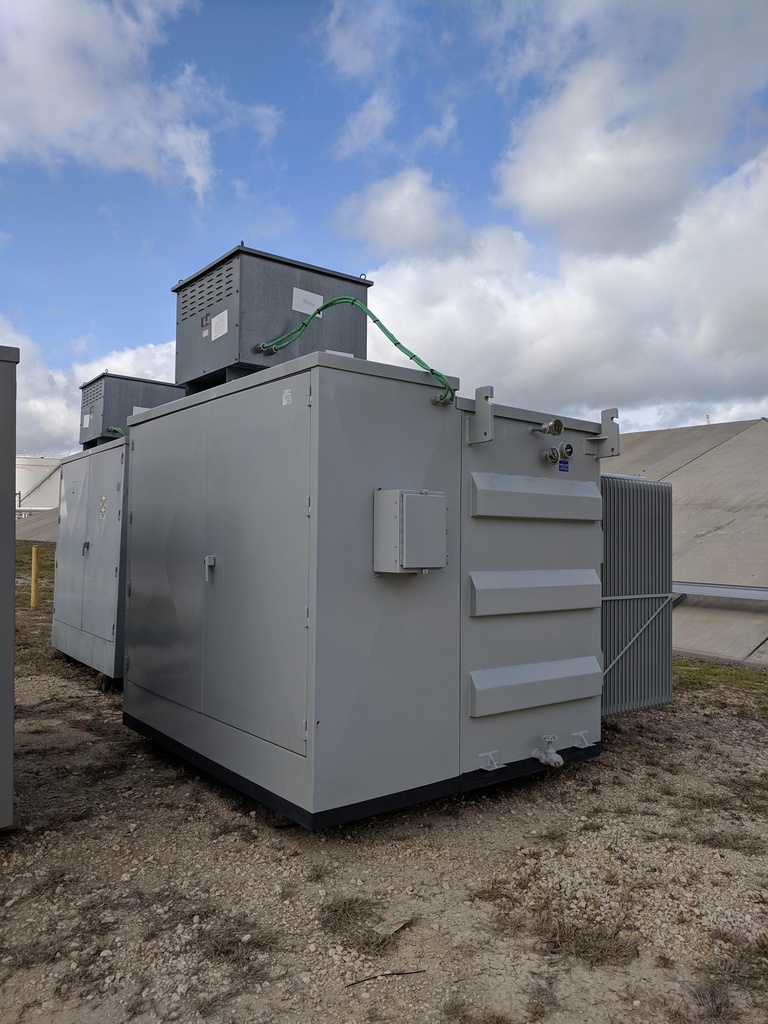

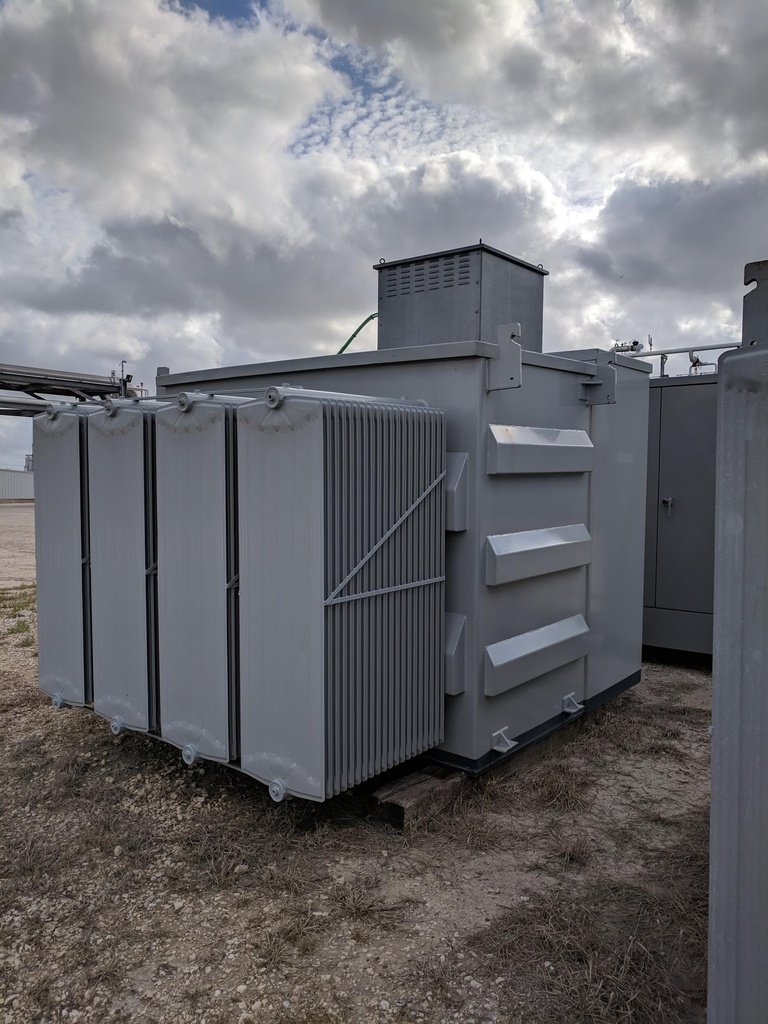

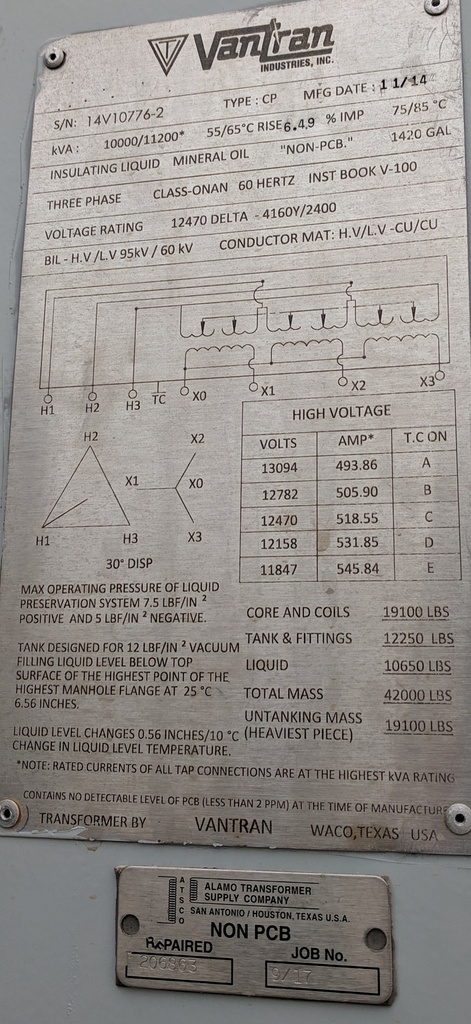

    ONE (1) 10000/11200 KVA VANTRAN COMPARTMENTALIZED PADMOUNT TRANSFORMER,
    3 PHASE, 60 HERTZ, CLASS 55/65 DEG. C RISE, CLASS ONAN, 6.49%
    IMPEDANCE, LIVE FRONT, RADIAL FEED, COPPER WINDINGS, MFG. 11/2014,
    S/N 14V10776-2, GROUNDING RESISTOR

    HIGH VOLTAGE: 12470 DELTA BIL: 95 KV
    LOW VOLTAGE: 4160Y/2400 BIL: 60 KV
    TAPS: 13094-12782-12470-12158-11847

    TOTAL WEIGHT: 42,000 LBS.
    CORE & COILS: 19,100 LBS.
    TANK & FIT.: 12,250 LBS.
    LIQUID: 10,650 LBS. (1,420 GALS.)
