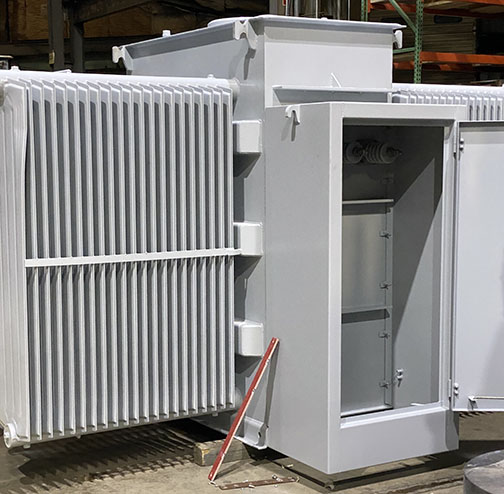

2500 KVA, Pri 12470 D, Sec 480Y/277, 2001, ALSTOM, SIDE X SIDE BUSHINGS:1
SUBSTATION TRANSFORMER
Product Number:
042049
Full Product Description
JVT-3740

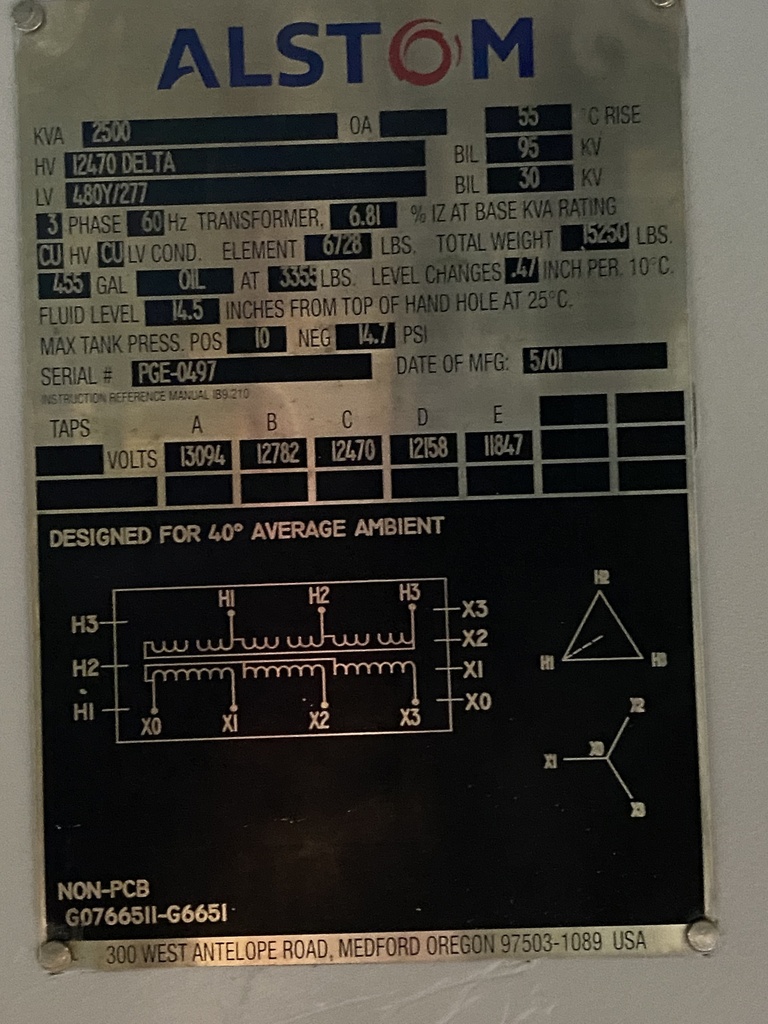

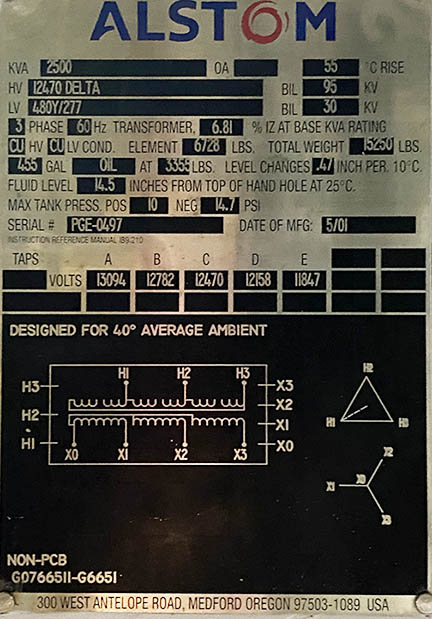

ONE (1) 2500 KVA ALSTOM SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS OA
55 DEGREE C RISE, 6.81% IMPEDANCE, SIDE X SIDE BUSHINGS IN FULL LENGTH
AIR TERMINAL CHAMBERS, COPPER WINDINGS, MFG. 2001, S/N PGE-0497
HIGH VOLTAGE: 12470 DELTA BIL: 95 KV
LOW VOLTAGE: 480Y/277 BIL: 30 KV
TAPS: 13094-12782-12470-12158-11847
TOTAL WEIGHT: 15,250 LBS.
CORE & COILS: 6,728 LBS.
TANK & FIT.: 5,167 LBS.
OIL: 3,355 LBS. (455 GALS.)
