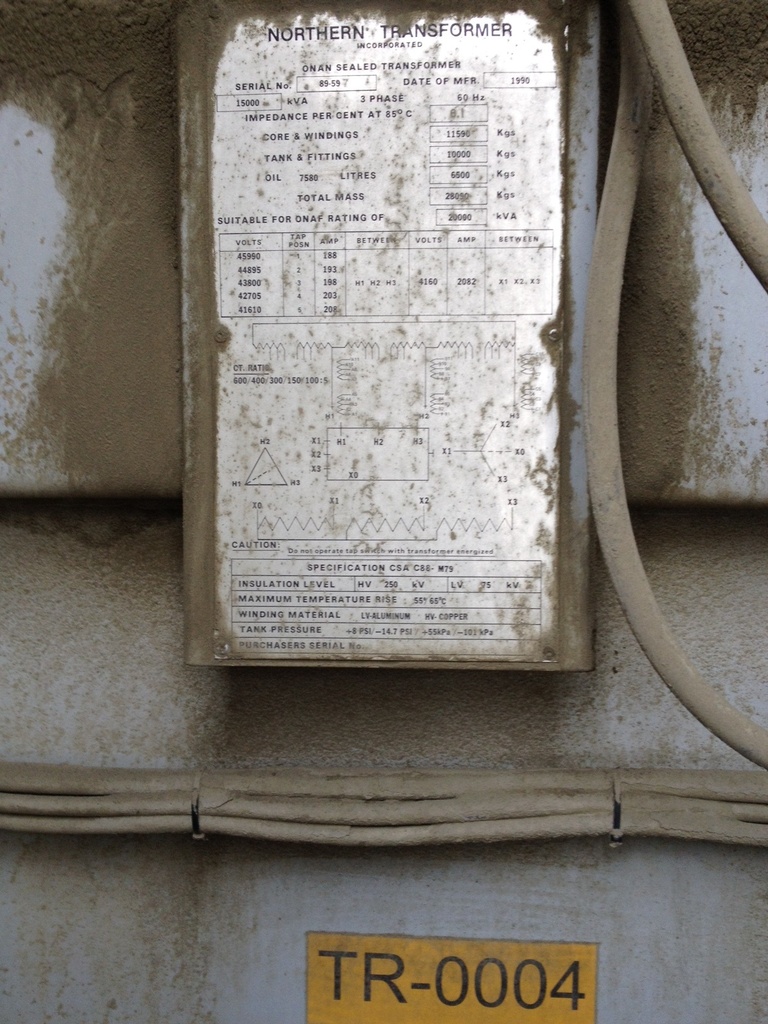

15000/20000 KVA, Pri 43800 D, Sec 4160 Y, 1990, NORTHERN, HV COPPER, LV ALUMINUM

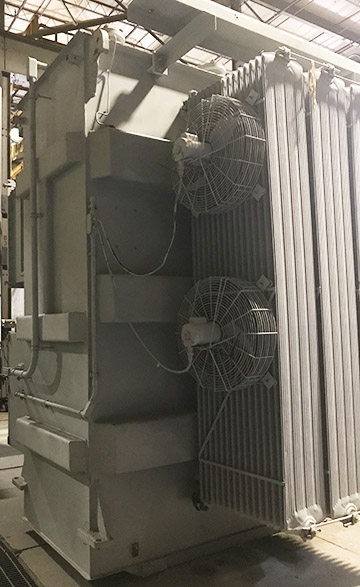

ONE (1) 15000/20000 KVA NORTHERN SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS ONAN/ONAF, 55/65 DEG. C RISE, 6.1% IMPEDANCE, HV - COPPER,
LV - ALUMINUM, 6 X 600:5 HV MRCT'S, MFG. 1990

HIGH VOLTAGE: 43800 DELTA BIL: 250 KV
LOW VOLTAGE: 4160 WYE BIL: 75 KV
TAPS: 45990-44895-43800-42705-41610

TOTAL WEIGHT: 28,090 KGS.
CORE & COILS: 11,590 KGS.
TANK & FIT.: 10,000 KGS.
OIL: 6,500 KGS. (7,580 LITRES)
