2500 KVA, Pri 480 D, Sec 208Y/120, OUTDOOR DRY TYPE:1
OUTDOOR DRY TYPE TRANSFORMER
Product Number:
042025
Full Product Description
ONE (1) 2500 KVA DRY TYPE TRANSFORMER
OUTDOOR ENCLOSED
3 PHASE
60 HERTZ
CLASS AA
150 DEG. C RISE
11.31% IMPEDANCE
AIR TERMINAL CHAMBERS ON EACH END

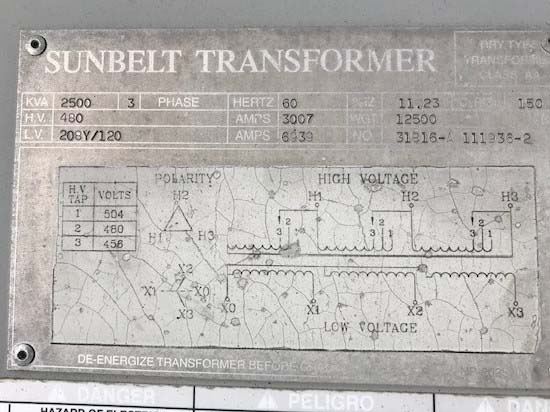

S/N 31816-A 111936-2
HIGH VOLTAGE: 480 DELTA
LOW VOLTAGE: 208Y/120
TAPS: 504-480-456
TOTAL WEIGHT: 12,500 LBS.
DIMENSIONS: 108"H X 128"L X 54"D

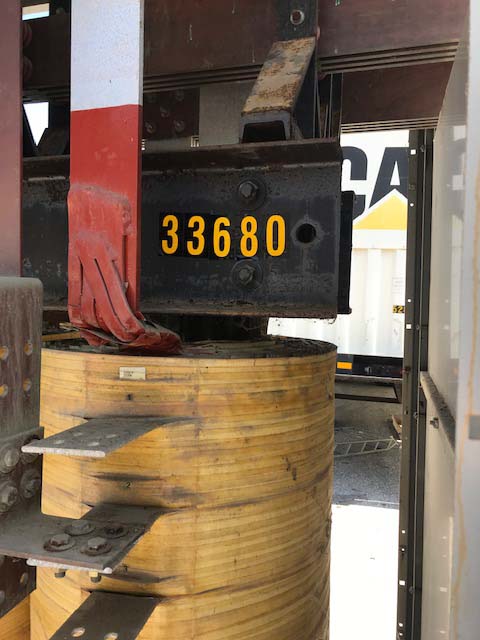

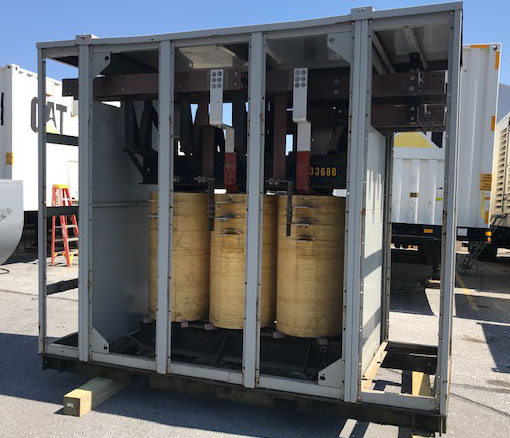

CORE & COILS: 98"H X 67 3/4"L X 39"D (TO TOP OF BUS)
