1500/2000 KVA, Pri 4160 D, Sec 2300 D, GE, ALUMINUM, INDOOR
INDOOR DRY TYPE TRANSFORMER
Product Number:
042023
Full Product Description
T-5826:

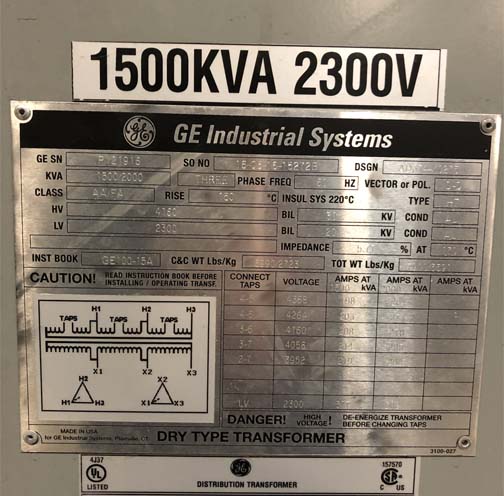

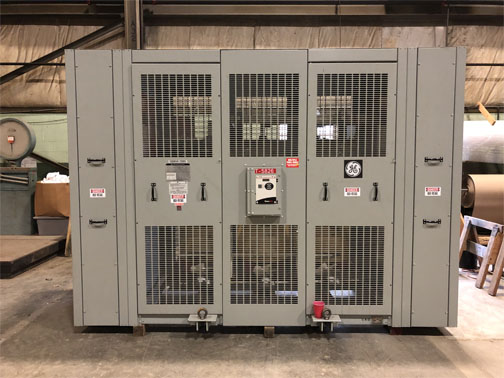

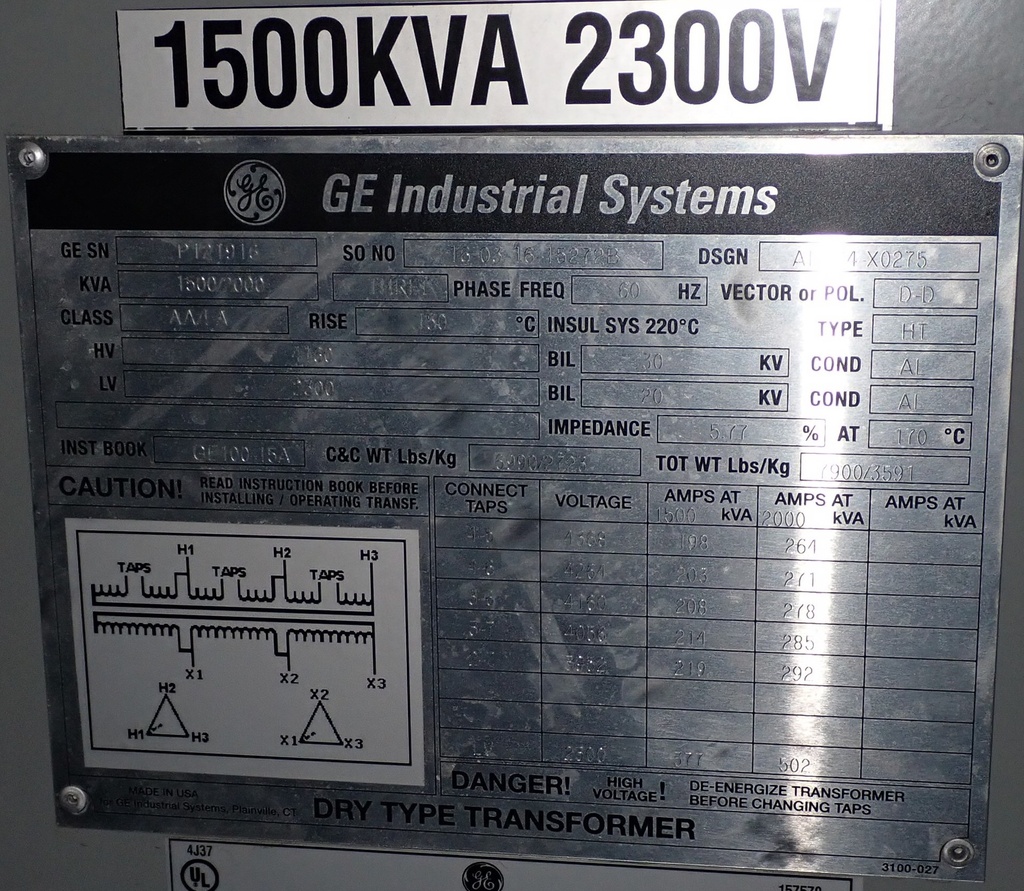

ONE (1) 1500/2000 KVA GENERAL ELECTRIC INDOOR DRY TYPE TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS AA/FA, 150 DEG. C RISE, 5.77% IMPEDANCE, ALUMINUM

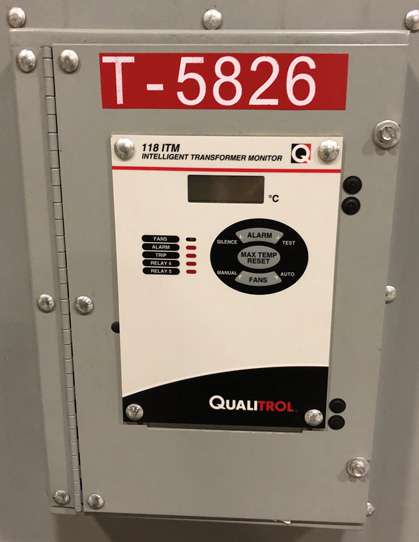

WINDINGS, QUALITROL 118 ITM INTELLIGENT TRANSFORMER MONITOR,
S/N P121916
HIGH VOLTAGE: 4160 DELTA BIL: 50 KV
LOW VOLTAGE: 2300 DELTA BIL: 20 KV
TAPS: 4368-4264-4160-4056-3952
TOTAL WEIGHT: 7,900 LBS.

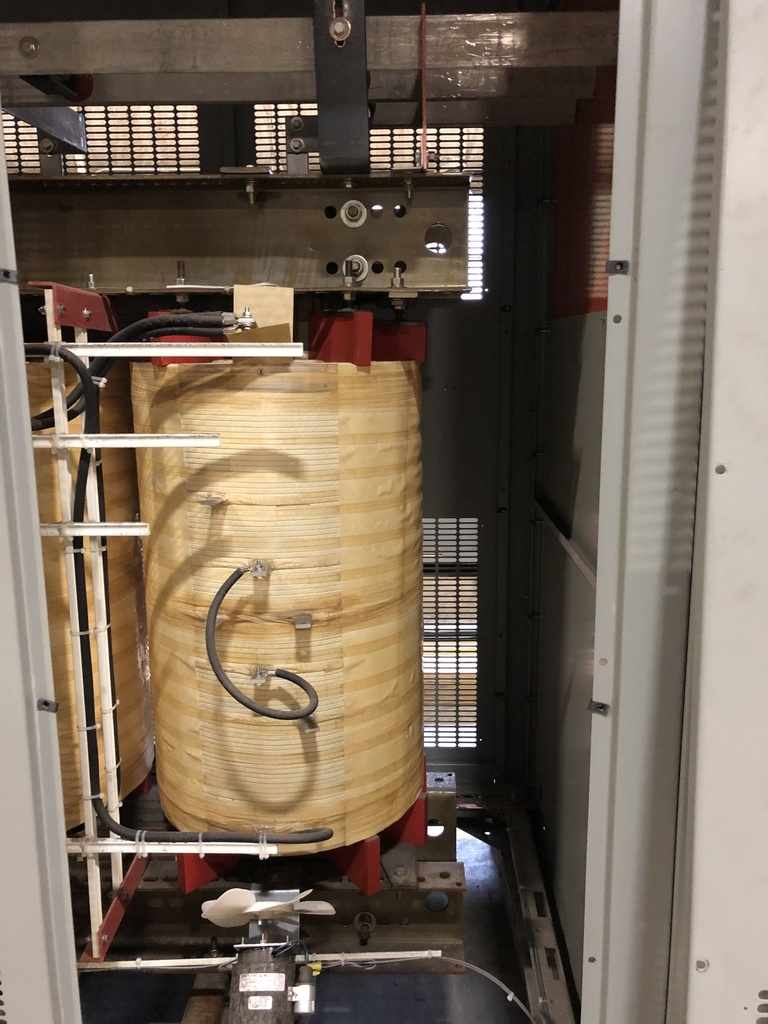

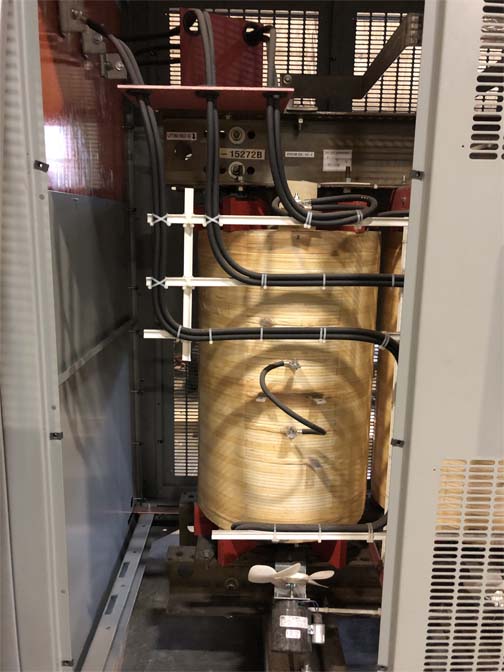

CORE & COILS: 6,990 LBS.
DIMENSIONS: 90 1/2"H X 126"L X 50"D
